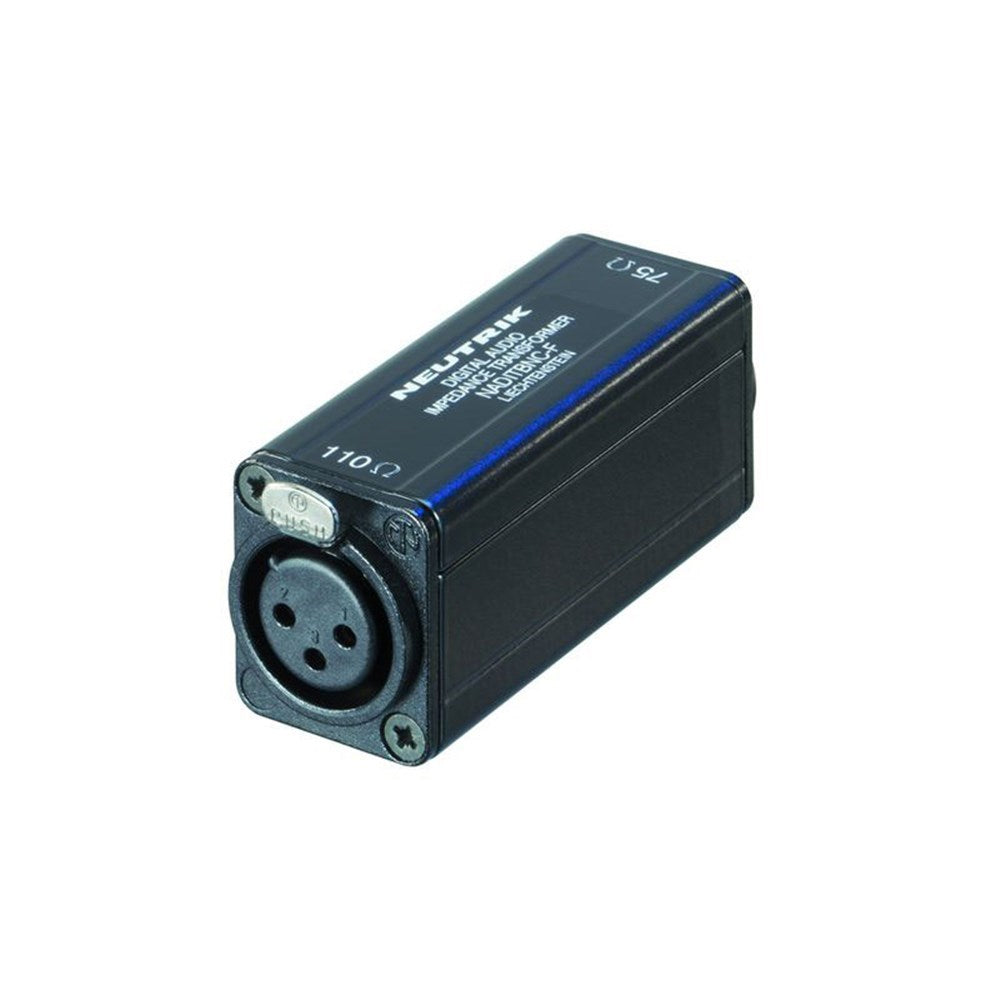

NADITBNC-F

Female XLR chassis connector 110 Ω input - female BNC 75 Ω output. Interface balanced and coaxial lines.

Features and Benefits

• Allow long cable runs for digital audio signals via low attenuation coax lines
• Match balanced to coaxial lines
• Match impedances 110 Ω to 75 Ω
• Simple to use, passive units.

Specifications

Product

Title

• NADITBNC-F

Connection Type

• Adapter

Gender

• female

Electrical

Frequencyrange

• 0.1 - 6 MHz

Rated voltage

• ≤ 5 V p-p

VSWR

• < 1.1

Return loss

• > 26.4 dB

Insertion Loss

• < 0.3 dB @ 0.1 MHz to 10 MHz
