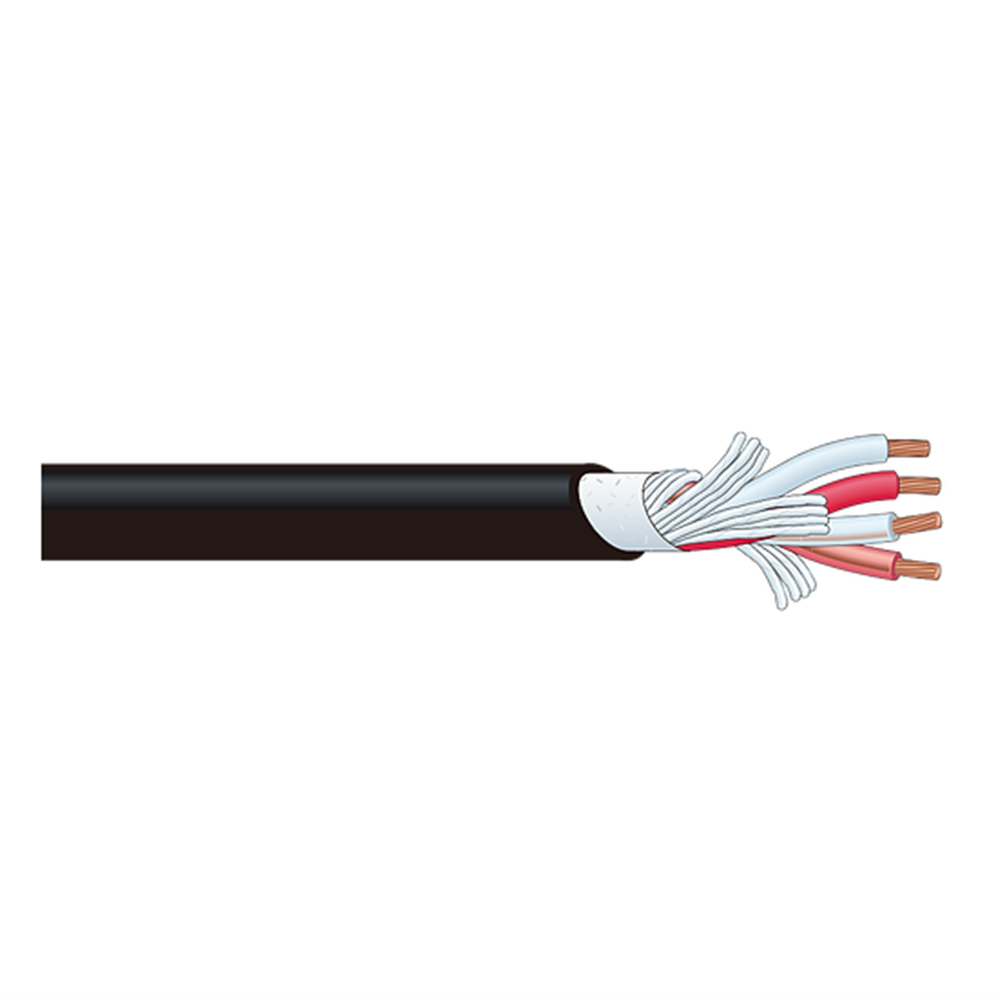

Canare 4S8 speaker cable black, 400m (4S8-BK400) — Roll of 400m
$2,852.00 AUD
Couldn't load pickup availability
Product Code: CA-4S8-BK400
Key Features:
- Super flexibility, even in sub-zero weather
- Star Quad design reduces EMI noise
- Low capacitance and resistance
- High-performance PVC jacket, resistant to bending and twisting
- 4S6 designed to fit the Cannon XLR with ease.
Applications:
- PA Systems
- Hi-Fi Speakers
- DC Power Lines
| Model | Std. Lng. ft. (m) |
Wt Std. Lng. lbs (kgs) |
Nom. O.D. in. (mm) |
PVC Jacket Nom. Thick. in. (mm) |
Brittle Point F° (C°) |
No. of Cond. |
Insul. Type* Thick mil |
Cond-AWG (Qty./mil) Cross Sec. Area mil.2 Twin Cond. AWG** |
Pitch of Quad in. (mm) |
Shield Cover- age |
| 4S8 | 328 (100) 656 (200) |
42 (19) |
.327 (8.3) |
|
-56 (-49) |
4 RED CLR RED WHT CLR WHT |
PE 19.7 |
AC-#16 (50/7.09) 1969 #13 |
<2.76 <70 |
- |
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.
**Effective AWG of combined twin conductors.
| Model | Cond. D.C.R. ohm/1000ft (ohm/100m) |
Shield D.C.R. ohm/1000ft (ohm/100m) |
Nom. Cap. *** pF/m |
Nom. Cap. † pF/m |
Nom. Imp. ohm |
Nom. Atten. V/1000ft (V/100m) |
Group Delay Time nS/ft (nS/m) |
| 4S8 | 4.5 (1.5) |
- | 145 | - | - | - | - |
***Capacitance between twin Red and twin White conductors.
†Capacitance between conductors to shield.
†Capacitance between conductors to shield.
| Model | Black | Blue | Brown | Gray | Green | Orange | Purple | Red | White | Yellow |
| 4S8 | [+] | - - | - - | [+] | - - | - - | - - | - - | - - | - - |
| Brands | Canare |
| Bulk Cable Type | Speaker 4 Core |
Sold as: Roll of 400m.
Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
