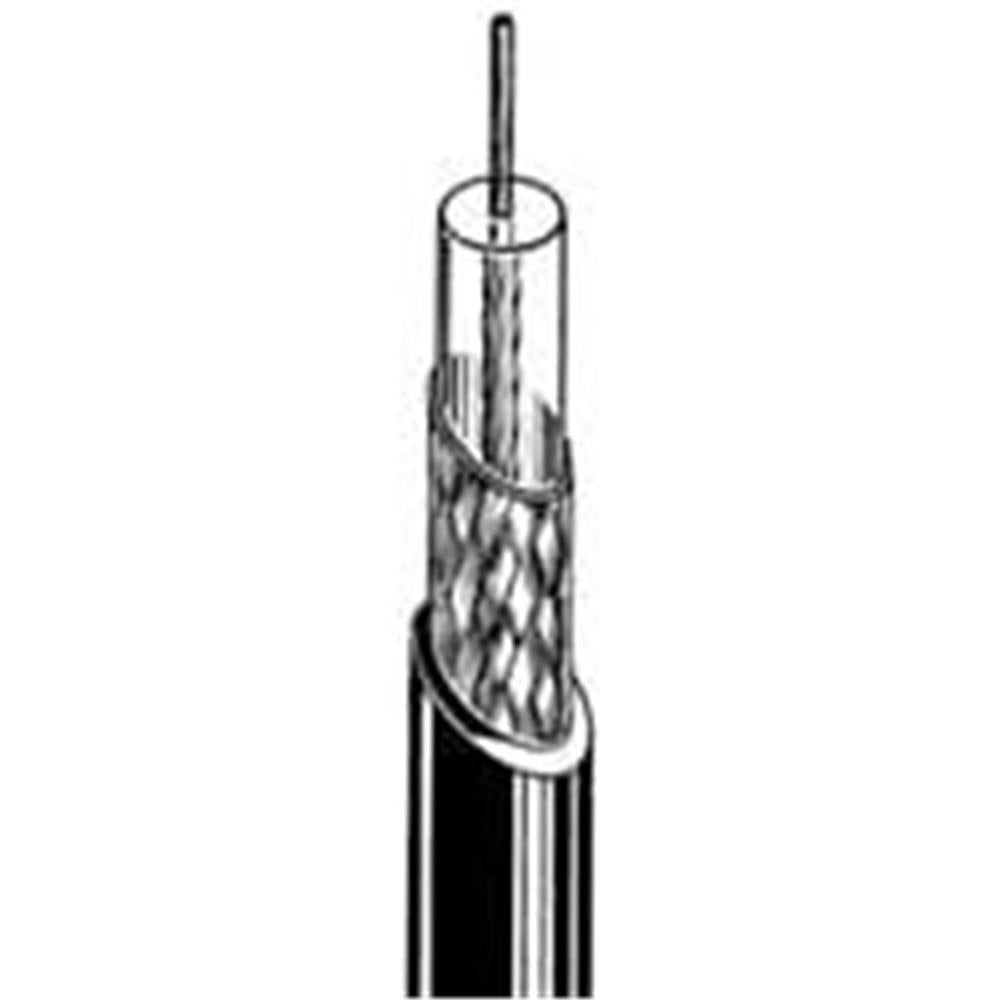

Canare CABLE VIDEO MINI COAX RED100 (L-3C2VS-R) — Rolls
$395.00 AUD
Couldn't load pickup availability
Product Code: CA-L-3C2VS-R
Our thinnest 75 ohm coax is both lightweight and super flexible, an ideal choice for all short run inter-rack wiring. This is the same cable type being used inside our RGB component video cable V-1.5C series.
? Broadcast Transmission.
? Analog and Digital.
? Inter-Rack Wiring.
? Video Patch Cords.
? Flexible Center Conductor: Stranded Bare Copper.
? Dielectric strips away clean from Conductor.
? Tightly Woven Braid Shield.
? Stays Flexible even in Sub-Zero Weather.
? Broadcast Transmission.
? Analog and Digital.
? Inter-Rack Wiring.
? Video Patch Cords.
? Flexible Center Conductor: Stranded Bare Copper.
? Dielectric strips away clean from Conductor.
? Tightly Woven Braid Shield.
? Stays Flexible even in Sub-Zero Weather.
| Model | Std. Lng. ft. (m) |
Nom. O.D. in (mm) |
Wt Std. Lng. lbs (kgs)/100m |
Inner Cond Conductor Comp. (AWG) Q'ty/mm |
Inner Cond O.D. in. (mm |
Insulation O.D. in. (mm) |
| *L-1.5C2VS | 328 (100) 656 (200) 500 (153) |
0.11 (2.9) |
2.87 (1.3) |
(31) 7/0.09A |
0.01 (0.27) |
0.06 (1.6) |
| L-3C2VS | 0.22 (5.5) |
9.92 (4.5) |
(25) 7/0.18A |
0.02 (0.54) |
0.12 (3.10) |
|
| LV-61S | 0.24 (6.1) |
11.02 (5.0) |
(24) 7/0.20A |
0.02 (0.60) |
0.14 (3.6) |
|
| L-5C2VS | 0.29 (7.4) |
14.99 (6.8) |
(22) 7/0.26A |
0.03 (0.78) |
0.18 (4.8) |
|
| L-3C2V | 0.21 (5.4) |
9.47 (4.3) |
(25) 1/0.50A |
0.02 (0.50) |
0.12 (3.1) |
|
| L-5C2V | 0.29 (7.4) |
15.87 (7.2) |
(21) 1/0.80A |
0.03 (0.80) |
0.19 (4.9) |
|
| LV-77S | 0.30 (7.7) |
19.84 (9.0) |
(22) 7/0.26A |
0.03 (0.78) |
0.19 (4.8) |
| Model | Outer Conductors Shield Coverage & Comp. |
Inner Cond. Resistance ohm/mile (ohm/km) |
Outer Cond. Resistance ohm/mile (ohm/km) |
Static Capacity (pF/m) |
Characteristic Impendence ohm |
Attenuation dB/100m(328ft) 10MHz) |
| *L-1.5C2VS | 0.10A/5/16 (94% or more) |
26.04 (41.9) |
1.99 (3.2) |
69 | 75 | 8.7 |
| L-3C2VS | 0.12A/7/16 (94% or more) |
6.52 (10.5) |
1.18 (1.9) |
67 | 75 | 4.5 |
| LV-61S | 0.12A/6/24 (95% or more) |
5.28 (8.5) |
0.80 (1.3) |
67 | 75 | 3.8 |
| L-5C2VS | 0.12A/7/24 (93% or more) |
3.10 (5.0) |
0.74 (1.2) |
67 | 75 | 2.9 |
| L-3C2V | 0.14TA/5/24 (97% or more) |
5.78 (9.3) |
0.74 (1.2) |
67 | 75 | 4.1 |
| L-5C2V | 0.14TA/7/24 (94% or more) |
2.24 (3.6) |
0.49 (0.8) |
67 | 75 | 2.5 |
| LV-77S | 0.12A/7/24(92% or more) 0.12A/8/24(95% or more) |
3.10 (5.0) |
0.34 (0.55) |
67 | 75 | 3.4 |
| Brands | Canare |
| Bulk Cable Type | Coax |
Sold as: Rolls.
