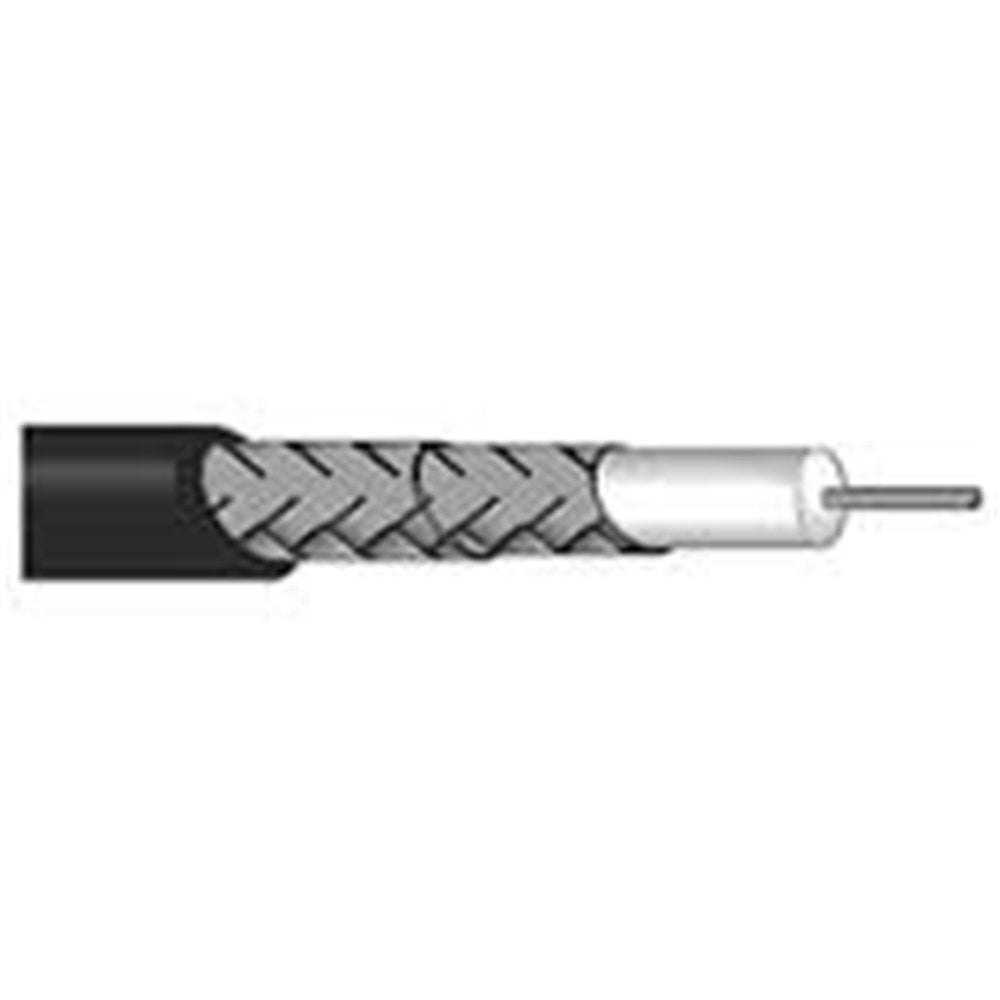

Canare L-2.5CHWS coax cable on cardboard drum 100m black (L-2.5CHWS-B1R) — Roll of 100m
$450.00 AUD
Couldn't load pickup availability
Product Code: CA-L-2.5CHWS-B1R
75 ohm Coaxial Cable Low Loss Coax For Mobile (Highly-Foamed / Foamed PE Insulation)
L-4.5CHWS, L-2.5CHWS
L-CHWS Series
● Flexible and durable: Best suited to mobile HD application.
● Designed for withstanding repeated bending.
● Stranded center conductor.
● High-density double-braided shield.
● Highly-foamed insulation.
Note: Cable stripper TS100E cannot be used.
Jacket: PVC dielectric strength: 1000V AC/min.
● Flexible and durable: Best suited to mobile HD application.
● Designed for withstanding repeated bending.
● Stranded center conductor.
● High-density double-braided shield.
● Highly-foamed insulation.
Note: Cable stripper TS100E cannot be used.
| Model | Std. Lng. ft. (m) |
Nom. O.D. in (mm) |
Wt Std. Lng. lbs (kgs)/100m |
Inner Cond Conductor Comp. (AWG) Q'ty/mm |
Inner Cond O.D. in. (mm) |
Insulation O.D. in. (mm) |
| L-4.5CHWS | 328 (100) 656 (200) |
0.280 (7.2) |
14.55 (6.6) |
(18) 7/0.34A |
0.04 (1.02) |
0.17 (4.57) |
| L-2.5CHWS | 0.165 (4.2) |
7.5 (3.2) |
(24) 7/0.20A |
0.02 (0.60) |
0.102 (2.6) |
| Model | Outer Conductors Shield Coverage & Comp. |
Inner Cond. Resistance ohm/mile (ohm/km) |
Outer Cond. Resistance ohm/mile (ohm/km) |
Static Capacity (pF/m) |
Characteristic Impendence ohm |
Attenuation dB/100m(328ft) 750MHz) |
| L-4.5CHWS | 0.10A/8/24(93% or more) 0.10A/9/24(95% or more) |
39.95 (32.70) |
10.88 (16.9) |
53 | 75 | 22.8 |
| L-2.5CHWS | 0.10A/8/16(95% or more) 0.10A/9/16(94% or more) |
- | - | 53 | 75 | 37.4 |
Jacket: PVC dielectric strength: 1000V AC/min.
| Brands | Canare |
| Bulk Cable Type | Coax |
Sold as: Roll of 100m.
Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
