Canare LV-61S 75ohm coax purple 153m (LV-61S-P) — Roll of 153m
$645.00 AUD
Couldn't load pickup availability
Product Code: CA-LV-61S-P

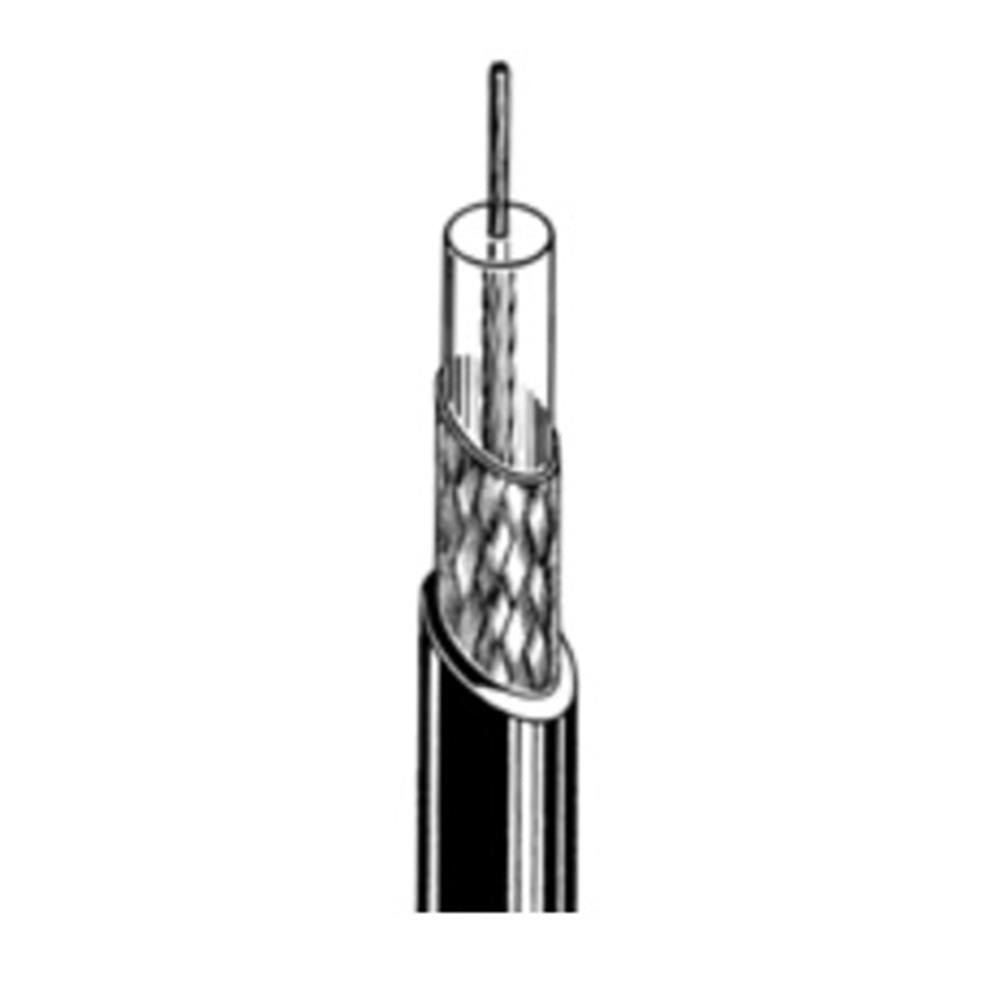

75 ohm Video Coaxial Cable (LV-61S) Purple
Canare’s No.1 Selling Coax. A lightweight, very flexible RG59B/U equivalent that is perfect for all video facility equipment interfacing, ENG/OB work and video patch cord assemblies. Our smooth non-glare finish PVC jackets are available in 10 distinctive colors (including Chroma-Key Blue!) and will stay flexible even in sub-zero weather!
- Broadcast Transmission.
- Analog and Digital.
- ENG/EFP.
- Inter-Rack Wiring.
- Video Patch Cords.
- Flexible Center Conductor: Stranded Bare Copper.
- Dielectric strips away clean from Conductor.
- Tightly Woven Braid Shield.
- Stays Flexible even in Subzero Weather.
- Available in 10 Colors.
| Model | LV-61S |
| Std. Lng. | 153m |
| Wt. Std. Lng | 8.6kgs |
| Nominal O.D. | 6.1mm |
| PVC Jacket Thickness | 1.0mm |
| Brittle Point | -30C° |
| Cond.-AWG (Qty./mil.) |
AC-#24 (7/7.88) |
| Cond. O.D. | 0.6mm |
| Dielectric Insulation Type* | PE |
| Insulation O.D. in. | 3.6mm |
| Shield Material Coverage | AC Braid >95% |
| Cond. D.C.R. | <8.5 (ohm/100m) |
| Shield D.C.R. | <1.3 (ohm/100m) |
| Nom. Cap. @1KHz | 67 (pF/m) |
| Nom. Imp. | 75 ohm |
| Nom. Attn. @10MHz | 4.2 (dB/100m) |
| Velocity of Prop. | 66% |
*Dielectric Strength = 1000V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
| Brands | Canare |
| Bulk Cable Type | Coax |
Sold as: Roll of 153m.
Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
