NAC3MM-1

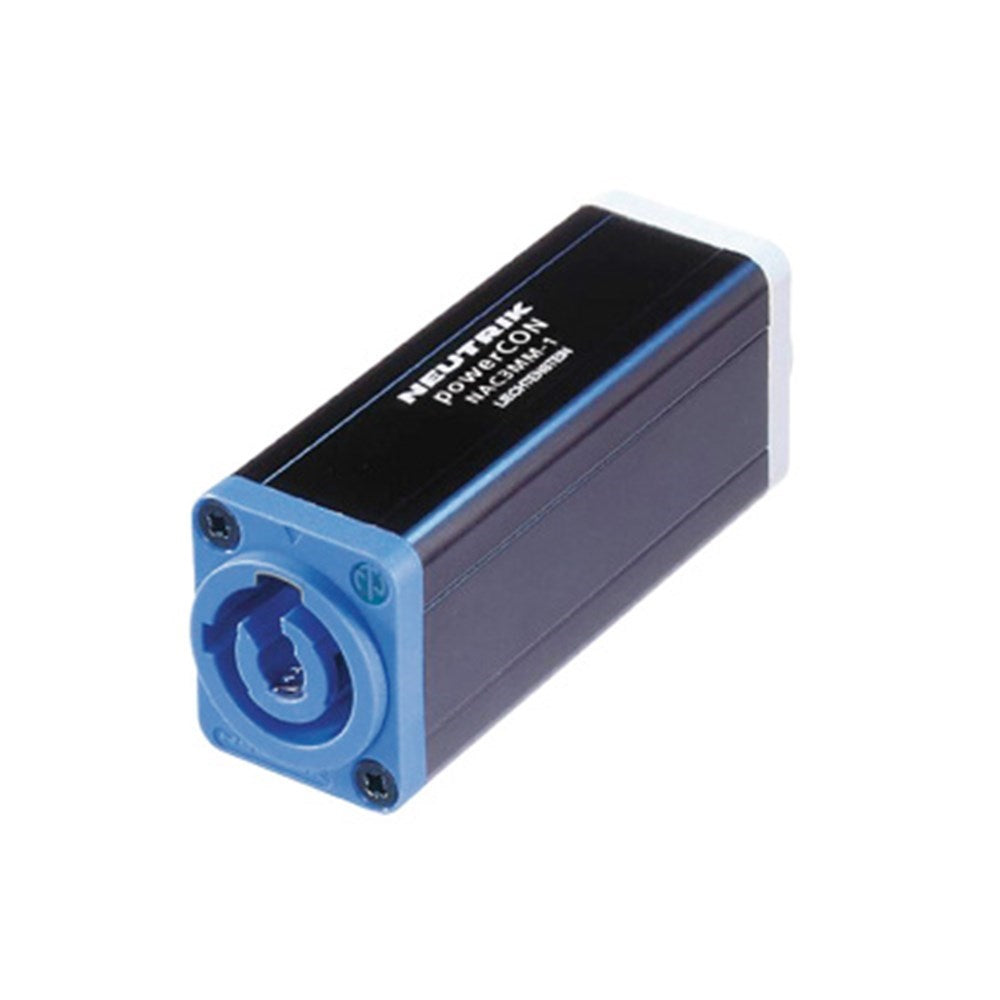

powerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables

powerCON 20 A

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Specifications

Product

Title

• NAC3MM-1

Connection Type

• Adapter

Gender

• male

Electrical

Contact resistance

• ≤ 3 mΩ

Dielectric strength

• 4 kVdc

Insulation resistance

• > 0.1 GΩ (after damp heat test IEC 68-2-30)

Rated current per contact

• 20 A rms

Rated voltage

• 250 V ac

Mechanical

Lifetime

• > 1000 mating cycles

Locking device

• Quick Lock

Material

Contact plating

• 2 µm Ag

Locking element

• Steel Ck67

Shell

• Polyamide (PA 6.6 30 % GR)

Contacts

• Bronze (CuNi1Si0.2)

Environmental

Flammability

• UL 94 V-0

Protection class

• IP 20 (mated)

Safety Requirements

• EN/IEC 61984

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C
