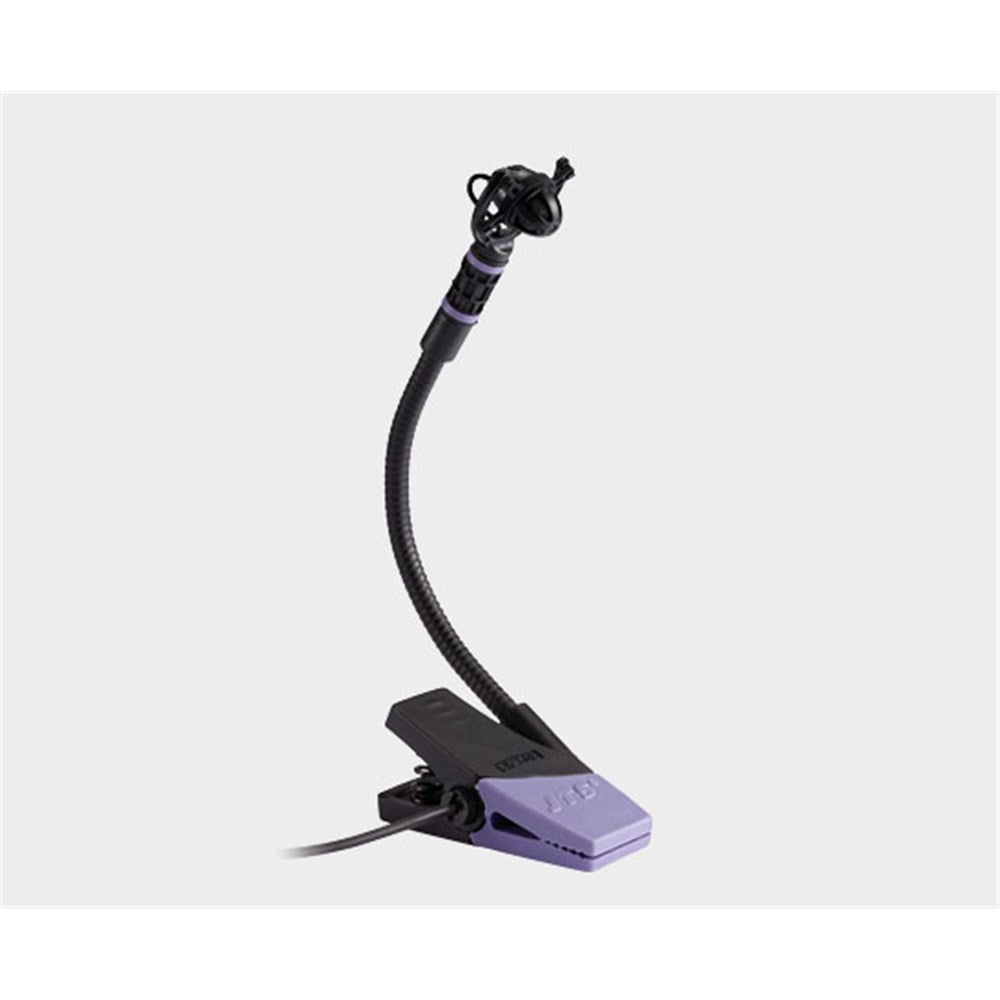

CX-508 Condensor clip-on winds mic 3-pin XLR

The CX-508 Miniature clip on condenser microphone is designed for the miking of brass and woodwind instruments. Its flat response with a slight presence peak in the upper frequencies ensures natural and bright reproduction without coloration.

• The lightweight miniature profile provides minimal physical size interference for the performer.
• Spring type clamp with elastic grip and adjustable gooseneck for secure mounting on the horn without scratching or marring delicate instrument finishes.
• Clip on design allows optimal placement position thereby eliminating the use of mic stands, reducing stage clutter and set up time.
• Outstanding for saxophone, brass, woodwind instruments.
• Extended frequency response and wide dynamic range for pure and natural sound without coloration.
• Excellent shock-mount design for superior isolation from shock and vibrations.
• Flexible gooseneck together with adjustable axis allows accurate positioning.
• Newly added spider suspension isolates unwanted mechanical vibration effectively.

SPECIFICATIONS

Type

• Electret Condenser

Frequency Response

• 50~18,000 Hz

Polar Pattern

• Cardioid

Sensitivity(at 1,000Hz)

• -64dB*(0.63mV)*
• 0dB=1V/μbar

Impedance

• 220Ω

Max. SPL for 1% T.H.D.

• 130 dB

Output Connector

• 3P XLR(M)

Phantom Power Requirements

• 9-52 VDC

Standard Accessories

• Windscreen
