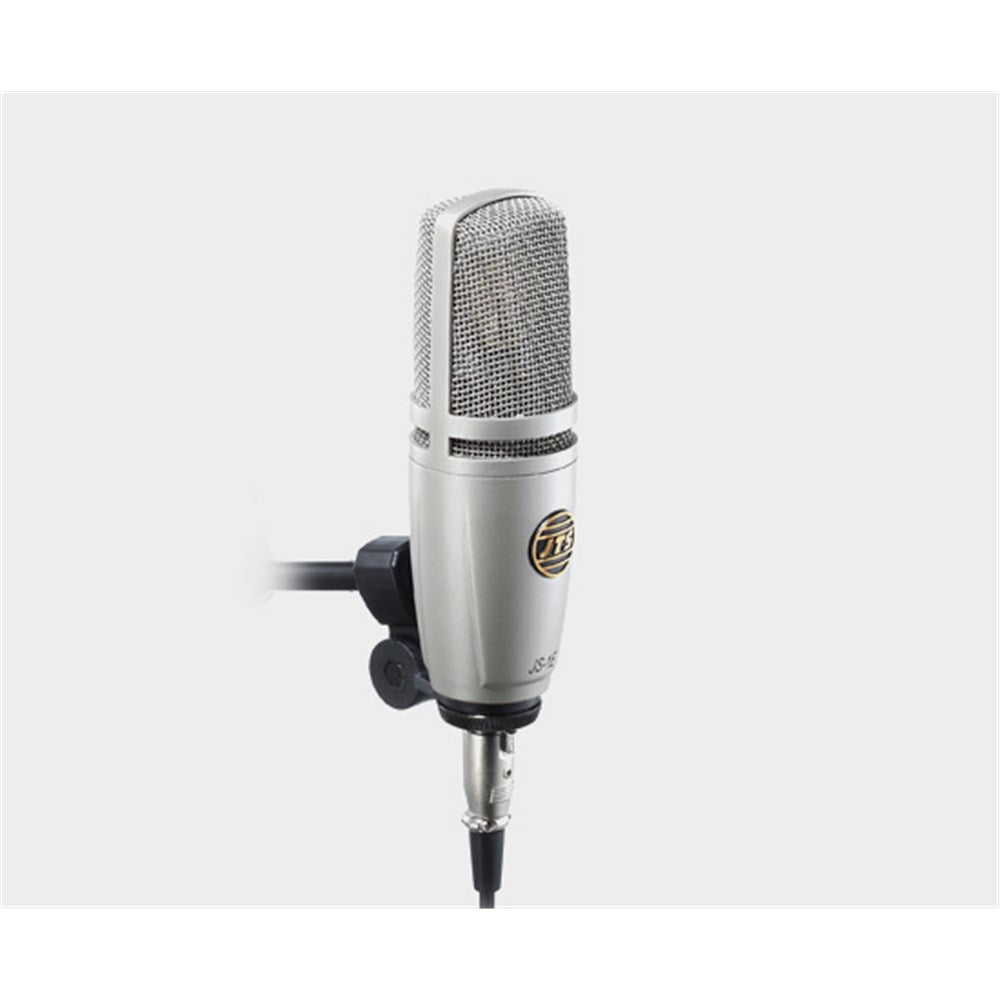

JS-1E

The JS-1E is an economic version of JS-1, but does not provide the PAD and LOW CUT function switches and circuitry of the JS-1 and does not include the spider type shock mount that is included with the JS-1.

SPECIFICATIONS

Type

• Large Diaphragm Condenser Mic

Frequency Response

• 20~20,000 Hz

Sensitivity(at 1000Hz)

• -38 dB* (12.6mV) 0dB=1V /Pa

Directional Pattern

• Cardioid

Impedance

• 200 Ω

Max. SPL For 1% T.H.D.

• 132 dB

Signal To Noise Ratio

• 78dB

Power Supply

• 36-52 VDC phantom power

Current Consumption

• ≤1mA

Output

• 3Pin XLR (M) (power module)

Net Weight

• 480 grams(16.9oz)

Dimensions(mm)

• Ø56mm(W)* 184mm(H)
