MA-XU

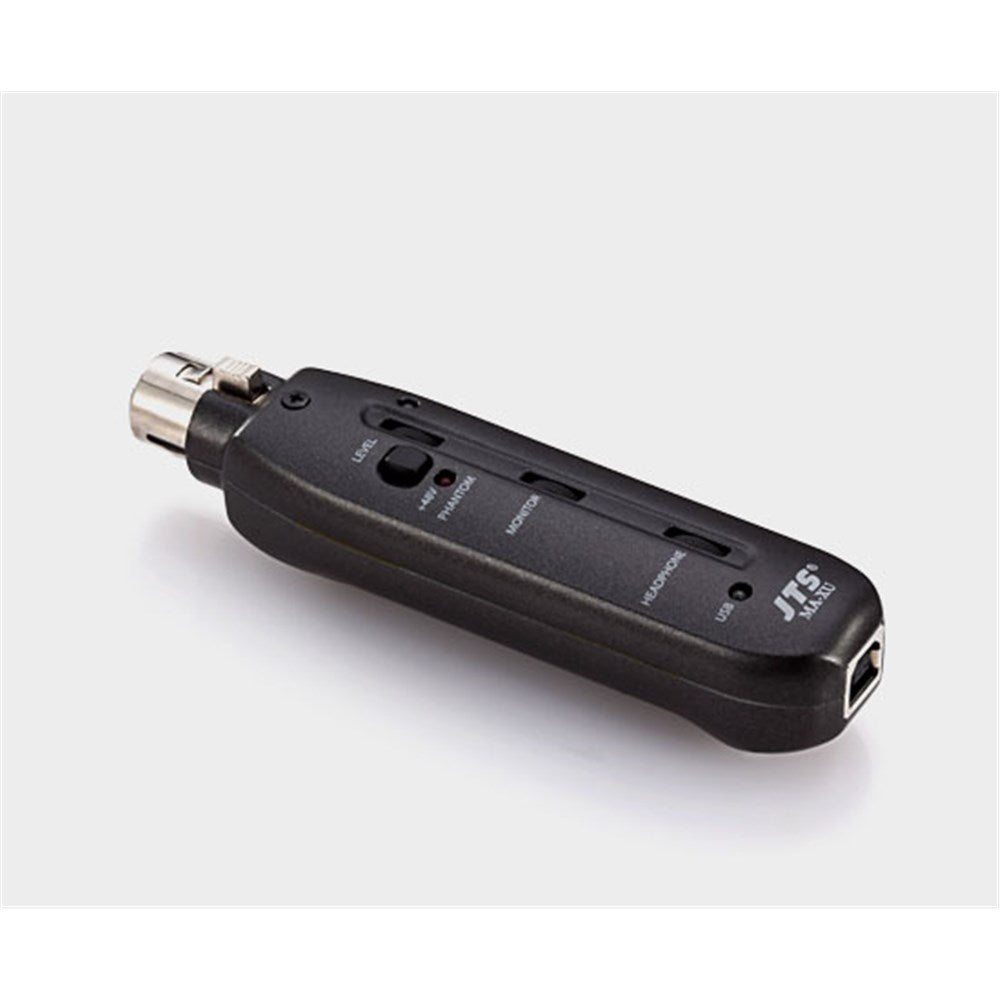

This XLR-to-USB adaptor can use all your dynamic or condenser microphones to digital record. Switchable phantom power is provided. The MA-XU features built in headphone monitoring with easy control of the balance between microphone and playback audio. The advanced technology renders the product latency free.

SPECIFICATIONS

Input

• XLR

Input Impedance

• 1.2KΩ

Input Gain Range

• 35dB

USB connector

• Digital audio interface

Headphone Jack

• 3.5mm
• Output:50mW (16Ω)

Indicator

• USB Blue
• Phantom RED
• Peak Level
• Green:Signal,Red,Peak

Phantom Power

• 48V±2V,15mA

Frequency Response

• 25~20000Hz

Power consumption

• 2.2W

Dimension (mm)

• 117*31*28mm

Weight

• 95g
