Bluetooth Direct Box With Isolated Outputs

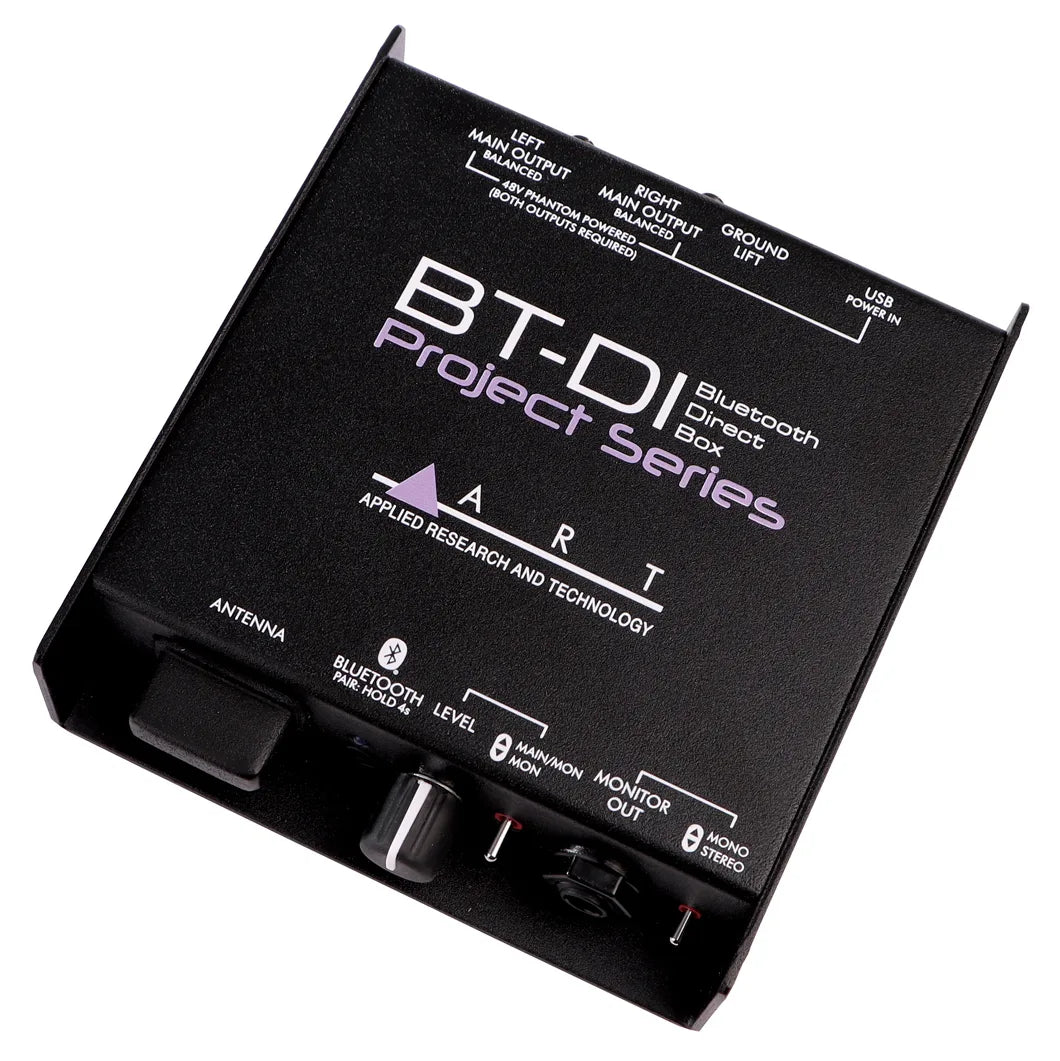

Make your professional audio devices Bluetooth compatible with the ART BT-DI, a rugged and flexible Bluetooth Audio DAC. The BT-DI is designed to provide a reliable Bluetooth interface from computers, phones, and legacy Bluetooth devices to any installation. Working as a remote extension of your mixer and mic outputs, the BT-DI utilises phantom power, so an external power supply is not required.

Bluetooth 5.0 receiver
External antenna for long-range operation
Transformer isolated XLR outputs
Headphone out
Selectable fixed/external USB supply OR Phantom Power
Headphone can be summed Mono
Compact rugged package, extruded chassis
Designed and developed in the USA

Specifications
Main Output Connections XLR (2) main output, transformer coupled, switchable ground.
Main Output Impedance 300 Ohms.
Maximum Output Level 30 dBu balanced Main output, 0 dBu Headphone output.
Signal to Noise Ratio -90dB unweighted typical.
THD <0.05% typical
Bluetooth Version 5.0, up to 50m, Class 2 device (BDR/EDR)
Supported Audio CODEC’s SBC, AAC
Power Requirements 5V USB (80ma) or +48V Phantom power w/both XLR’s
connected.
Dimensions (HxWxD 36 x 126 x 140 mm
Weight 0.91 kg
