Stereo 2-way/Mono 3-way Active Crossover

The ART CX310 is a perfect addition to any sound reinforcement system. Designed for PA and fixed-installation applications, the CX310 employs 24dB/ octave state-variable, fourth-order, Linkwitz-Riley filters. These filters guarantee in-phase outputs at all frequencies. This ensures the proper acoustic summing of common signals from adjacent drivers in the crossover region. Housed in a rugged all-steel chassis, the model CX310 will provide years of reliable and continuous service.

The CX310 may be used as either a stereo 2-way crossover network, splitting the signal in each channel into two separate frequency ranges (Lo and Hi), or as a mono 3-way crossover network, splitting one signal into three separate frequency ranges (Lo, Mid and Hi).

CX310 Highlights:

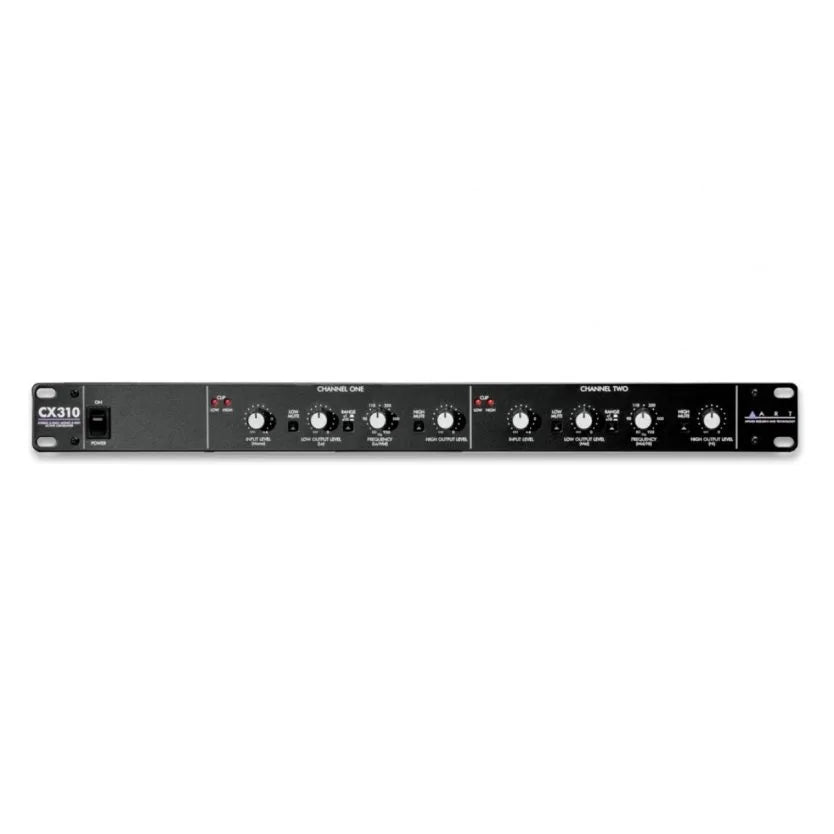

Each channel features input level, high and low output level and crossover frequency rotary controls
Frequency x10 switch provided for varying the crossover frequency from the standard 80Hz -920Hz to 800Hz – 9200Hz.
Front-panel output mute switches for each individual output to ease system setup.
Rear panel features balanced XLR and 1/4” TRS input and output connectors as well as a 2- way/ 3-way mode selector switch.
Power for the CX310 is internal

Features:
Stereo Two-Way or Mono Three-way Configurations
Fourth-Order Linkwitz-Riley Filters
Active Balanced XLR and 1/4″ TRS Input and Output Connectors
Individual Output Muting Switches
x10 Frequency Range Adjusting Switch
Clipping Indicators on all Outputs
Designed for Years of continuous, reliable performance
Rugged all-steel Construction
Specifications:
Input Connections XLR, 1/4” TRS, balanced
Output Connections XLR, 1/4” TRS, balanced
Frequency Response 10Hz to 20kHz, +0/-1.5dB
Crossover Frequency Range x1 position 80Hz to 920Hz
Crossover Frequency Range x10 position 800Hz to 9.2kHz
Crossover Filter Type Fourth-order Linkwitz-Riley, 24dB/octave
Dynamic Range 118dB
Signal to Noise Ratio >85dB
Input Impedance 20k Ohms
Output Impedance 150 Ohms
Maximum Input Level +13dBu
Maximum Output Level +21dBu
Total Harmonic Distortion (THD) <0.05% (20Hz-20kHz)
Power Requirements configured for country of destination
Dimensions (HWD) Weight 44mm x 483mm x 165mm / 3.2 kg
