Classic PWM Limiter

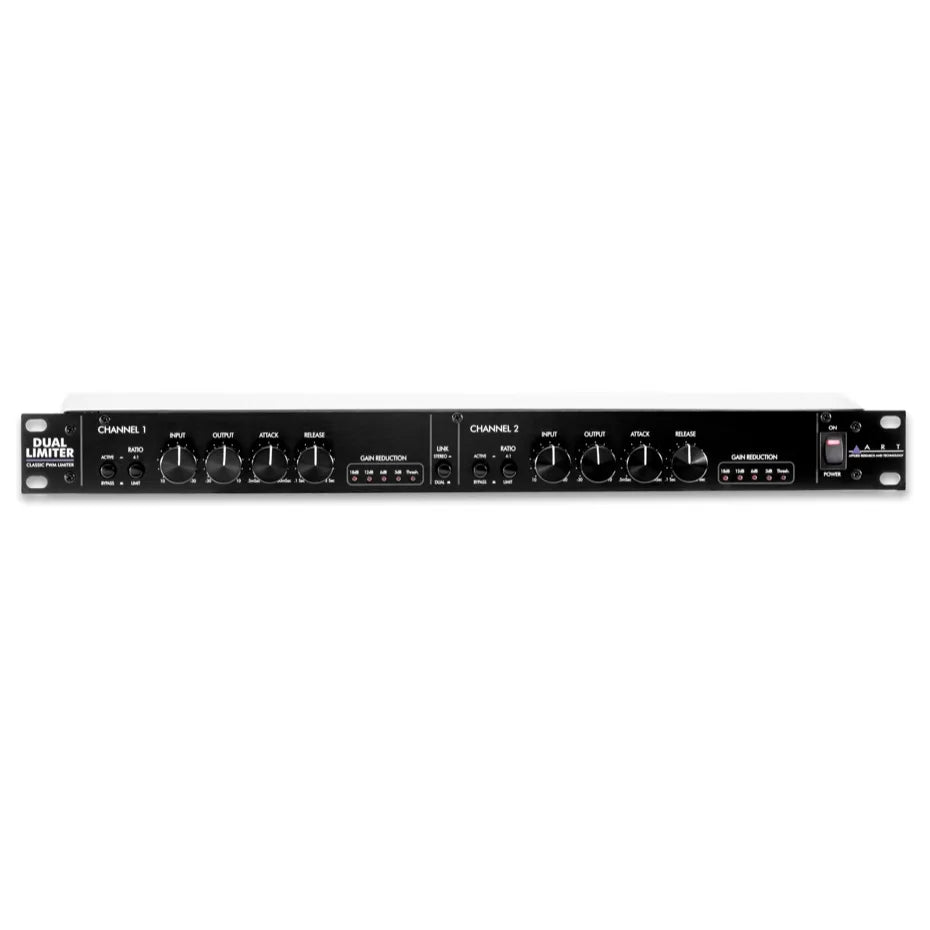

The DUAL LIMITER has a unique design that will enhance the sonic textures of your audio system for years to come. Developed in partnership with studio and live-sound engineers, the DUAL LIMITER is very musical.

The heart of the Dual Limiter is a unique PWM gain control circuit. Combined with its’ intelligent detector, the result is a Cl​assic sounding compressor/ limiter without the traditional noise and distortion artifacts.

Features:
Two channels of dynamics processing
Selectable stereo linking of channels
XLR balanced inputs and outputs
1/4″ TRS active balanced inputs and outputs
Variable Attack and Release controls
Selectable Slope
Hardwire bypass
5-segment Gain Reduction LED array
Internal power supply
Specifications:
Equivalent Input Noise -97dBu (20-20kHz)
Input Impedance 20k Ohms
Output Impedance Balanced/Unbalanced – 150 Ohms
Maximum Input Level +20dBu
Maximum Output Level +20dBu
Overall Gain +40dB max
Frequency Response 10Hz to 30kHz (+/- 1dB)
Dynamic Range >105dB (20-20kHz)
Attack Time 0.5mSec. to 50mSec., variable
Release Time 100mSec. to 3 Sec., variable
Slope 4:1 or >20:1, switchable (OR 2:1 or 1.5:1 when patching output to det. loop input)
Total Harmonic Distortion 0.03% (typical) @ 0dBm Out
Power Requirements USA – 105 to 125 VAC / 60 Hz, 1/2A fuse, <15W
Export units configured for country of destination.
Dimensions 44.5mm x 482.6mm x 150mm
Weight 2.1 kg
