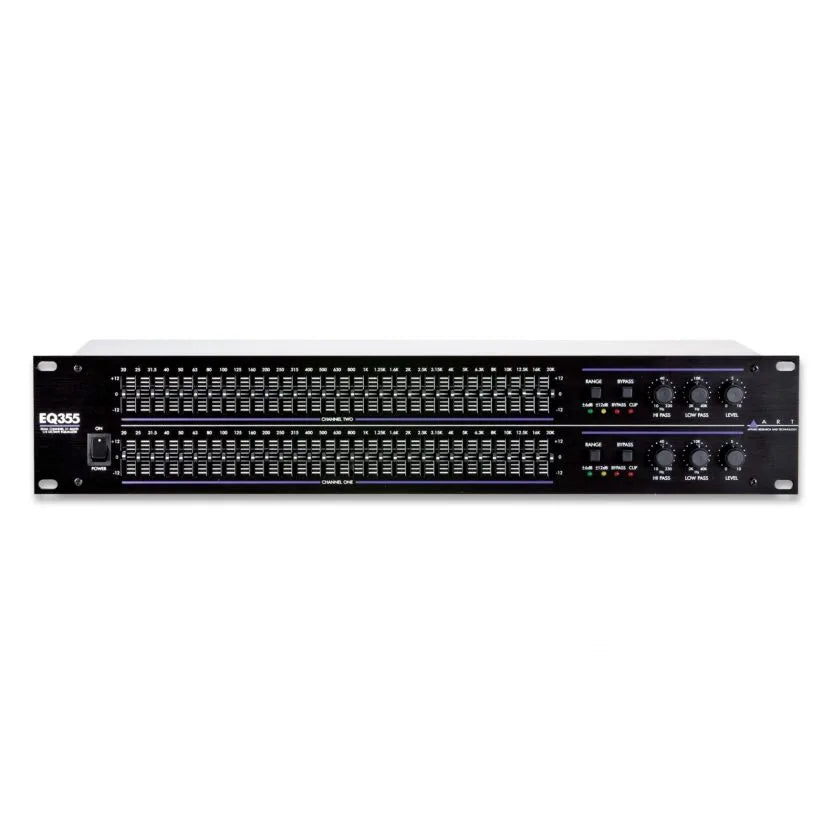

Dual 31-band EQ

The ART EQ300 Series of graphic equalizers have been designed and engineered to extremely high standards for audio performance and functionality. These innovative, high-quality equalizers are perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design and extremely silent processing is important. Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.

Features:
Dual Channel 31-Band Graphic Equalizer
Constant-Q Filtering
Balanced XLR, Active Balanced 1/4″, and Unbalanced RCA Input and Output Connectors
Variable High-Pass and Low-Pass Filters
+/- 6dB or +/-12dB Level Adjustments
20mm Center Detented Frequency Band Sliders
Independent Level and Bypass Controls Per Channel
Designed for Years of continuous, reliable performance
Rugged All Steel Construction
One Year Warranty
Specifications:
Filter Type Constant Q – 3% center accuracy
Frequency Bands 31, 1/3 octave, ISO spacing
Frequency Response 20Hz to 20kHz, +0.5dB
High Pass Filter 10Hz to 250Hz, 12dB/oct
Input Impedance 20k Ω (bal), 15k Ω (unbal)
Input/Output Connections Active balanced XLR and 1/4″ TRS {XLR pin 2, 1/4″ tip = Hot (+)} Unbalanced RCA
Low Pass Filter 3kHz to 40kHz, 12dB/oct
Maximum Input Level +22dBm
Maximum Output Level +18dBm (bal), +22dBm (unbal)
Power (Switchable) 95-130VAC, 50/60Hz, 22 W (USA)
Range +/-6dB or +/-12dB selectable
Signal to Noise Ratio -94dB
Slider Travel 20mm w/ positive centre detent
Total Harmonic Distortion 0.0001
Warranty One Year
Dimensions 3.5″H x 19″ W x 8.5″ D
Weight 4.1kg
