8-Channel Stereo Mixer with Effects Loop

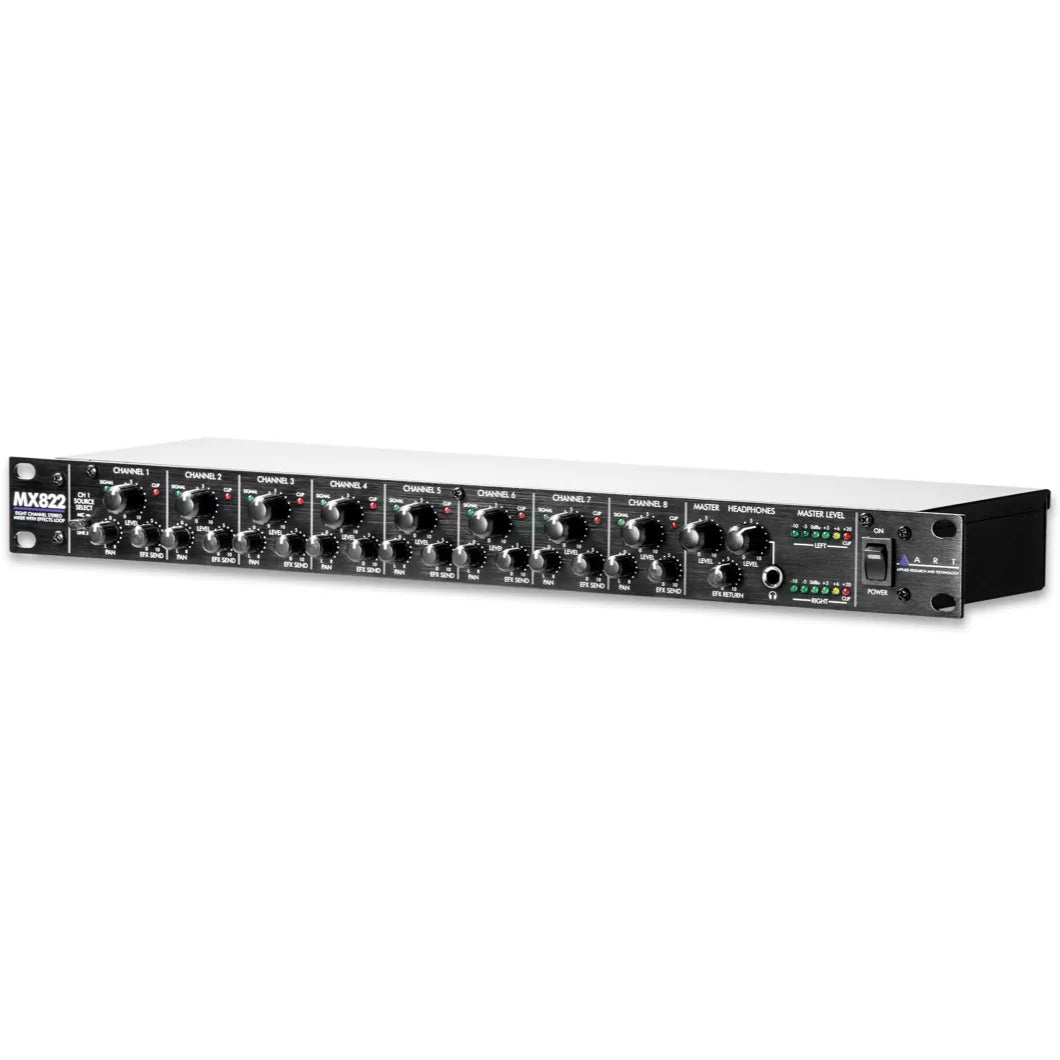

The MX822 Eight Channel Stereo Rackmount Mixer​ is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

Features:
Eight stereo/mono input channels with individual level, pan and effects send controls
External effects loop with independent send and return controls
Front panel 1/4-inch stereo headphone jack with amplifier and independent level control for output monitoring
Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
Switchable low noise +48V phantom power for microphone input
Separate green and red LED signal and clip indicators for each input channel
Six level left and right main output metering including clip indicators
Balanced left and right XLR main outputs
Multiple units may be chained together for additional inputs
Rugged 1U rack mount steel case
Specifications:
Input Connections XLR-F balanced (MIC)
1/4″ TRS unbalanced (Ch1-Ch8, Effects Return)
1/4″ TRS stereo unbalanced (EFX Buss, Main Expand)
Output Connections XLR-M balanced (Main)
1/4″ TRS unbalanced (Effectss Send)
1/4″ TRS stereo unbalanced (Monitor, Main Expand, Headphone)
Input Impedance 1k Ω (MIC), 5k Ω (Ch1-Ch8)
Output Impedance <1k Ω (Main, balanced), <25 Ω (Headphone)
Total Harmonic Distortion <0.01% @ 1kHz
Signal to Noise Ratio > 90dB typical (Ref 0dBu)
Maximum Input Level -19dBu (MIC), +24dBu (Ch1-8)
Maximum Output Level +24dBu (Main), +18dBu (Monitor, Effects Send)
Maximum Gain +60dB (MIC), +14dB (Ch1-8)
Phantom Power Switch Selectable, +48V DC, filtered, current limited
Power Requirements Export units configured for country of destination
Dimensions 44.5mm x 483mm x 152mm
Weight 2.95 kg
