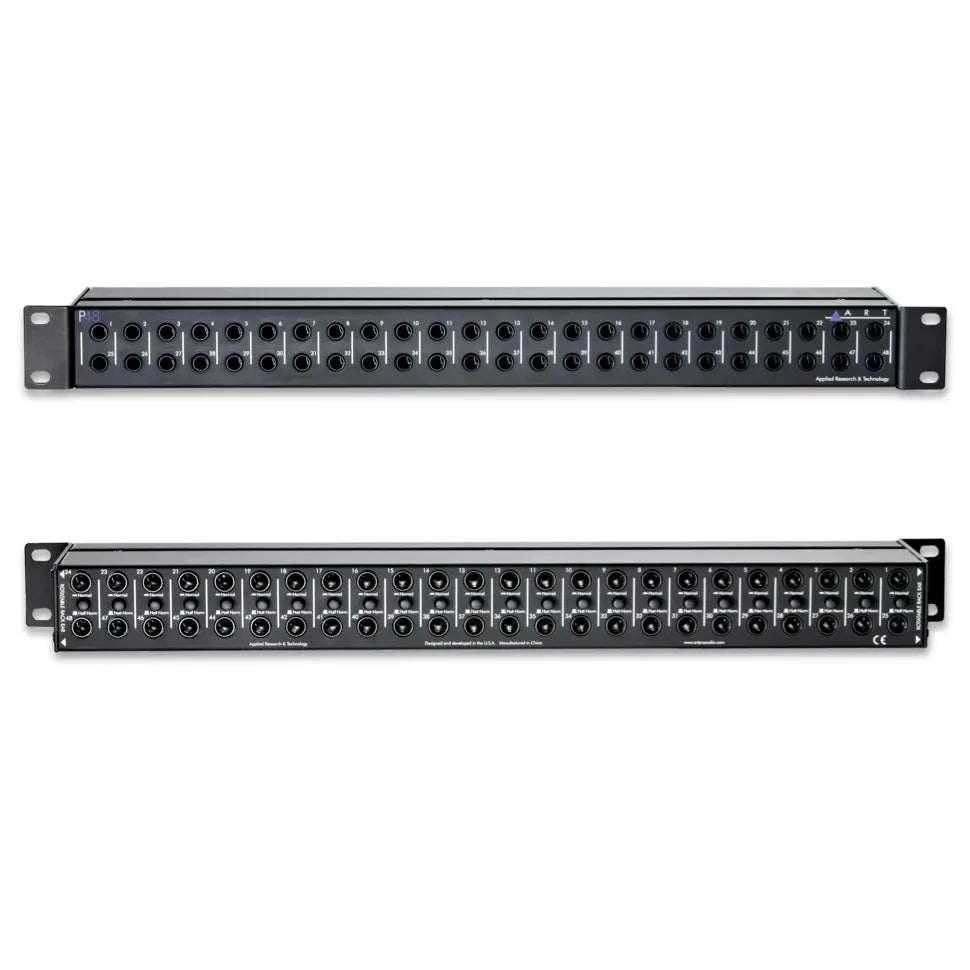

48 Point Balanced Patch Bay

The ART P48 48-point balanced patchbay is the best solution for organising cables while optimising connectivity in any studio or live PA rack. Designed for maximum convenience, each pair of TRS 1/4-inch balanced I/O can be configured for normal or half-normal operation.

The fully shielded steel 19-inch 1U rackmount chassis has reversible rack ears for maximum flexibility.

Features:

48 points of balanced direct signals, 24 channels of linked input/output pairs
Switchable half normal and normal modes of operation (with through type connections)
High quality passive interface
1/4″ TRS phone jack connectors
3-year warranty

Specifications:
Connectors 1/4-inch TRS Balanced Phone Jacks
CMRR Better than -90 dB (-95 dB typical)
Channel to Channel Isolation Better than -80 dB (-95 dB typical)
Enclosure Steel 1U high, 19-inch rack mount
Dimensions 44mm x 483mm x 89mm
Weight 2.0 kg
