3-Channel Mic-Instrument-Line Mixer/Computer Interface

Overview

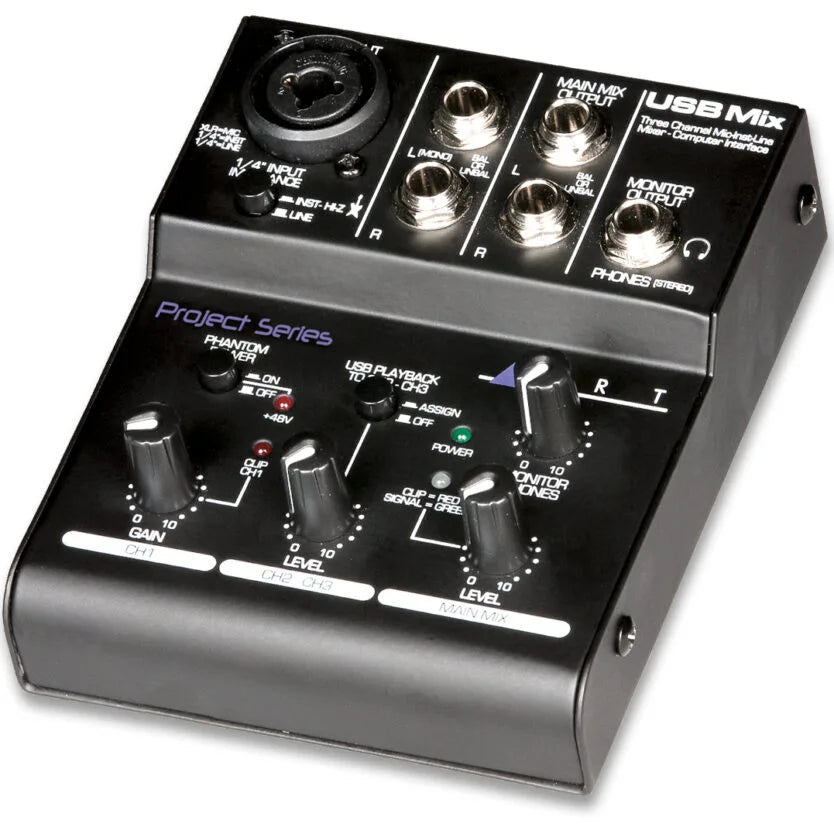

The USB Mix is a 3-Channel Microphone, Instrument, and Line Mixer / Computer Interface – a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB Audio.

The USB Mix provides a great starting point for personal home studio recording or podcasting, or for anyone wanting to do mobile location recording. Connect a microphone and stereo instrument or other audio source, and record to your computer software.

The simple controls allow the user to record voice or instrument to computer, stereo or mono, then with a USB playback switch, add voiceover or solo instrument to a previous audio mix.

USB powered, no external power supply needed when used with a computer
Microphone (balanced XLR) input or instrument (unbalanced 1/4″ TS) input with switchable impedance
Switchable low noise +48V phantom power for microphone
Balanced 1/4″ TRS inputs for stereo or mono line-level sources
1/4″ TRS output jacks work with balanced or unbalanced lines
Stereo 1/4″ TRS headphone jack with independent level control for output monitoring
Independent controls for both sets of inputs, main output, and headphone monitor
Green/Red LED signal/clip indicator
Switchable assignment of USB playback to channels 2 and 3
USB 2.0 compliant
No special drivers needed with most modern versions of Windows, Mac OS, and Linux
USB cable and AC adapter included
Rugged steel case
