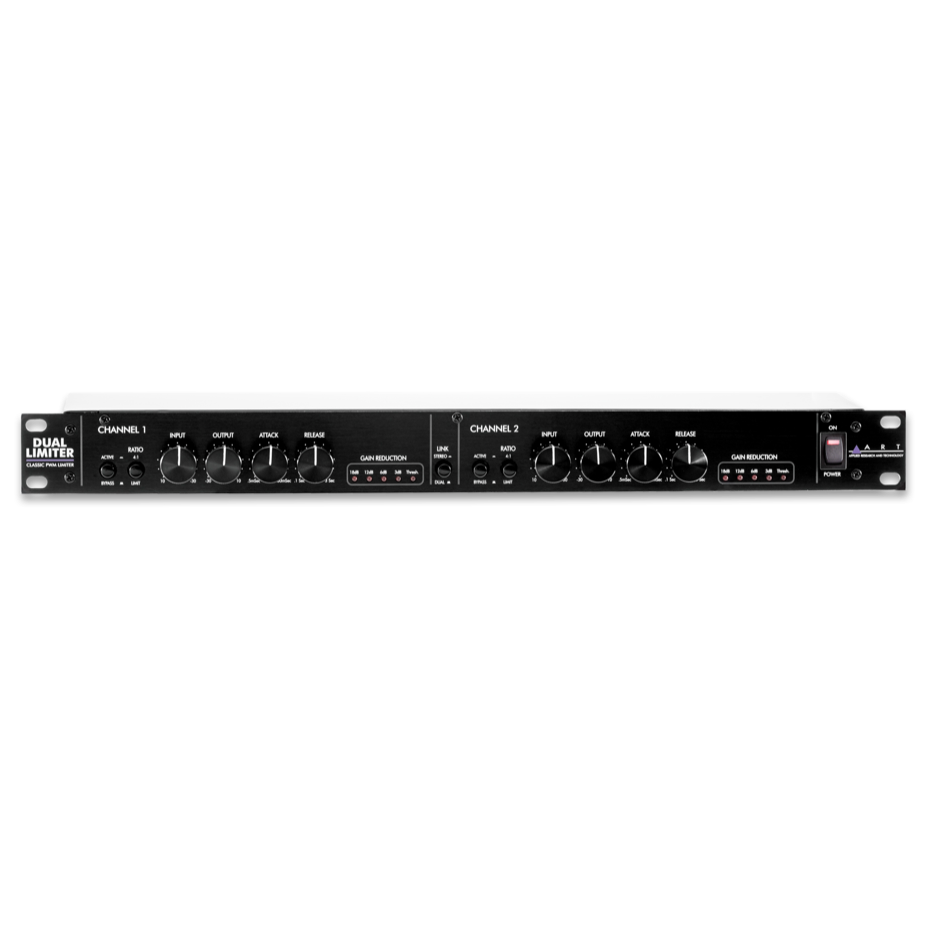

Art Pro Audio Dual Limiter Classic Pwm

Art Pro Audio Dual Limiter Classic Pwm

ART Pro Audio
Sale!
$435.00 AUD
\n
\n
\n \nThe DUAL LIMITER has a unique design that will enhance the sonic textures of your audio system for years to come. Developed in partnership with studio and live-sound engineers, the DUAL LIMITER is very musical. \n \nThe heart of the Dual Limiter is a unique PWM gain control circuit. Combined with its’ intelligent detector, the result is a Cl?assic sounding compressor/ limiter without the traditional noise and distortion artifacts. \n \n
\n \n

Features:

\n
    \n
  • Two channels of dynamics processing
    • \n
  • Selectable stereo linking of channels
    • \n
  • XLR balanced inputs and outputs
    • \n
  • 1/4? TRS active balanced inputs and outputs
    • \n
  • Variable Attack and Release controls
    • \n
  • Selectable Slope
    • \n
  • Hardwire bypass
    • \n
  • 5-segment Gain Reduction LED array
    • \n
  • Internal power supply
    • \n
\n

Specifications:

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Equivalent Input Noise-97dBu (20-20kHz)
Input Impedance20k Ohms
Output ImpedanceBalanced/Unbalanced – 150 Ohms
Maximum Input Level+20dBu
Maximum Output Level+20dBu
Overall Gain+40dB max
Frequency Response10Hz to 30kHz (+/- 1dB)
Dynamic Range>105dB (20-20kHz)
Attack Time0.5mSec. to 50mSec., variable
Release Time100mSec. to 3 Sec., variable
Slope4:1 or >20:1, switchable (OR 2:1 or 1.5:1 when patching output to det. loop input)
Total Harmonic Distortion0.03% (typical) @ 0dBm Out
Power RequirementsUSA – 105 to 125 VAC / 60 Hz, 1/2A fuse, <15W \nExport units configured for country of destination.
Dimensions44.5mm x 482.6mm x 150mm
Weight2.1 kg
