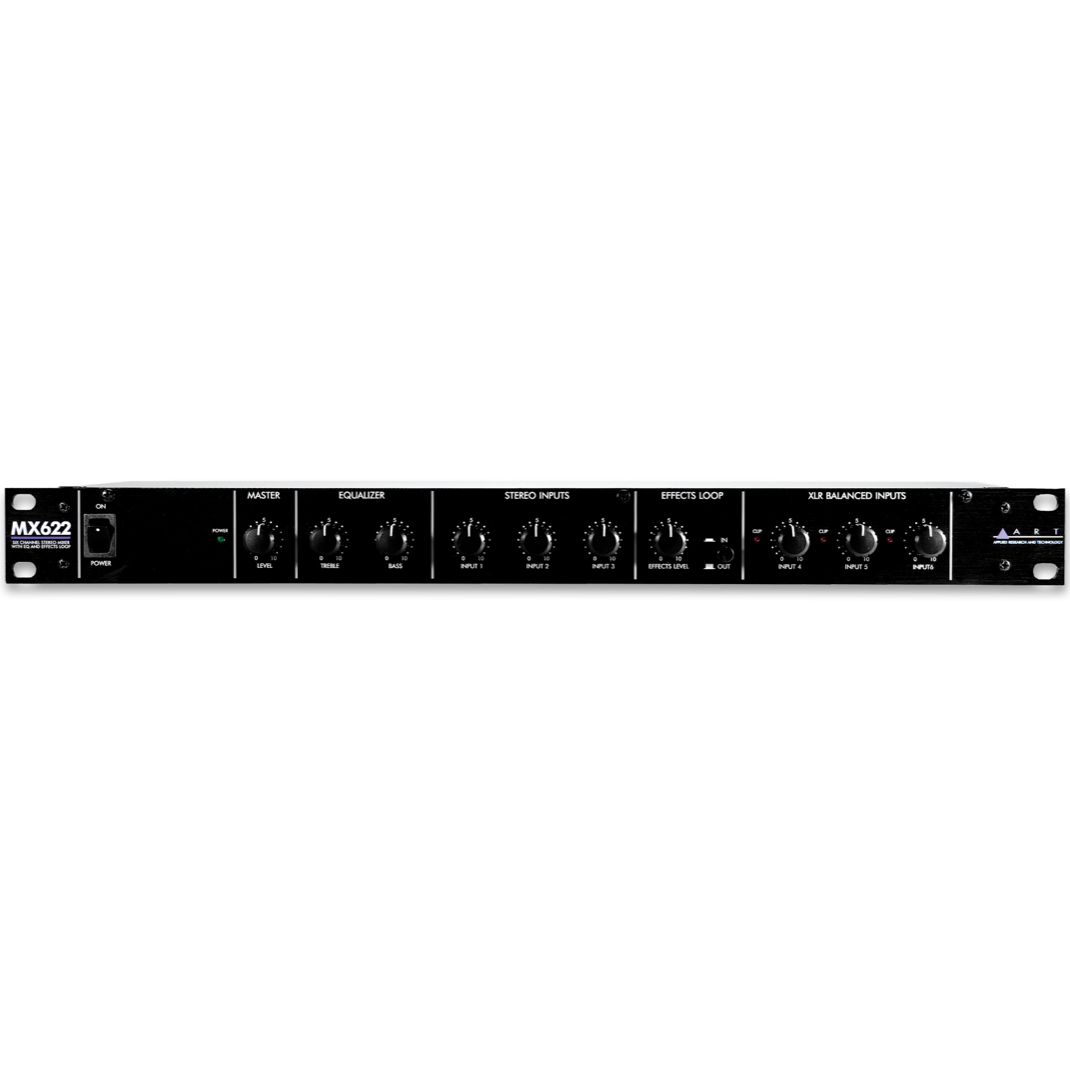

\n \nThe MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation. \n \n \n

Features:

\n

\n
• Three Balanced XLR Inputs Switchable Mic/Line Level
\n
• Three Stereo RCA Inputs with Separate Level Controls
\n
• Level Control and Clip Indicators
\n
• Selectable 15-volt Phantom Power for Mic Channels
\n
• Balanced TRS 1/4-inch Main Output Jacks with Master Level Control
\n
• Versatile Two-Band Master EQ
\n
• Separate Stereo Record Outputs
\n
• Effects Loop with Level Independent Level Control
\n

\n

Specifications:

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input Connections	XLR-F balanced (x3) \n1/4-inch unbalanced (x2) \n3 pairs stereo RCA (6 total)
Output Connections	TRS balanced 1/4-inch (x2) \n1/4-inch unbalanced (x1) \nRCA (x2)
Input Impedance	600/22K ? mic/line XLR inputs / 10K ? RCA inputs / 22K ? 1/4-inch effects returns
Output Impedance	50 ? 1/4-inch main outputs / 1K ? RCA record outputs / 100 ? effects output
Total Harmonic Distortion	.01% Typical
Signal to Noise Ratio	> 90dB typical
Maximum Input Level	-10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
Maximum Output Level	+24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
Maximum Gain	56dB/26dB mic/line / 26dB RCA inputs
Phantom Power	+15Volts DC (regulated / low noise)
Power Requirements	USA – 105 to 125 VAC / 50-60Hz, 15 W typical
Equalizer Range	+/-12dB @ 100Hz & 10kHz
Dimensions	 44.5mm x 483mm x 152mm
Weight	 2.8 kg
