Here are some examples:

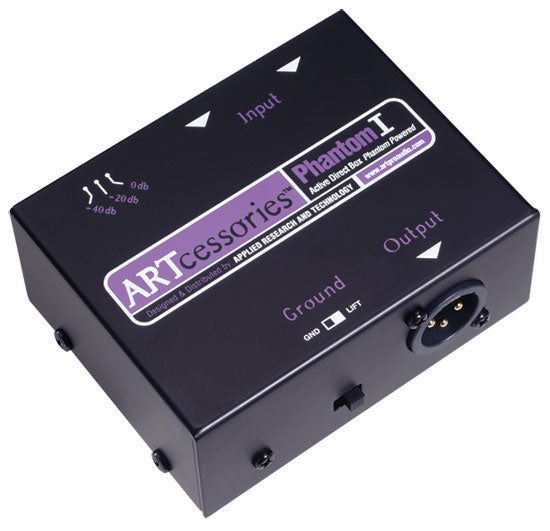

\nThe Problem: You need to connect an amplifier’s speaker output to the mic input on a mixer. \n \nThe Solution: Connect a Phantom I between the speaker output and a mic input with phantom power on the mixer, then set the attenuation switch to –40dB. \n \nThe Problem: Your PA is humming because there is a ground loop between a signal source and the mixer. \n \nThe Solution: Connect a Phantom I between the signal source and a mic input with phantom power and set the ground switch to Lift. \n \nThe Problem: You need to connect an unbalanced line-level source (ie: a synthesizer, another mixer, an effects device, etc.) to a mic input on the mixer. \n \nThe Solution: Connect a Phantom I between the source and a mic input with phantom power and set the Attenuator switch to –20dB. \n \n

\n

Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Signal To Noise Ratio	100dB
Input Level	-10 to +40dB
Output Level	-10 to +2dB
Input Connections	Dual 1/4 in, unbal. inputs are parallel
Output Connections	XLR Balanced
Frequency Response	1Hz – 50kHz
Ground Lift	Switch
Input Attenuation	Switchable signal padding: -20dB
Phantom Power	LED Indication when present
Power	9 to 48V DC of phantom power
Dimensions	95mm x 74mm x 40mm
Weight	317g
