Art Pro Audio Tubemix 5-Channel Mixer With Usb &Amp; 12Ax7 Tube

Art Pro Audio Tubemix 5-Channel Mixer With Usb &Amp; 12Ax7 Tube

ART Pro Audio
Sale!
$690.00 AUD

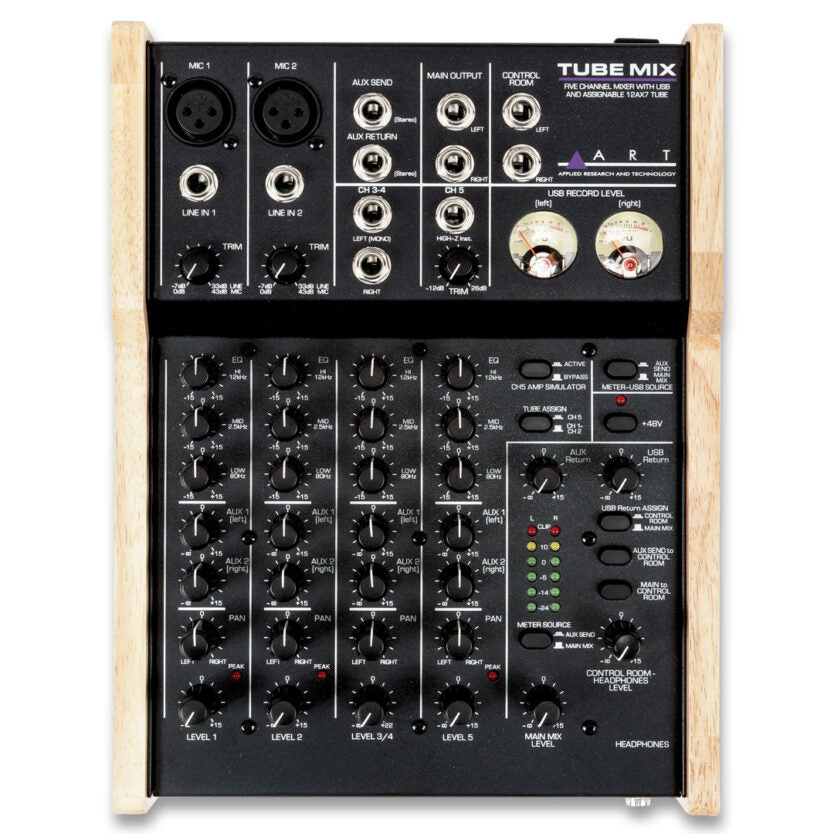

The ART Tube Mix provides a compact versatile audio interface. The Mixer supports two mic inputs, one high Impedance Instrument input, and two line inputs simultaneously. The 12AX7 tube can be assigned to act as a dual channel tube mic preamp, or stacked and applied to the Instrument input for added warmth and tone (with the amp simulator on Channel 5) with guitar or bass. \n \n \n
\n
\n
\n
\n
\n
\n
\n
\n
    \n
  • Fully Featured Tube Driven 5-Channel Stereo USB Mixer
    • \n
  • Two Wide Dynamic Range Low Noise Mic Preamp Channels
    • \n
  • Dedicated High Impedance Instrument Input with Amp Simulator
    • \n
  • Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
    • \n
  • Switchable Low Noise +48V Phantom Power for Condenser Microphones
    • \n
  • Precise VU Meters and Wide Range LED Meters with Selectable Source
    • \n
  • Fully Featured Input Channels
    • \n
  • Flexible Control Room / Monitor Section
    • \n
  • USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux
    • \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Input ImpedanceMicrophone: 3.5k ? \nLine (CH1, CH2, CH3/4), 10k ? \nCH5 (Inst.), 1M ?
Output ImpedanceMain, Control Room (Balanced/Unbalanced), 150/100 ? \nAUX Outputs, 150 ? \nHeadphones, 100 ?
Frequency Response20-100kHz + 1dB
Maximum Input LevelCH1, CH2 (Mic), +9dBu \nCH1 CH2 (Line In), +20dBu \nCH3/4 (EQ Flat), +20dBu \nCH5 (EQ Flat), +16dBu \nAUX Return, +24dBu
Maximum Output LevelMain, Control Room (Balanced, Unbalanced), +20dBu/+17dBu \nAux Send, +20dBu \nHeadphones, 100mW / Ch @ 300 ?, 50mW /Ch @32 ?
Maximum GainLINE IN to Main output (balanced), +63dB \nCH 5 to Main output (balanced), 56dB \nCH3/4 to Main output (balanced), +30dB
Equivalent Input NoiseMicrophone (@max gain), 127dBu “C”wtd. \nLine (@max gain), -105dBu “C” wtd. \nInstrument (@ max gain), -112dBu “C” wtd.
USB Computer InterfaceUSB class compliant plug-and-play Mac and PC interface
A/D, D/A16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
Phantom PowerSwitch selectable, +48V DC, filtered, current limited
Power Requirements18 VAC, 1000mA
Dimensions84mm H x 198mm W x 265mm D
Weight2.5 kg
Note0 dBu = 0.775Vrms
