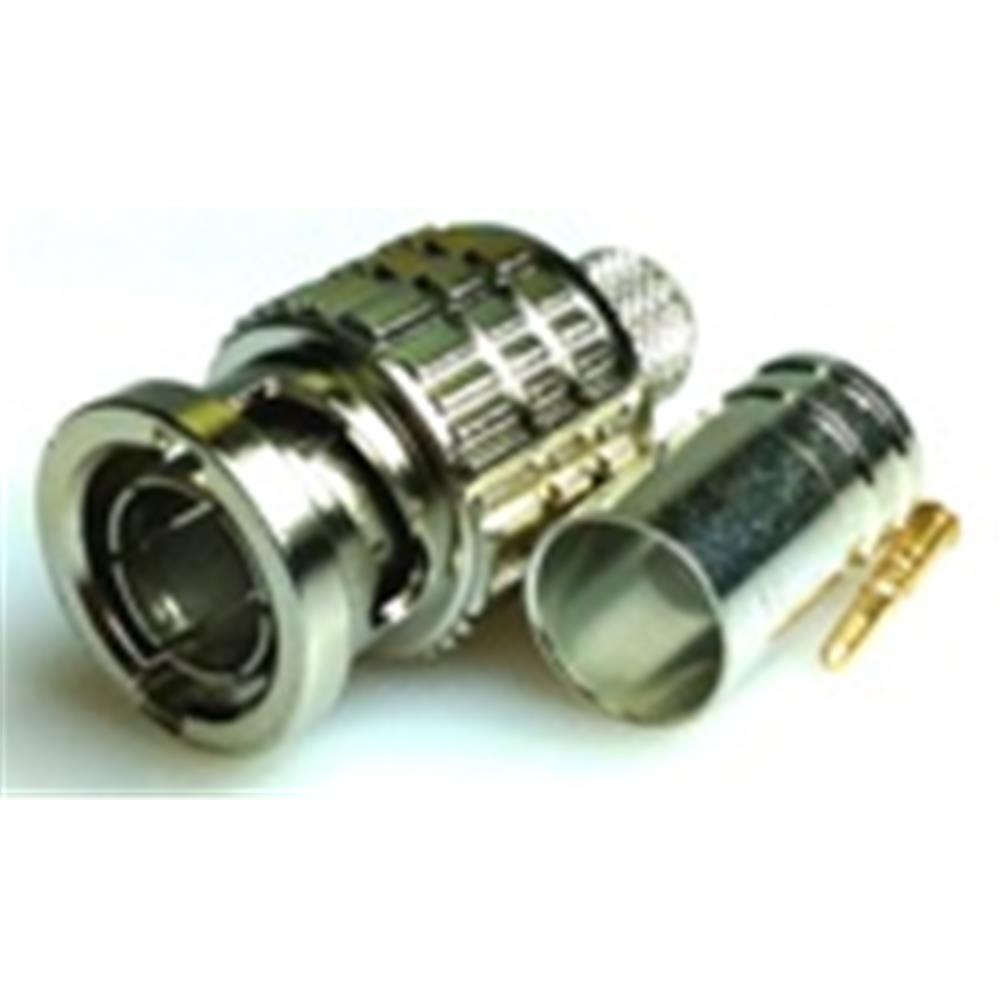

Canare BCP-B51F BNC

Canare BCP-B51F BNC

Canare
$9.31 AUD

Product Code: CA-BCP-B51F

75 ohm BNC Crimp Plugs (Straight Type) (BCP-B Series)

75 ohm BNC Crimp Plugs (Straight Type)

  • SMPTE 424M and 292M Compliant.

  • Serial Digital Video.

  • HDTV Upgrades.

  • NTSC Analog.

  • Test Equipment.

  • Satellite Headends.

  • TELCOM.

  • True 75 ohm construction Crimp Pin and Sleeve.

  • High performance of 1.1 or less VSWR up to 3GHz.

  • Elongated Body for better finger grip.

  • Position mark on body allows the connector fit to be checked easily.

  • Superior cable pull strength.

  • Gold plated center pins 'snap' into place.

  • Connector Body has been die-cast, achieving a lower price with higher performance.

  • Easy Assembly using Canare Strip and Crimp Tools.

Model Cable Boot Crimp Die Crimp Pin Sleeve
BCP-B51F L-5CFW CB05A TCD-5CF B11020D B75004A
Return Loss (0-3GHz) Pull Strength Coupling Sleeve Center Pin Weight
26dB or greater BCP-B53: 245N
for  L-4.5CHD, 1694A		 Zinc Alloy Die Casting Gold Plating approx. 12.5g
Brands Canare
Connector Type BNC

Sold as: Each.

Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
