Canare CanaBridge 1x2 12G-SDI Signal Repeater (CB-8120)
$1,331.00 AUD
Couldn't load pickup availability
CB-8120 (CA-CB-8120)

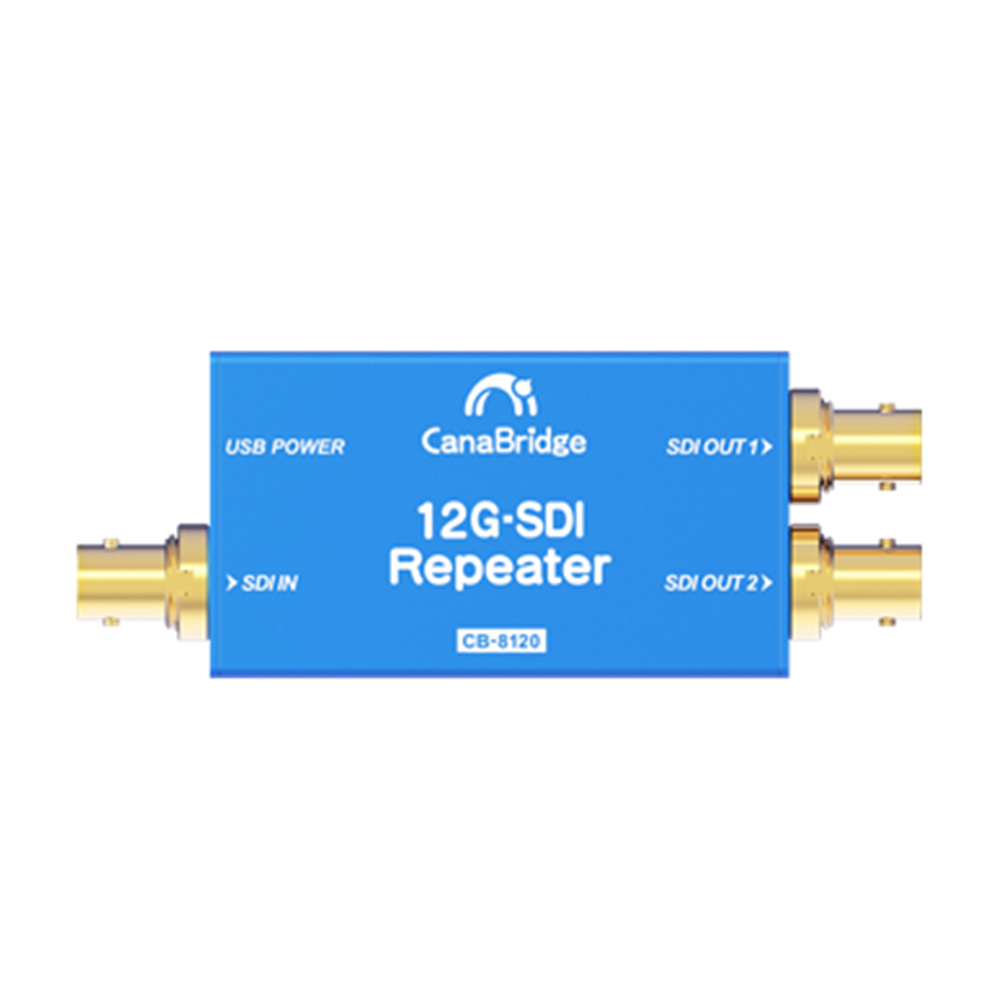

1×2 12G-SDI Signal Repeater
CB-8120
The CB-8120 is a miniature 1×2 12G-SDI repeater.The SD/HD/3G/6G/12G-SDI input signal is automatically detected. It features cable equalization and re-clocking. It also supports ASI signal on both output ports.
Features & Benefits

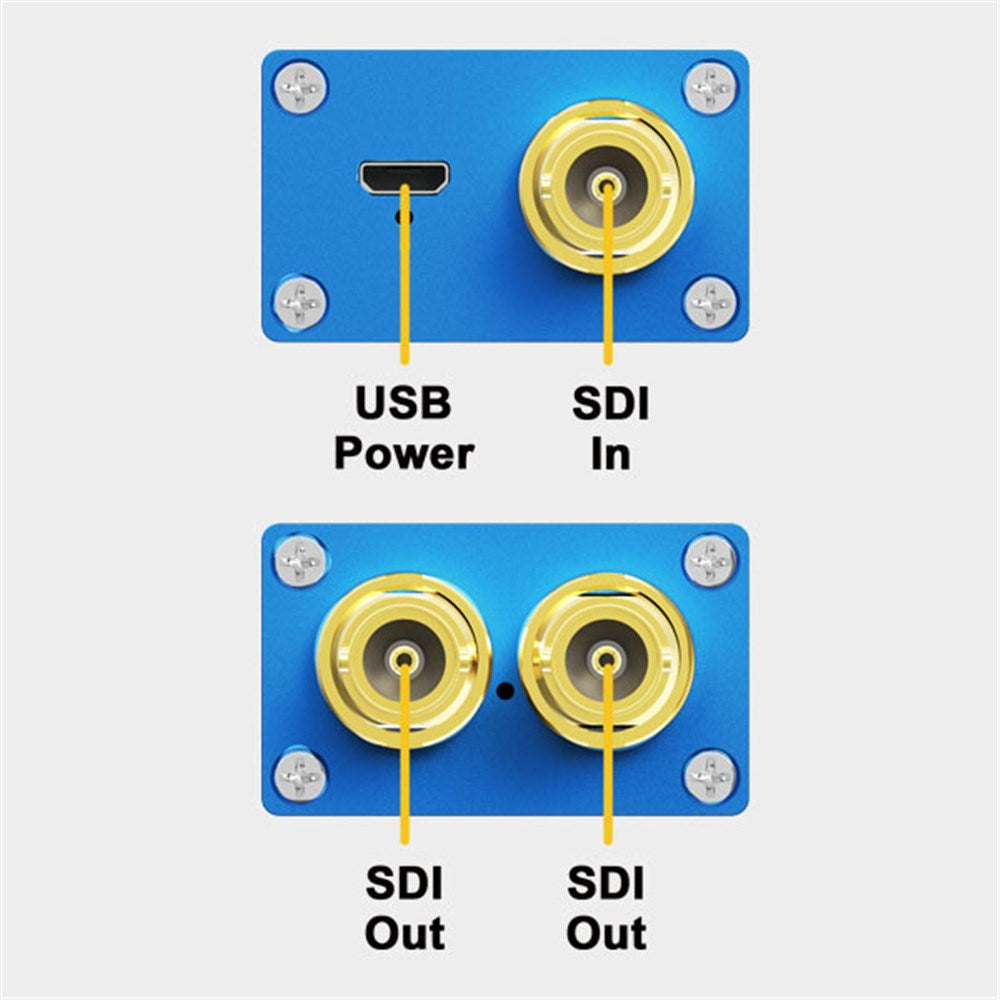

- Input : 1 × 12G-SDI, Output : 2 × 12G-SDI
- Automatically detects SD, HD, 3G, 6G and 12G-SDI
- Support DVB-ASI signal
- Automatic cable equalization and signal retiming
- Pass all ancillary data and embedded audio
- 3.3-5.5V micro USB power

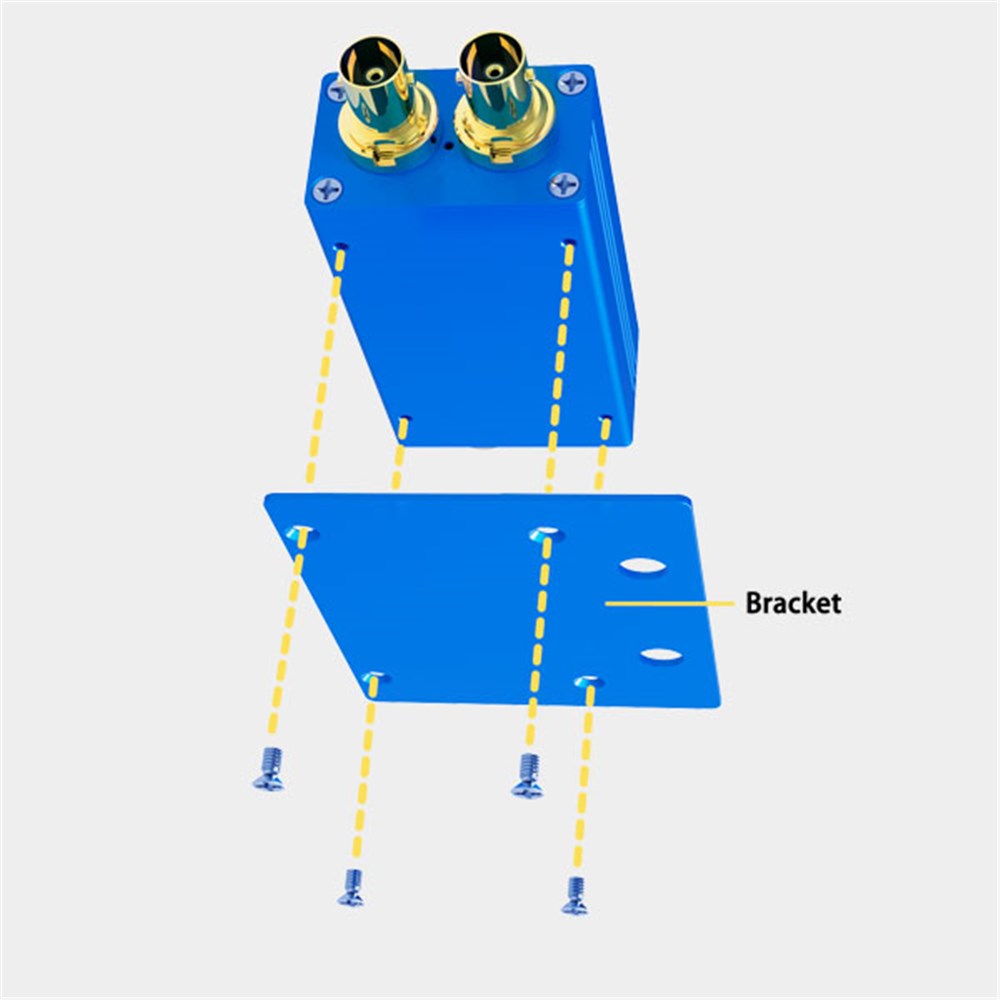

- Detachable bracket design for wall mounting
Typical application
CB-8120 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities, and other applications.
| Brands | Canare |
| Adapter Type | 12G-SDI Repeater |
Sold as: Each.
Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
