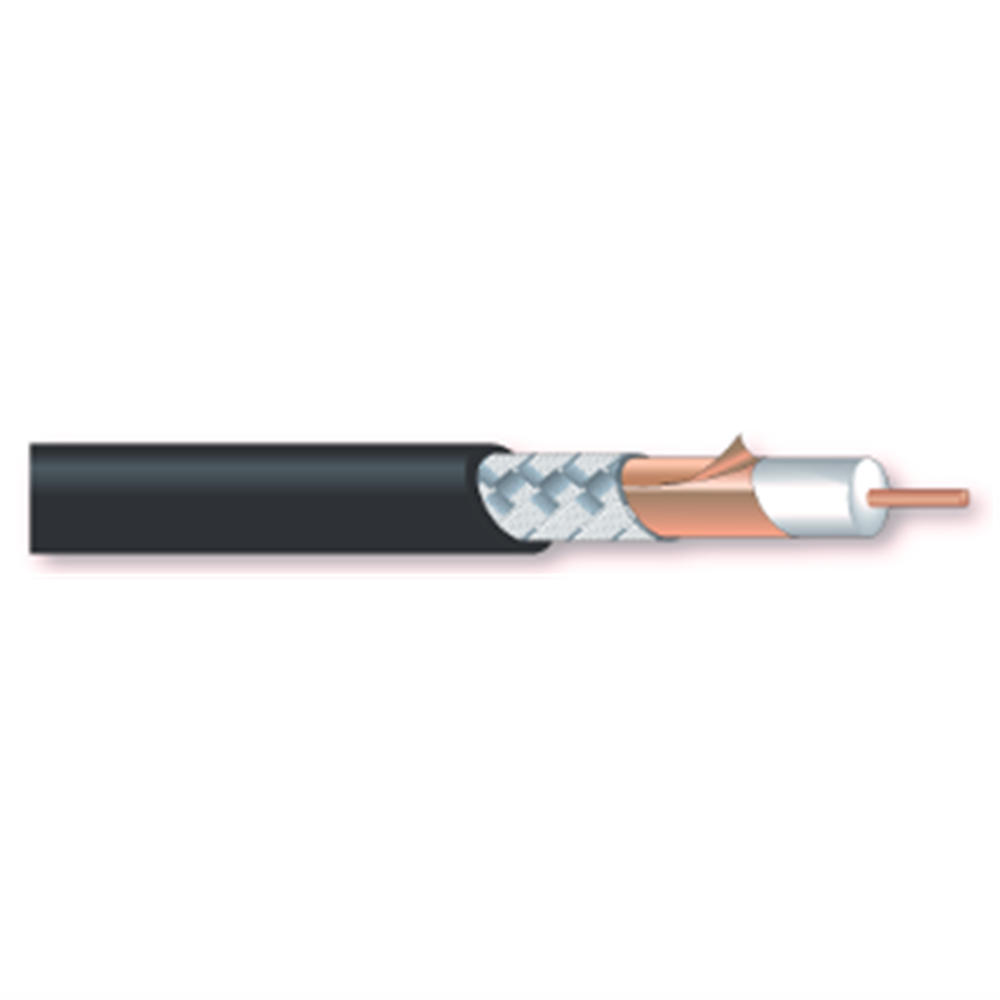

Canare L-3.3CUHD coax cable 12G-SDI permanent install black 100m (L-3.3CUHD-BK1)
$479.00 AUD
Couldn't load pickup availability
Product Code: CA-L-3.3CUHD-BK1
? Specially designed for 12G-SDI
? Excellent results in demanding tests.
? Copper foil and high-density tinned copper braided shielding
? Highly-foamed multi-layer PE insulation
? Flame resistance UL 1666 Riser
? Excellent results in demanding tests.
? Copper foil and high-density tinned copper braided shielding
? Highly-foamed multi-layer PE insulation
? Flame resistance UL 1666 Riser
| Model | Standard Length ft. (m) |
Nominal O.D. in. (mm) |
Weight lbs (kgs)/100m |
Inner Cond Conductor Comp. (AWG) Q'ty/mm |
Inner Cond O.D. in. (mm) |
Insulation O.D. in. (mm) |
| L-3.3CUHD | 328 (100) 656 (200) 984 (300) |
0.217 (5.5) |
9.04 (4.1) |
(21) 1/0.A |
0.030 (.75) |
0.130 (3.3) |
| Model | Outer Conductors Shield Coverage & Comp. |
Inner Cond. Resistance ohm/km |
Outer Cond. Resistance ohm/km |
Static Capacity (pF/m) |
Characteristic Impendence ohm |
Attenuation dB/100m(328ft) @6GHz |
| L-3.3CUHD | Copper Laminated Tape + 0.12TA/8/16 (92%) |
41.4 | 14.9 | 55 | 75 | 68.5 |
| Brands | Canare |
Sold as: Each.
Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
