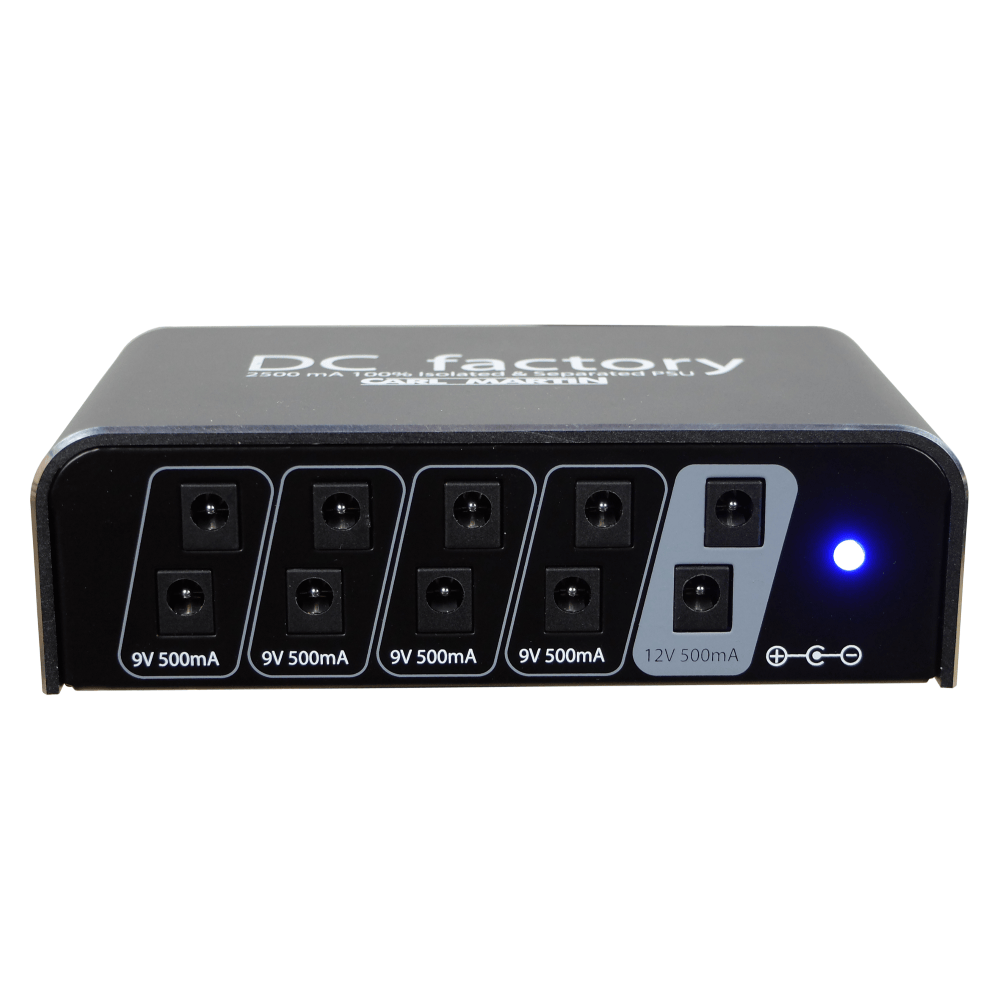

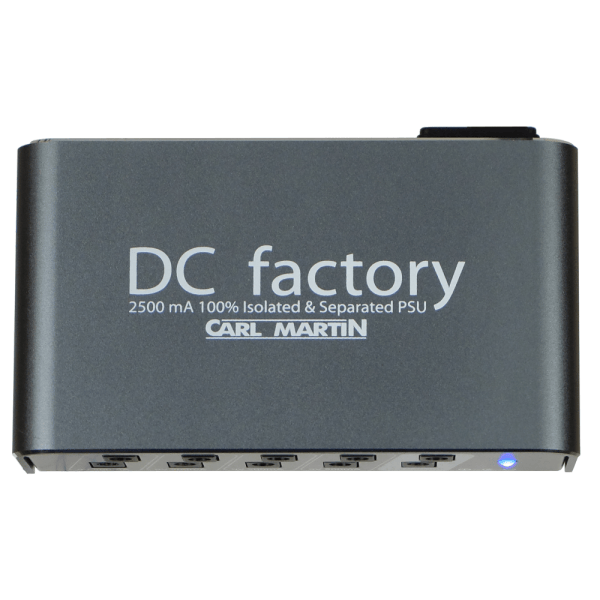

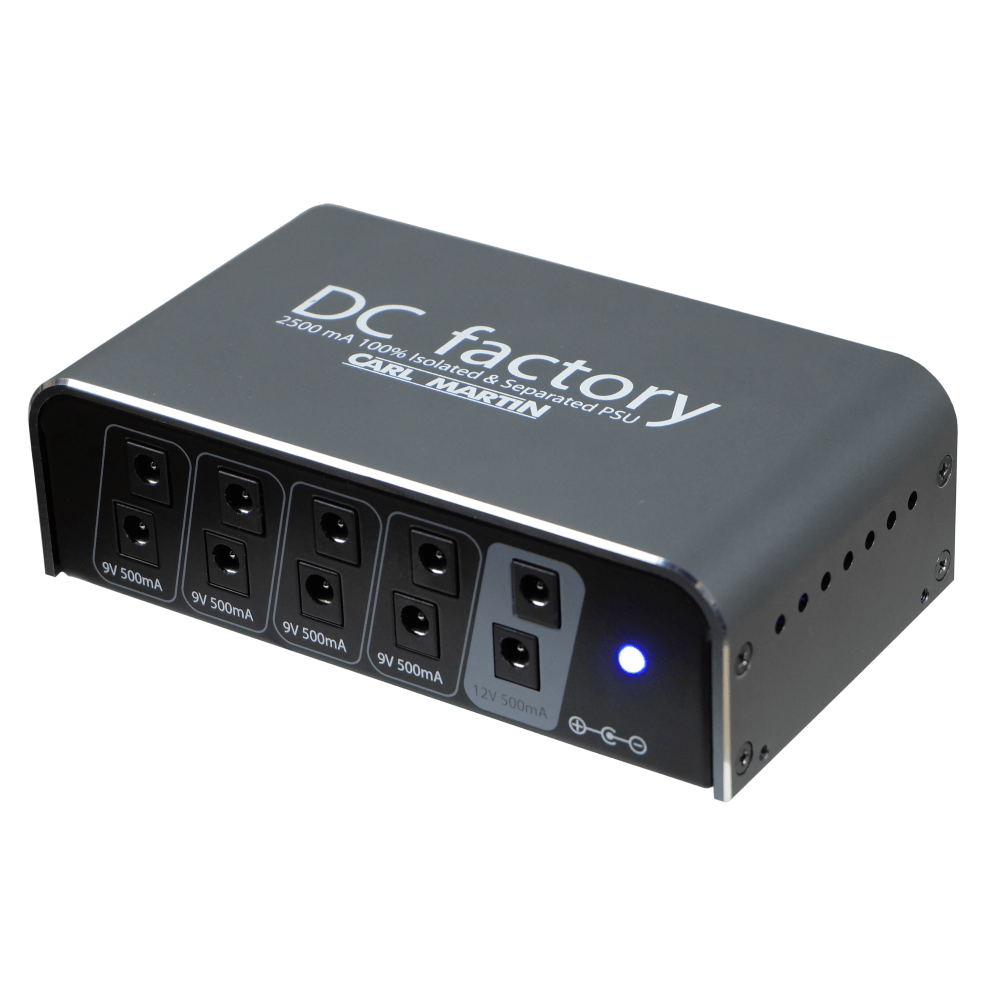

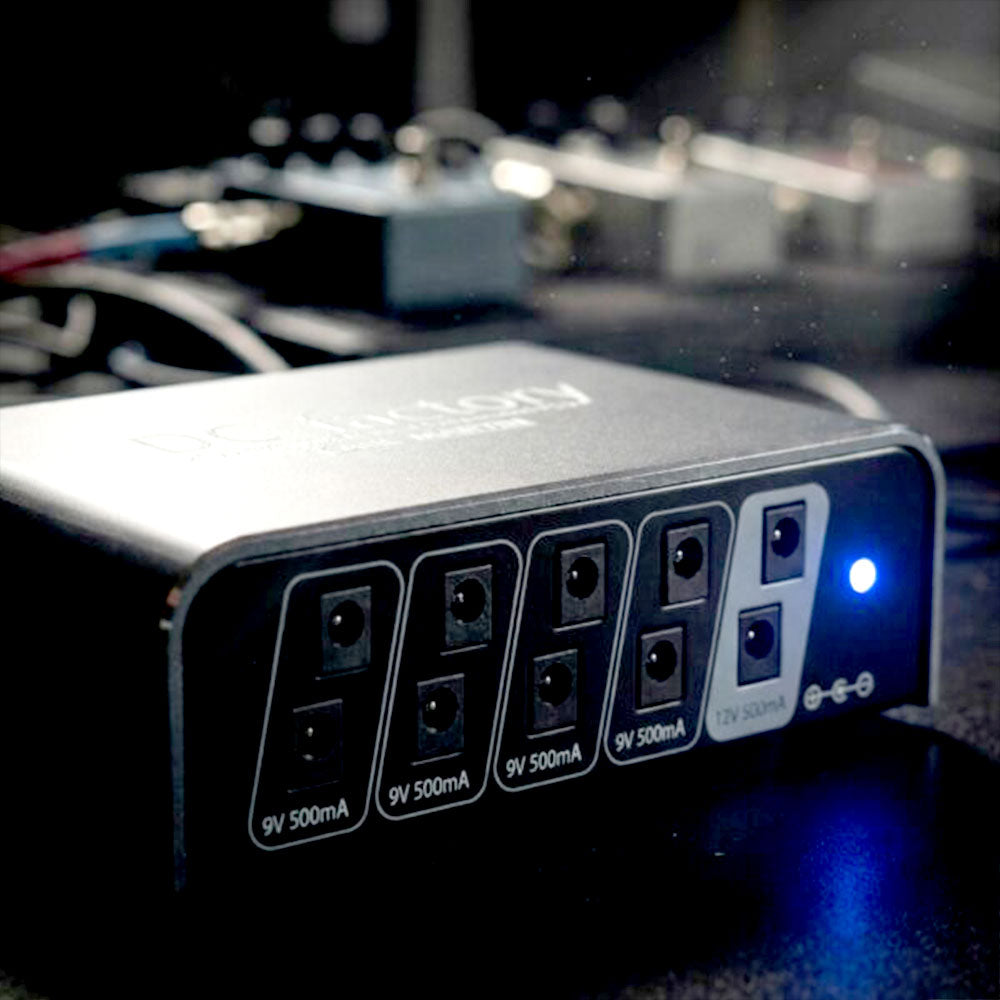

The Carl Martin DC Factory is a compact, fully isolated pedalboard power supply delivering up to 2500mA across ten outputs. Featuring eight 9V outputs and two 12V outputs, it provides clean, stable power for modern analogue and digital pedalboards while minimising noise and ground loop issues

The Carl Martin DC Factory is a high-current, fully isolated power supply designed to provide reliable, noise-free power for today’s increasingly demanding pedalboards.

Its ten outputs include eight 9V DC outputs and two 12V DC outputs, with a total available current of 2500mA, making it well suited to powering a mix of current-hungry digital effects alongside traditional analogue pedals. Each power section is fully isolated to help eliminate ground loops and unwanted noise between pedals.

Unlike traditional transformer-based supplies, the DC Factory uses a high-quality switch-mode design that delivers higher current capacity in a smaller, lighter enclosure while avoiding the radiated hum that can affect sensitive analogue pedals such as wahs and overdrives. Built-in short-circuit and overload protection, worldwide 100–240V AC compatibility, and LED status indicators make it a dependable solution for home, studio and stage use.

Key Features

• Switch-mode power supply design
• 10 fully isolated DC outputs
• 8 × 9V DC outputs (4 × isolated 500mA power sections, each with 2 outputs)
• 2 × 12V DC outputs (1 × isolated 500mA power section with 2 outputs)
• 2500mA total available output current
• Fully isolated and separated outputs

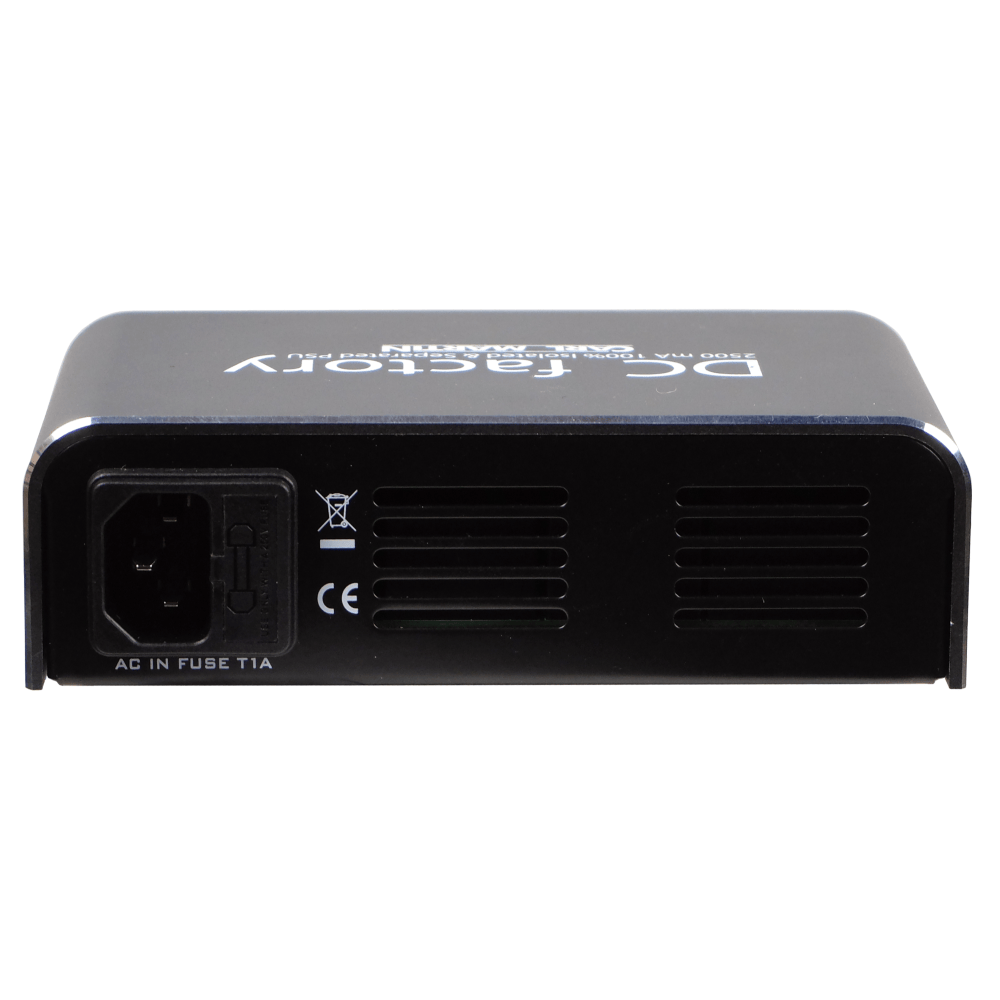

• 100–240V AC mains input (fused T1A)
• Short-circuit and overload protection
• LED power status indicators
• Compact 150 × 85 × 45mm enclosure
• Weight: 0.68kg
