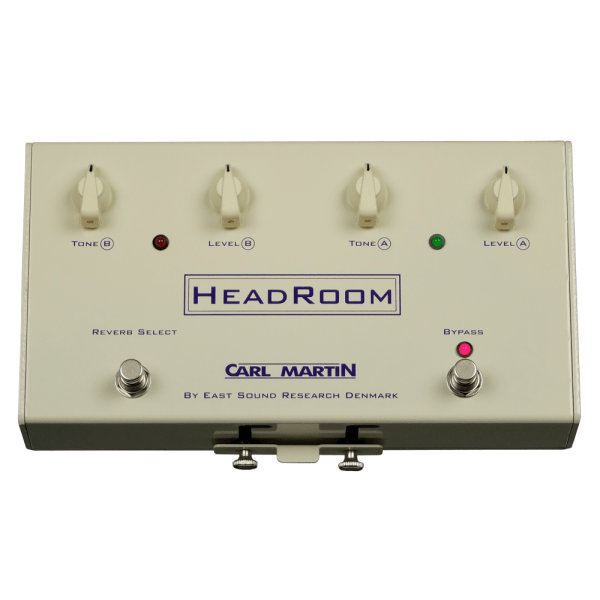

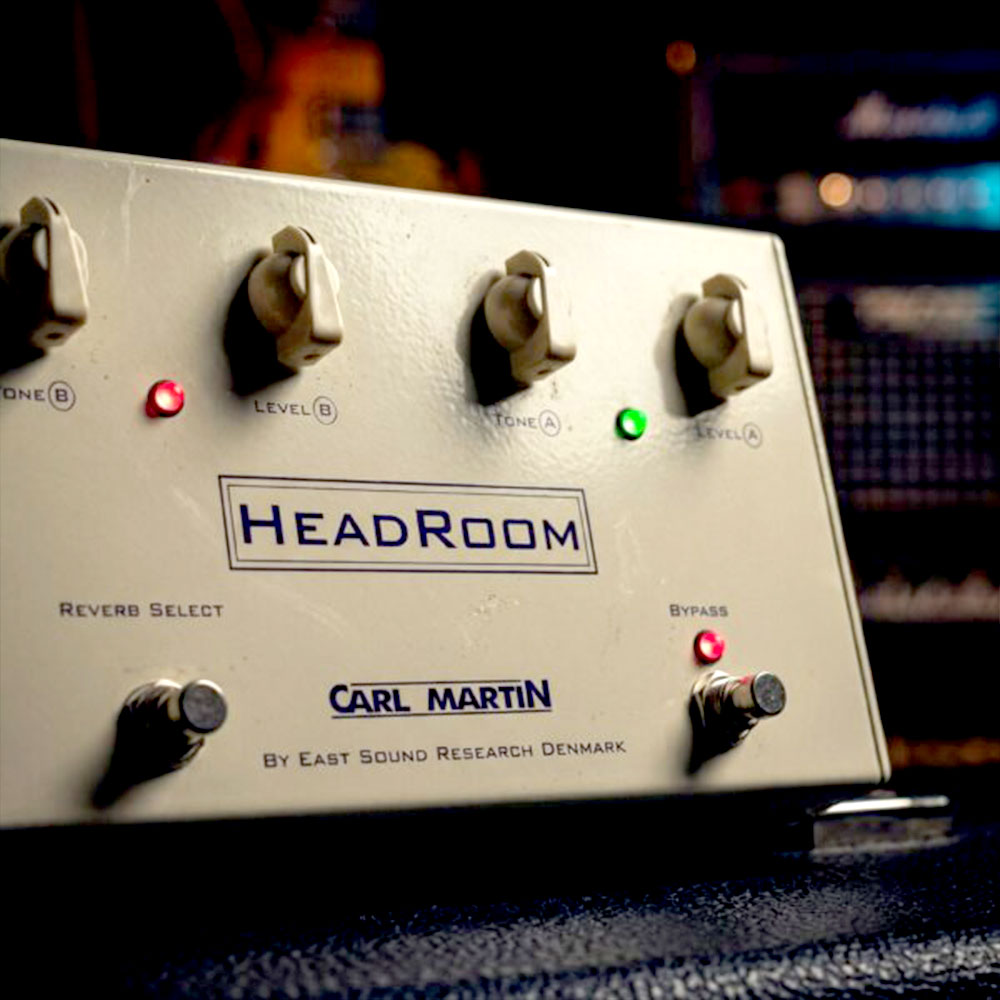

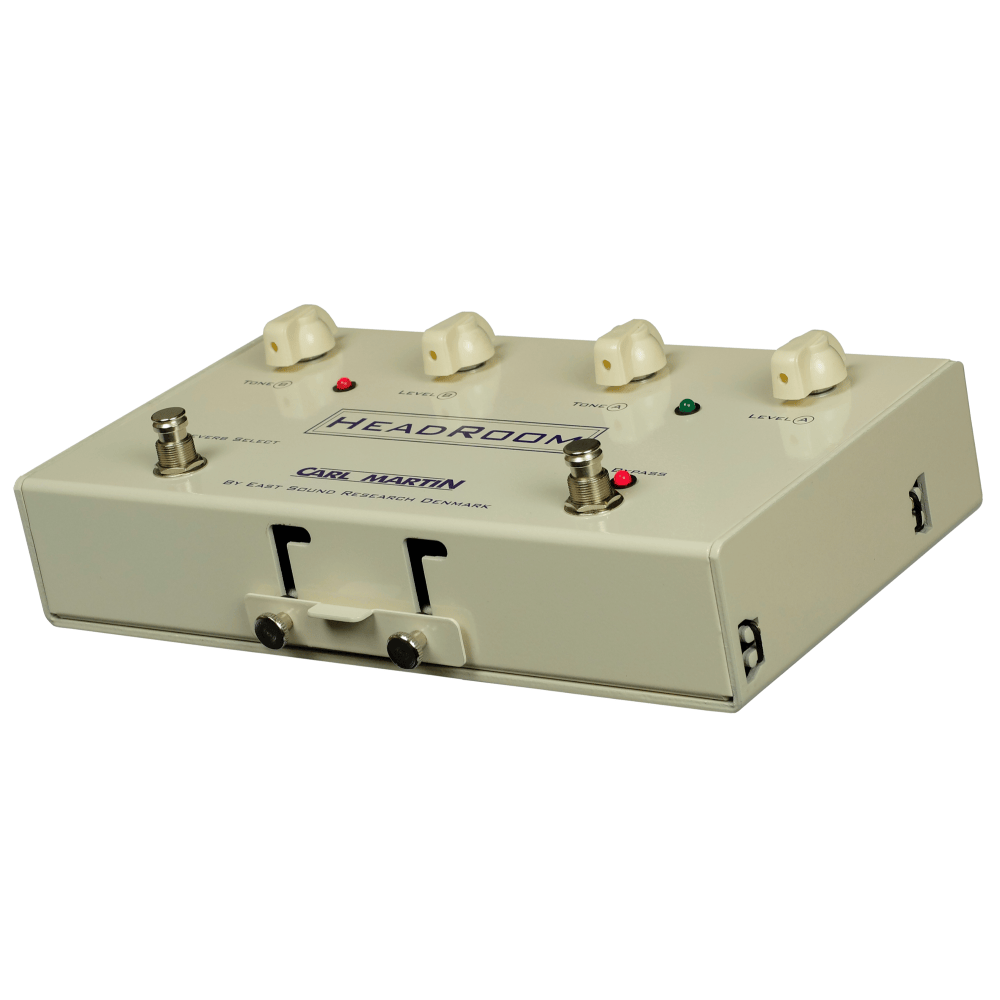

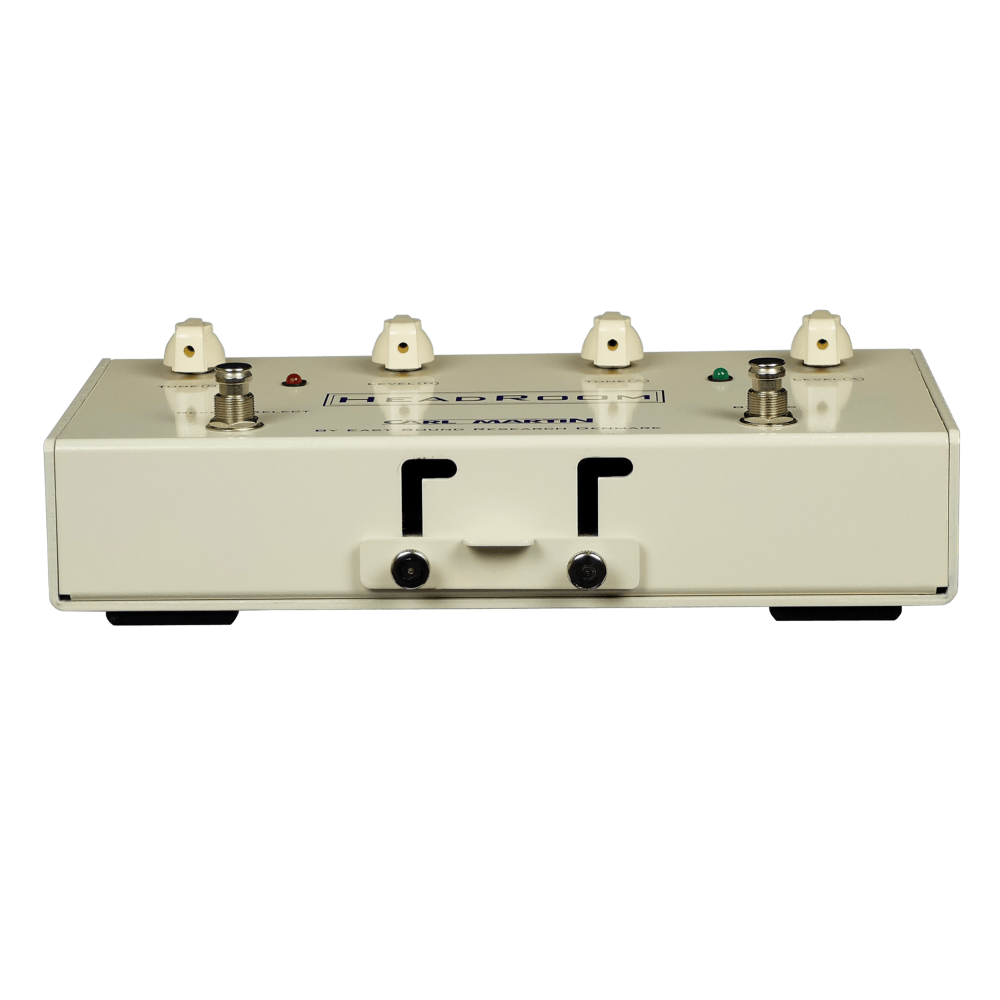

The Carl Martin Headroom is a real analog spring reverb pedal featuring two independent, instantly switchable channels. Each channel is equipped with its own Tone and Level controls, allowing you to set up two distinct reverb sounds. To reduce sensitivity to stage vibration and acoustic feedback, the internal spring tank is isolated via a dual-suspension mounting system. Built into a rugged metal enclosure with classic chicken-head knobs for straightforward operation, the pedal also includes remote jacks for Bypass and Channel Select to allow flexible floor control and off-board placement.

When Carl Martin designed HeadRoom, the idea was simple: real spring reverb, without complexity — but with flexibility where it actually matters. Instead of menus or presets, we built a fully analog spring reverb with two identical, independent channels that can be switched instantly while you play.

Each channel has its own Tone and Level controls, allowing us to set up two completely different reverb characters. One channel can be dialed in for a subtle, short room sound, while the other delivers a deeper, darker, and more dramatic reverb. Switching between them feels like moving between two separate reverbs built into the same amp.

At the heart of HeadRoom is a real spring reverb tank. Carl Martin mount it using a dual-suspension system to reduce sensitivity to stage vibration and feedback. The result is a natural, organic reverb response that reacts dynamically to your playing instead of behaving like a static effect layered on top.

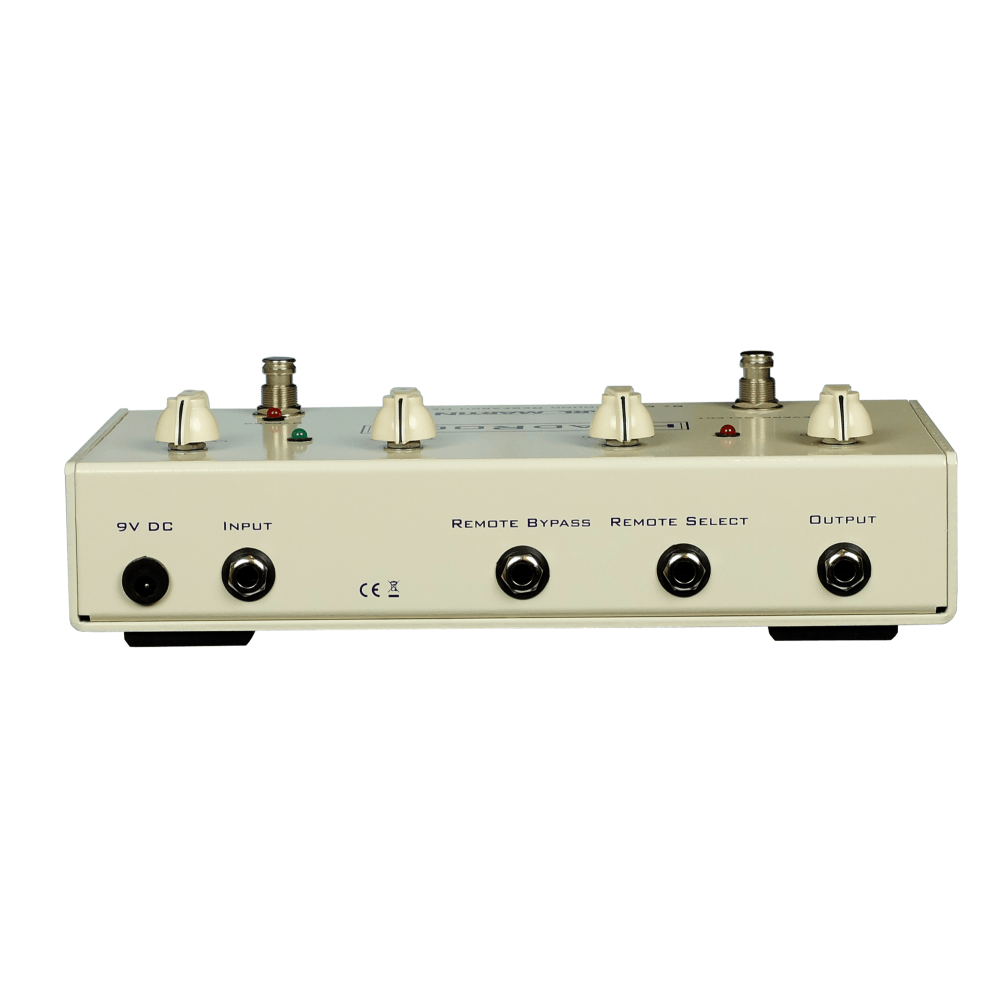

Carl Martin designed the HeadRoom for flexible placement. Alongside the standard input and output jacks, they added remote jacks for Bypass and Channel Select. This allows you to place the unit in a rack or behind an amp while still controlling it from the floor — saving valuable pedalboard space without sacrificing functionality.

The enclosure is solid metal, fitted with classic chicken-head knobs, and built to handle real-world use. HeadRoom is straightforward to operate, road-ready, and designed for players who want authentic spring reverb with immediate access to two distinct sounds — no programming required.

Key Features

• This purely analogue ‘real spring’ reverb has two identical channels, each with tone and level controls to select the depth and tone of your reverb.
• Solid metal casing, cool vintage chicken head knobs, double mounted springs to minimize stage feedback.
• Remote jacks for Bypass and Channel Select.
• Runs on 9V DC power.

Dimensions: 260 x 140 x 70 / 10.24″ x 5.51″ x 2.76″
Weight: 1.1 kg / 2.43 lbs

Specifications

• Input: 1M Ohm
• Output: 1.6K Ohm
• Power: 9V battery compartment
• External power supply: 9V DC centre negative, use only a quality regulated 9V power supply
• Power comsumption: 10mA
