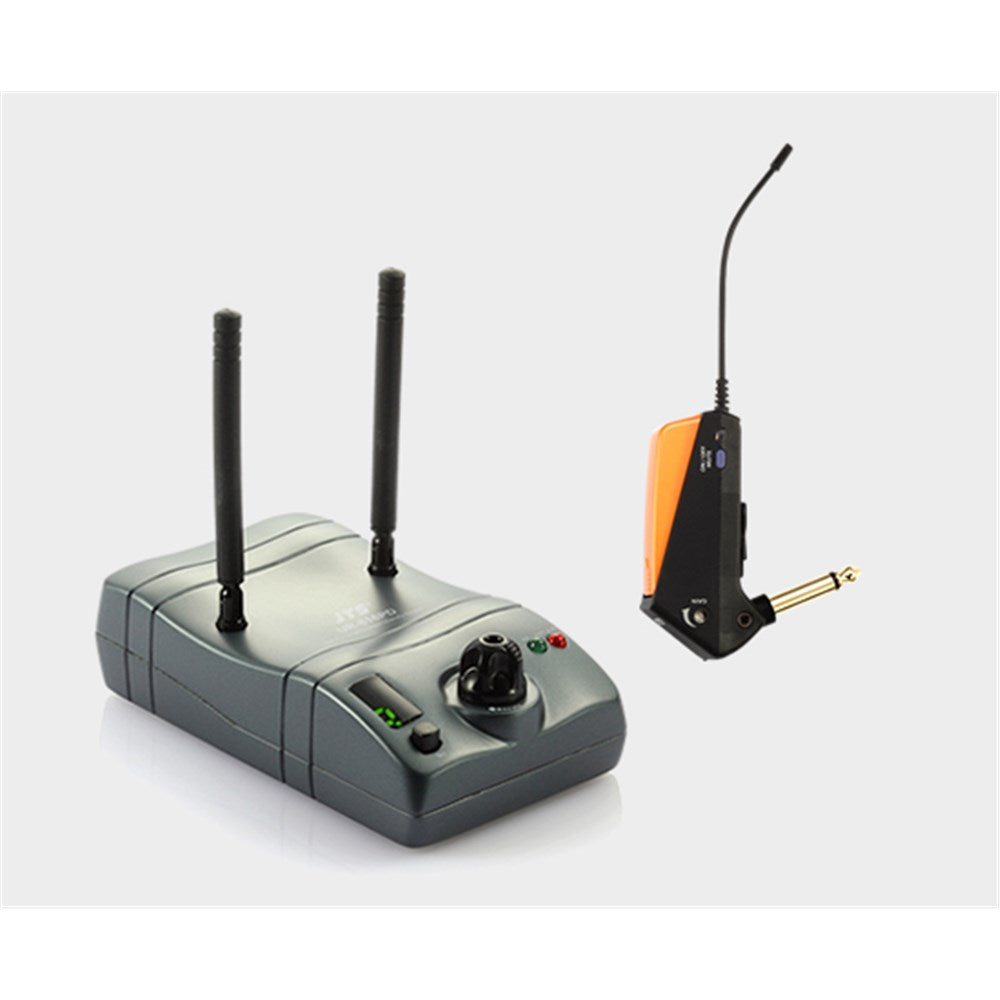

UR-816PD + UT-16GTP (Guitar Pack)

includes

• UR-816PD pedalboard receiver
• UT-16GTP guitar plug transmitter

UR-816PD

• Preset 16 selectable UHF channels.
• Single transmitter operation.
• Diversity technology prevents dropouts in the RF link.
• PLL synthesized technology.
• Noise mute and pilot tone squelch.
• Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
• Tuned antennas maximize the effective range of the wireless link.
• Compact space design.

UT-16GTP :

• Sub miniature guitar transmitter with patent pending design.
• UHF PLL 16 preset selectable channels.
• Powered by one AAA battery for over 8 working hours.
• Over 60 meters of stable operation distance.
• High signal to noise ratio.
• Standby function provided for stable wireless link.
• Provide great convenience to guitar player.

SPECIFICATIONS

UR-816PD
Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 638-662MHz

S/N Ratio

• >105dB

T.H.D.

• <0.6%@1KHz

Display

• LED

Display Contents

• Antenna A/B, RF/AF Status

Controls Power

• On/Off, Channel Selecting, Audio Level

Audio Output Level

• -12dB

AF Output Impedance

• 600Ω

Squelch.

• Pilot Tone, Noise and Mute

Operation Voltage

• 9-15 VDC, 200mA

Output Connector

• 1 Unbalanced Ø6.3mm phone jack

Dimension

• 124mm (W)* 33mm (H)* 73mm (D)

UT-16GTP
Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 638-662MHz

RF Outputs

• Maximum 10mW

Stability

• ±10KHz

Frequency Deviation

• ±48KHz

LED Display

• Power On/Off, Low battery

Controls

• Power On/Off, AF Level, Channel Selecting, Mute

Spurious Emissions

• <-50 dBC

Audio Frequency Response

• 40~18,000 Hz

Battery

• LR03, AAA 1.5V
