CM-235iB - 801C3 (3 pin mini XLR Connector)

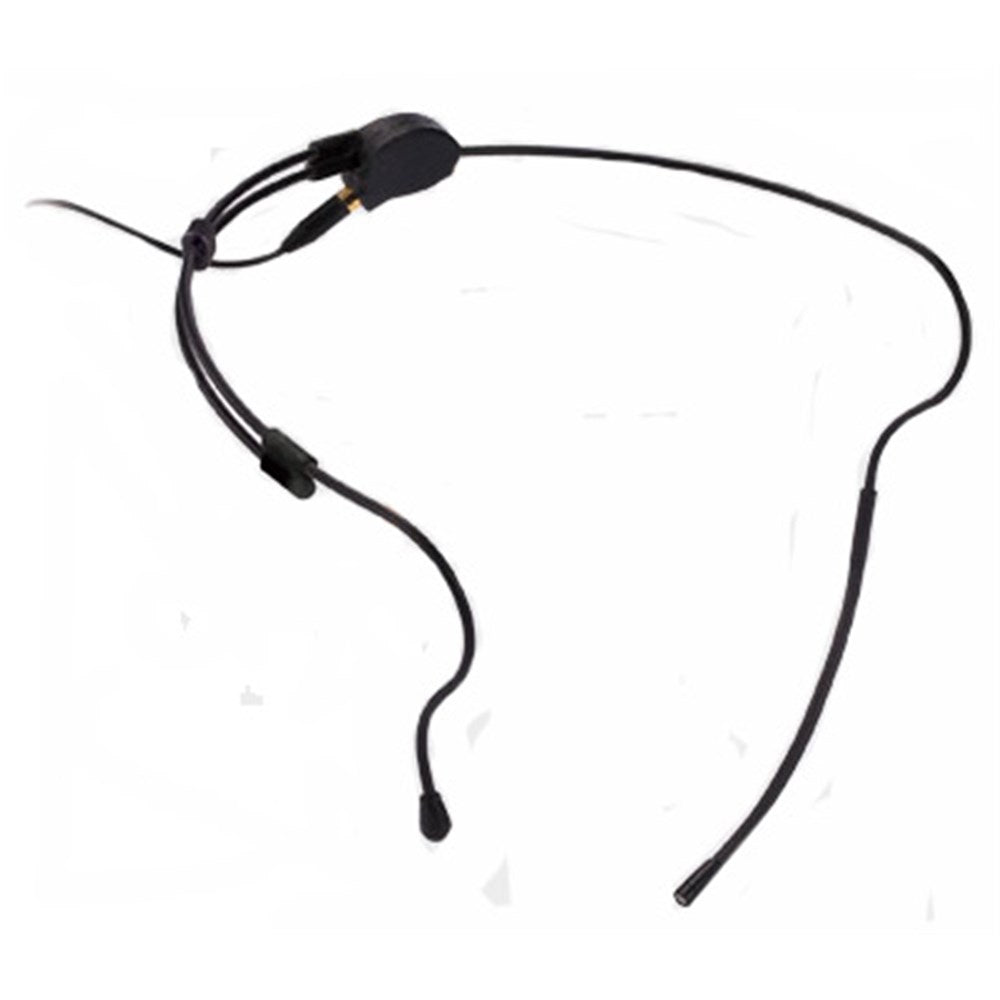

CM235 headset, black subminiature capsule 3-pin mini XLR

• For theater, live sound, TV and musicals.
• Omni-directional.
• Excellent acoustic performance.
• Very comfortable to wear.
• High quality mini gooseneck assures best miking position.
• Adjustable headband.
• Detachable cable.

SPECIFICATIONS

Connector

• 801C4 (4 pin mini XLR)
• 801C3 (3 pin mini XLR)
• 801CS (3.5 stereo plug)
• 801CR

Frequency Response

• 50 ~ 18,000 Hz

Polar Pattern

• Omni-directional

Sensitivity (at 1KHz)

• -53 ± 3 dB * (2.24mV) * 0dB = 1V/μbar

Impedance

• 1.8kΩ

Max. SPL for 1% THD

• 130dB

Dimension

• Normal(Adult):16cm / Small(Child): 14cm

Dimension (mm)

• 155mm (W) * 134mm (H) * 157mm (D)

Net Weight

• 17 grams (cable excluded)
