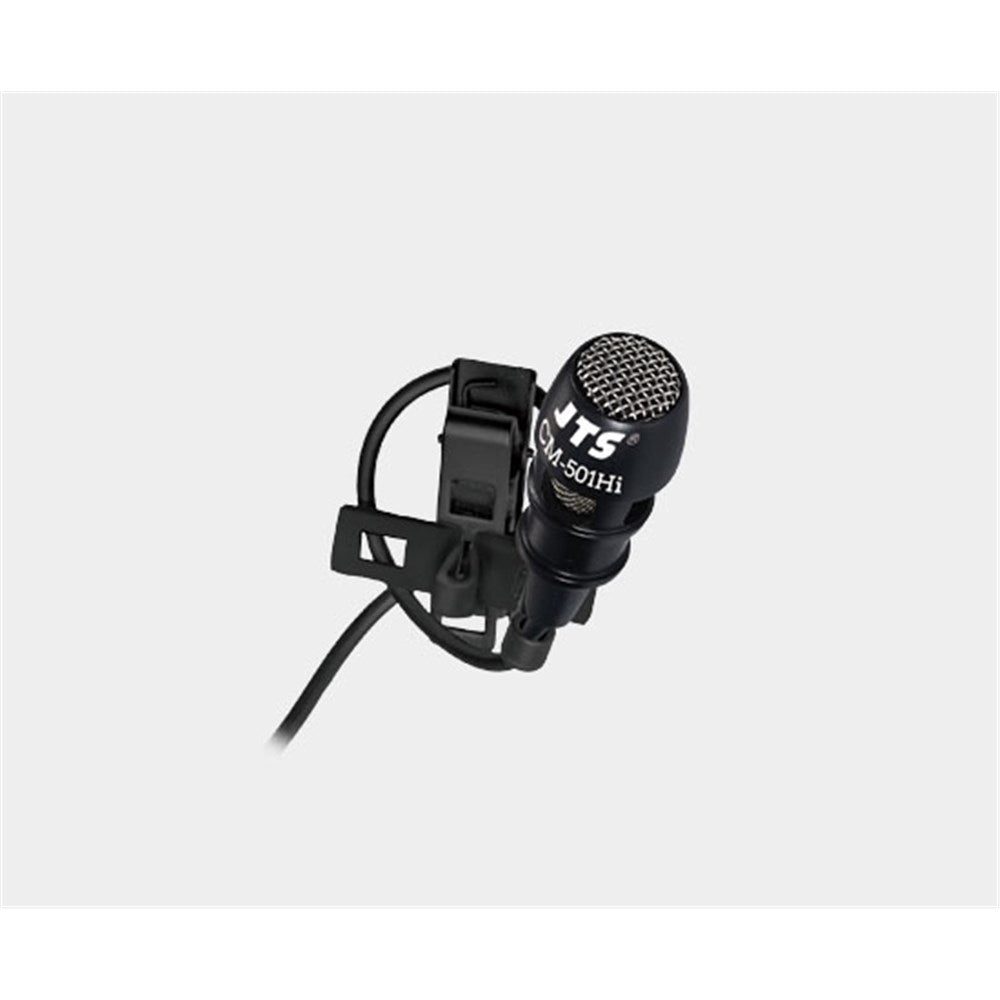

CM-501Hi

The CM-501Hi deploys a high sensitivity capsule with unidirectional pick up pattern. It provides maximum gain before feedback. Wide frequency response and dynamic range assure excellent sound reproduction. The latest clip set, CLP-258, provides versatile application. Single and dual microphone pick up are at your choice. CLP-258 assures optimal
picking up for different dressings.

SPECIFICATIONS

• Type:    Uni-directional Condenser
• Frequency Response:    100 to 15,000Hz
• Polar Pattern:    Cardioid
• Output Level(at 1,000Hz):    -54±3 dB* (2mV) *0dB=1V /μbar
• Impedance:    Rated impedance is 3.7kΩ
• Max. SPL for 1%THD:    115dB
• Standard Operating Voltage:    5Vdc
• Operation Voltage Range:    3~10 Vdc
• Current consumption:    Max. 0.5mA
• Output Connector:    TA4F
• Net Weight:    21.5g
