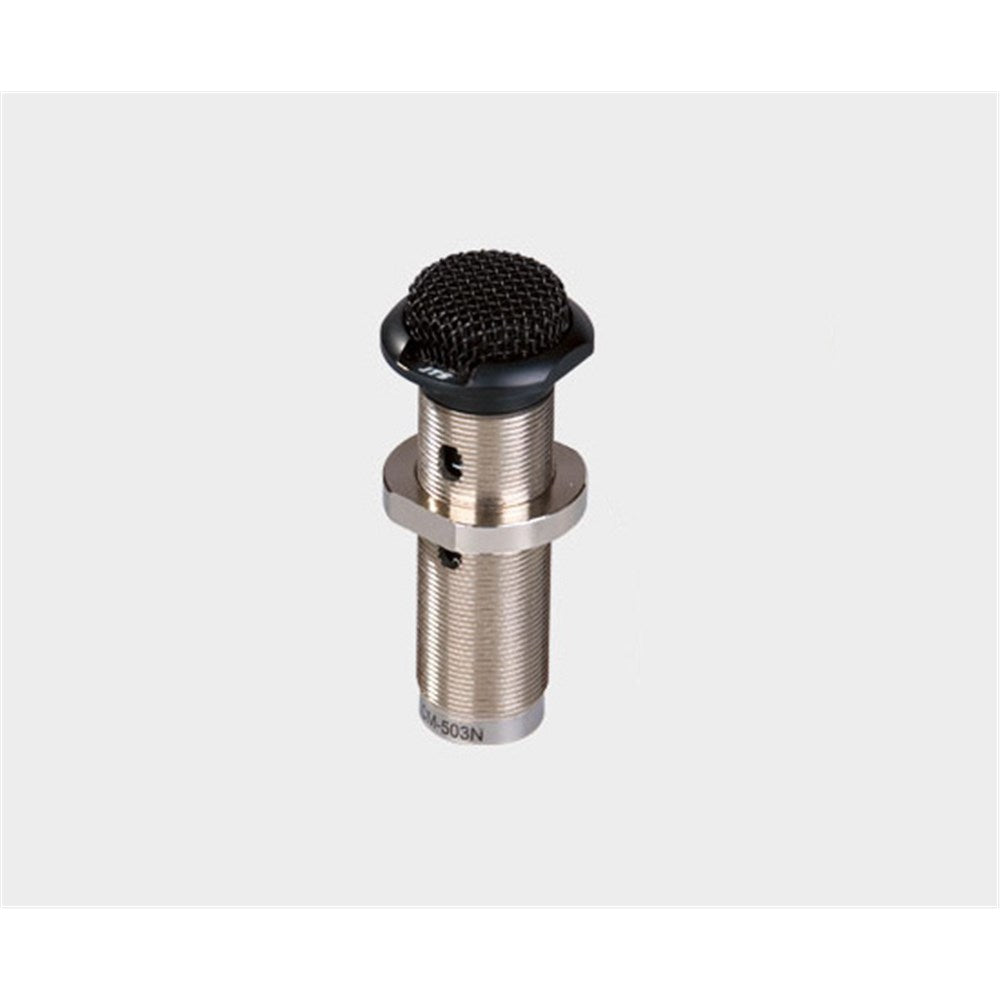

JTS CM503NB Button microphone omnidirectional pattern condenser 3-pin XLR black

JTS CM503NB Button microphone omnidirectional pattern condenser 3-pin XLR black

JTS
$99.00 AUD

Product Code: JP-CM503NB

CM503N (Black)

Available in omnidirctional type . Designed for a wide range of applications, conferencing, installed sound, surveillance.

  • Omnidirectional pickup pattern
  • Extended frequency response
  • Built in Low Cut and -10 dB Pad
  • Option with Matt Black or Matt White
  • Terminated with XLRM connecter



SPECIFICATIONS

Type

  • Electret Condenser

Frequency Response

  • 40 to 20,000Hz

Polar Pattern

  • Half-Cardioid

Sensitivity (at 1,000Hz)

  • -60±3dB* (1mV)* 0dB=1V/μbar

Attenuation Switch

  • -10dB

Low Frequency Roll-off

  • 80Hz

Impedance

  • 220Ω

Max. SPL For 1% T.H.D.

  • 140 dB

Signal To Noise Ratio

  • 68dB

Current Consumption

  • ≤3mA

Power Supply

  • 9-52 VDC phantom power

Output Connector

  • XLR-M type(power module)
Brands JTS Professional Microphones

Sold as: Each.

Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
