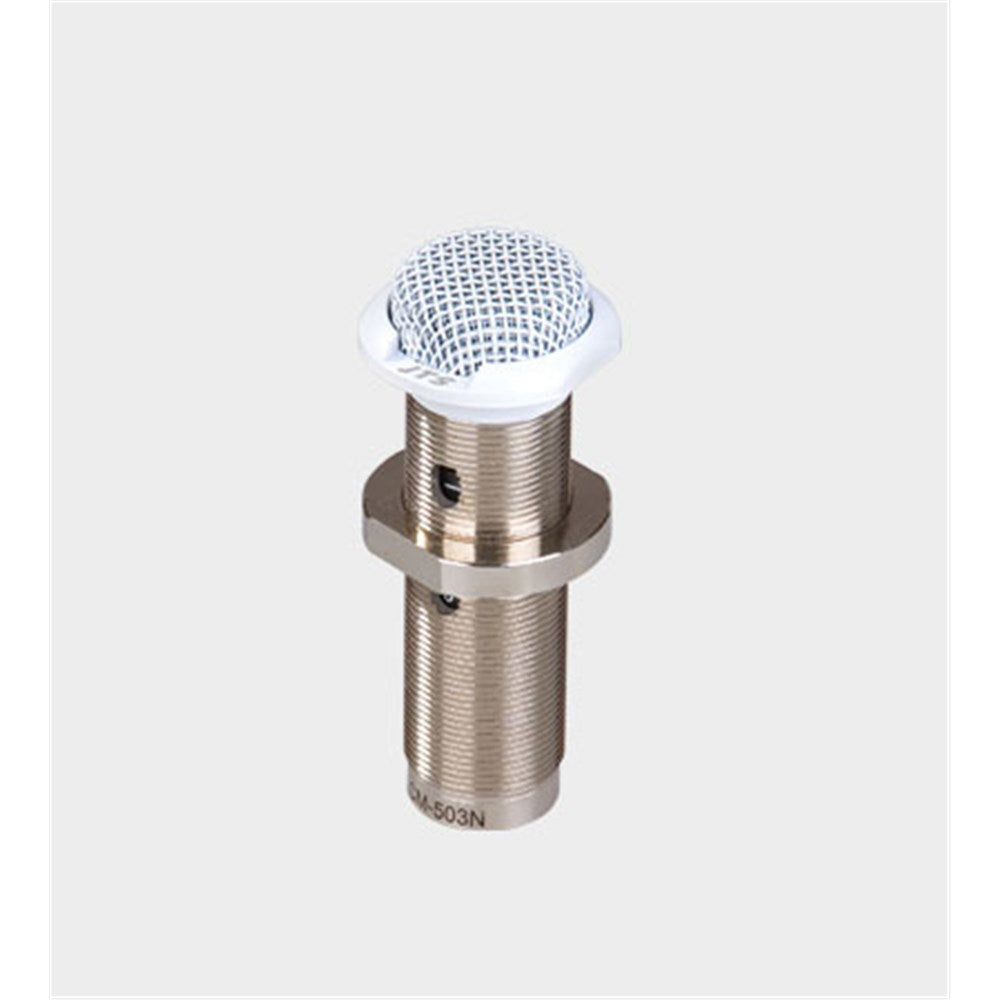

CM503N (White)

Available in omnidirctional type . Designed for a wide range of applications, conferencing, installed sound, surveillance.

• Omnidirectional pickup pattern
• Extended frequency response
• Built in Low Cut and -10 dB Pad
• Option with Matt Black or Matt White
• Terminated with XLR Male connecter

SPECIFICATIONS

Type

• Electret Condenser

Frequency Response

• 40 to 20,000Hz

Polar Pattern

• Half-Cardioid

Sensitivity (at 1,000Hz)

• -60±3dB* (1mV)* 0dB=1V/μbar

Attenuation Switch

• -10dB

Low Frequency Roll-off

• 80Hz

Impedance

• 220Ω

Max. SPL For 1% T.H.D.

• 140 dB

Signal To Noise Ratio

• 68dB

Current Consumption

• ≤3mA

Power Supply

• 9-52 VDC phantom power

Output Connector

• XLR-M type(power module)
