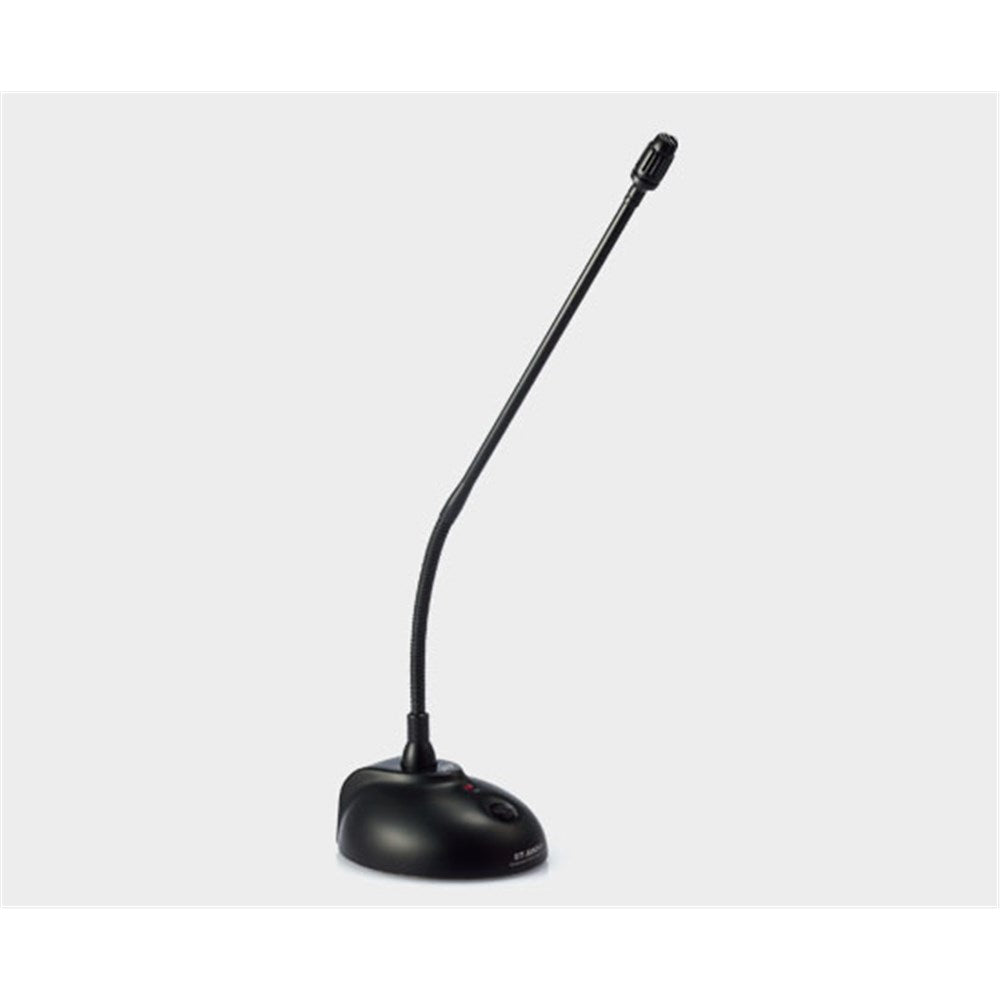

ST-5000

The ST-5000 is the easiest gooseneck mic can be found. Designed with Push ON/Push Off switch and XLR male output it meets basic requirements for all installed applications.

• Supercardioid pick up pattern
• Push ON/OFF
• LED indicator
• Balanced XLR male output

SPECIFICATIONS

Type

• Back Electret Condenser

Frequency Response

• 80~18,000Hz

Polar Pattern

• Supercardioid

Output Level(at 1,000Hz)

• -60±3 dB* (1mV)*0dB=1V /μbar

Impedance

• 220Ω

Max. SPL For 1% T.H.D.

• 125dB

Current Consumption

• ≤5.8mA

Output Connector

• XLR-M type(power module)

Power Supply

• 12-48 VDC Phantom power

Switch

• Push ON/OFF

Gooseneck Length

• 368mm

Base Dimension

• 96mm(W)*46mm(H)*113mm(D)

Net Weight

• 541 grams
