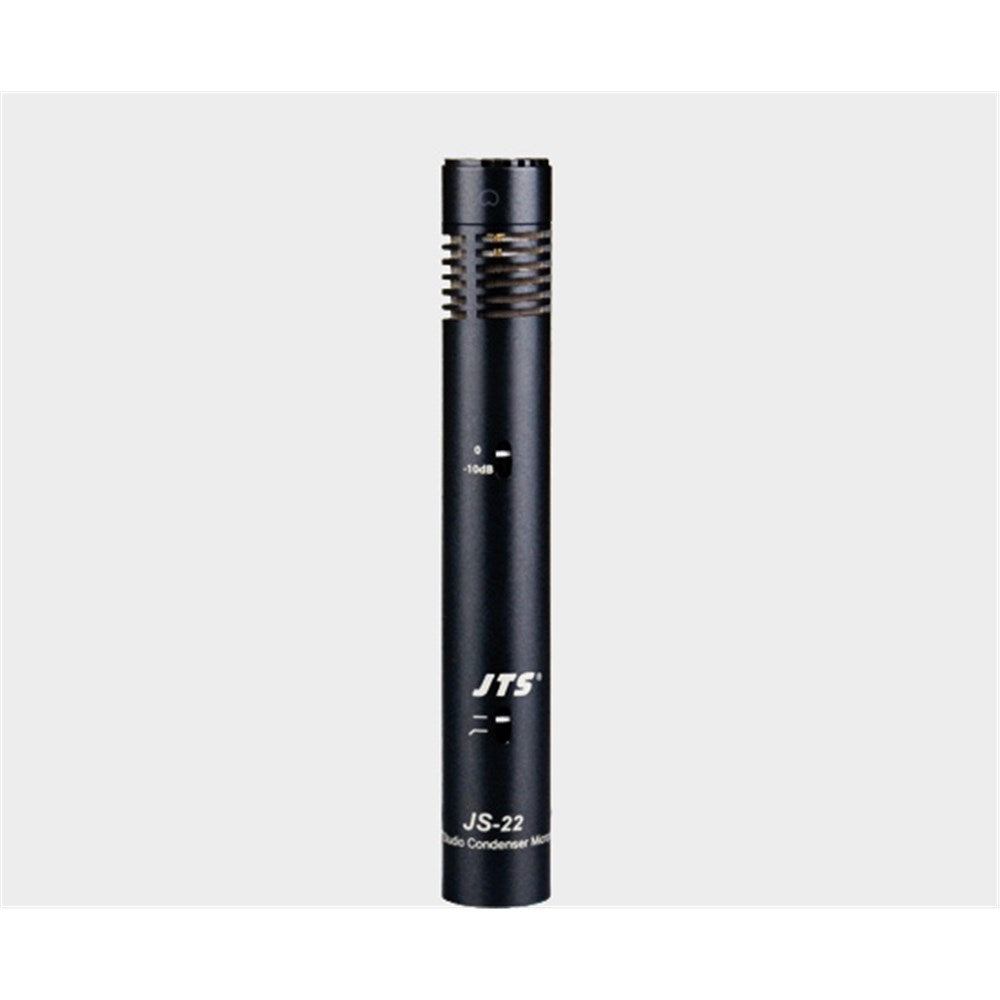

JS-22

Based on the successful experience of JS-1 series, the JS-22 is designed for instrument miking from strings to percussions. The JS-22 is built on a solid brass with accurate processing. The 1/2” golden plated diaphragm is manually assembled by JTS craftsman. The precise designed circuit with low cut and pad feature provides flat response. This microphone royally reproduces any kinds of instruments and vocals.

Good for:

• Acoustic guitar
• Acoustic bass
• Strings
• Piano
• Woodwinds
• Orchestra
• Stereo pick-up

SPECIFICATIONS

Type

• Condenser Mic

Frequency

• Response 20~20,000 Hz

Sensitivity

• -36±3 dB* (15.8mV)
• 0dB=1V /Pa,1kHz

Directional Pattern

• Cardioid

Attenuation Switch

• -10dB

Low Frequency Roll-off

• 80Hz

Impedance

• 100Ω

Max. SPL For 1% T.H.D.

• 140 dB

Signal To Noise Ratio

• 78dB

Power Supply

• 36~52VDC phantom power

Current consumption

• ≤3mA

Output

• XLR-M type(power module)

Dimensions(mm)

• Ø22.5mm(W) * 150.5mm(H)
