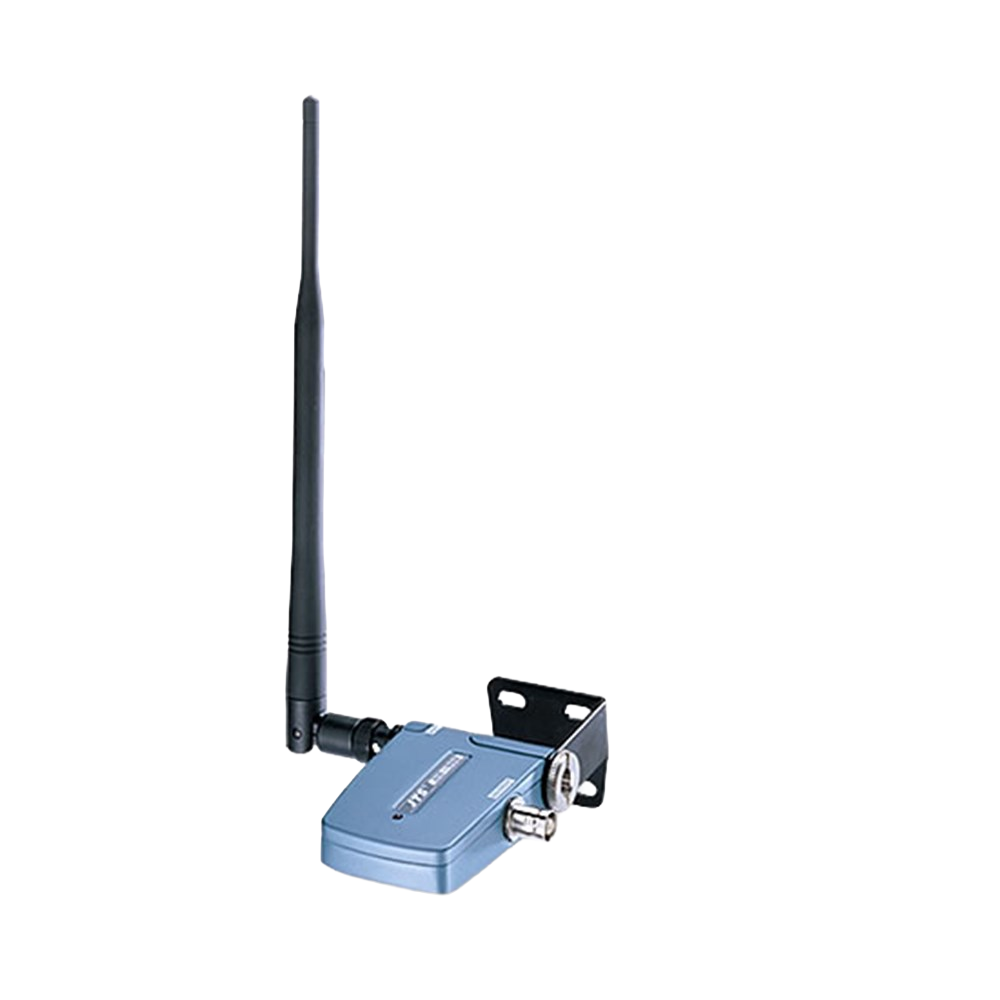

UB-900i

UB-900i is designed to compensate signal loss on long antenna cables or passive antenna splitter. One UB-900i can compensate 10dB of cable attenuation which is about 20 meters of RG-58 cable.

This product is powered by power output from antenna distributor UA-960 or from receivers’ BNC connecter. DC power supply is indicated by a red LED. Up to two UB-900i can be cascaded.

SPECIFICATIONS

Frequency Band

• 494~870MHz

Power Supply

• 8~12V, Max 25mA/1 unit

Dimension(mm)

• 75mm * 18.2mm * 77mm (Antenna & Rack Mount Kit Excluded)

Weight

• 136g (Antenna & Rack Mount Kit Excluded)
