JP-JSS20B9

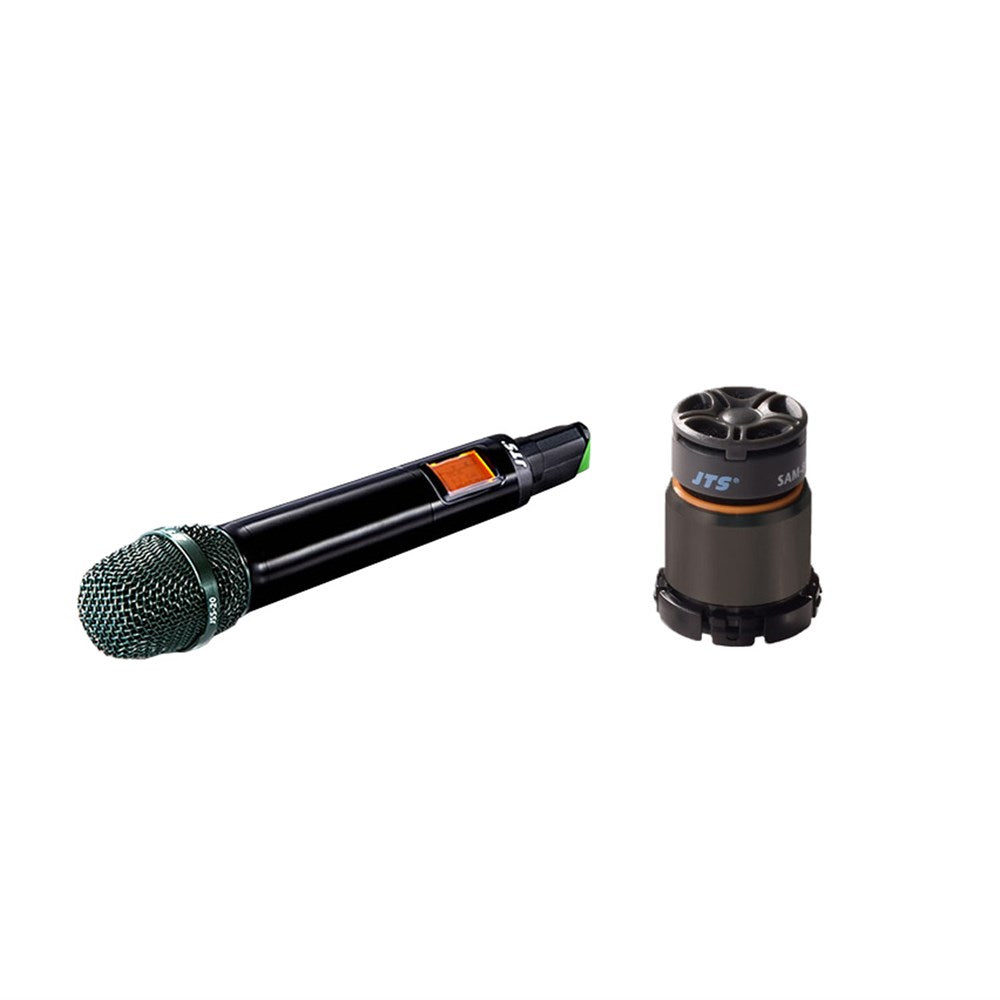

JSS-20 transmitter 624-694MHz hand-held with SAM-8 capsule for UF-20 system

JSS-20

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Adjustable transmission power between Low and High

NEWEST FEATURE :

• Low cut function.

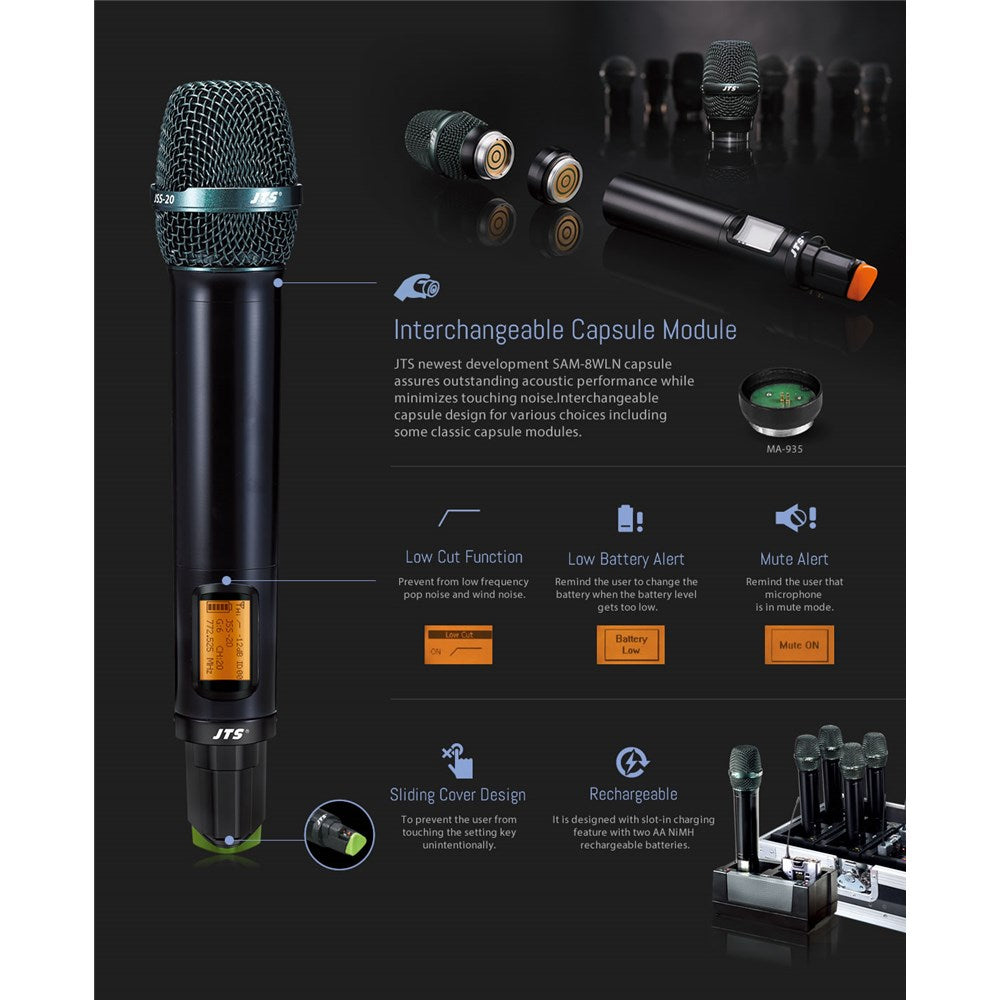

• JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
• Interchangeable capsule design for various choices including some classic capsule modules.
• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• UHF 624-694MHz

Bandwidth

• 60~75MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ±48KHz (Peak)

LCD Display

• Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust

Controls

• Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Spurious Emissions

• <-50 dBC

Audio Frequency Response

• 50Hz ~ 18k Hz

Capsule Module

• Interchangeable

Battery

• AA NiMH x2

Dimensions

• 50mm (W) x253mm (H) x35.5mm (D)

Weight

• 350g

Notes

• Actual product specifications may vary depending on model and region.

SAM-8LN

SAM-8LN is one of best dynamic capsule with broadly frequency response, dynamic range and extremely low touch noise.
