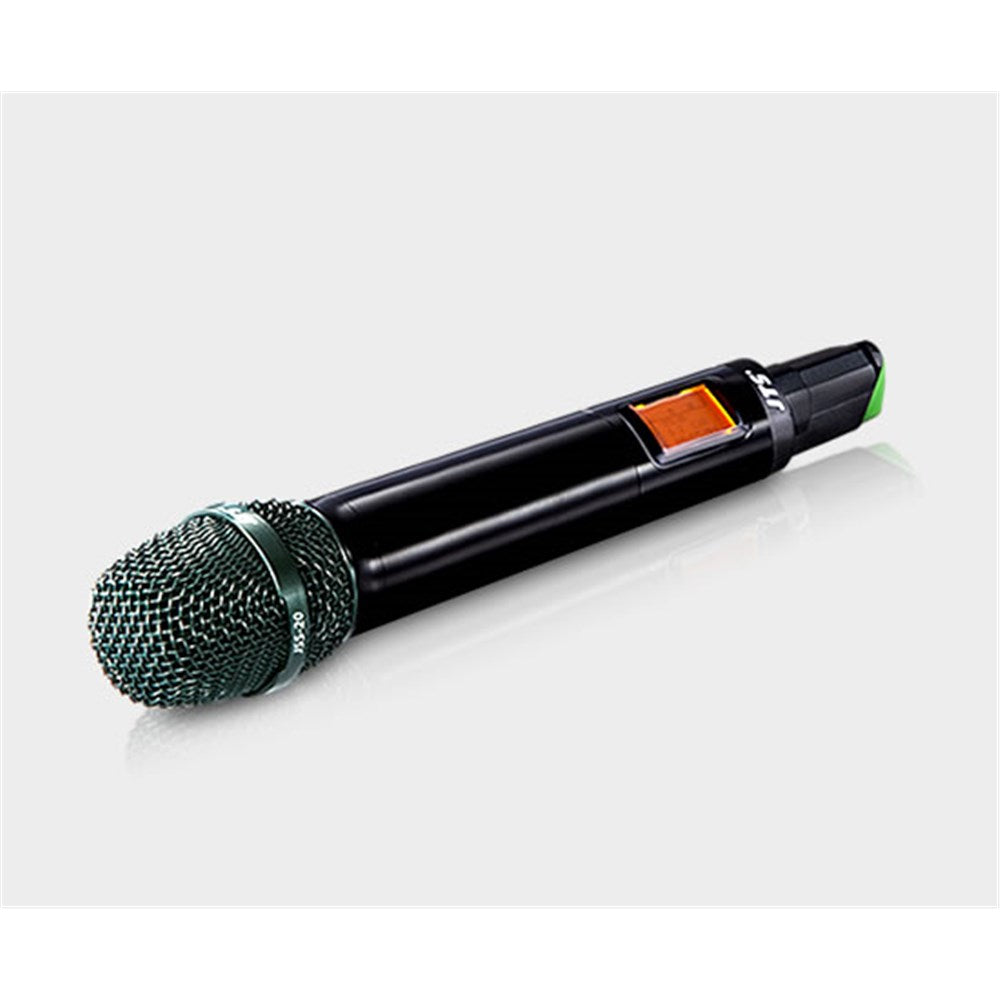

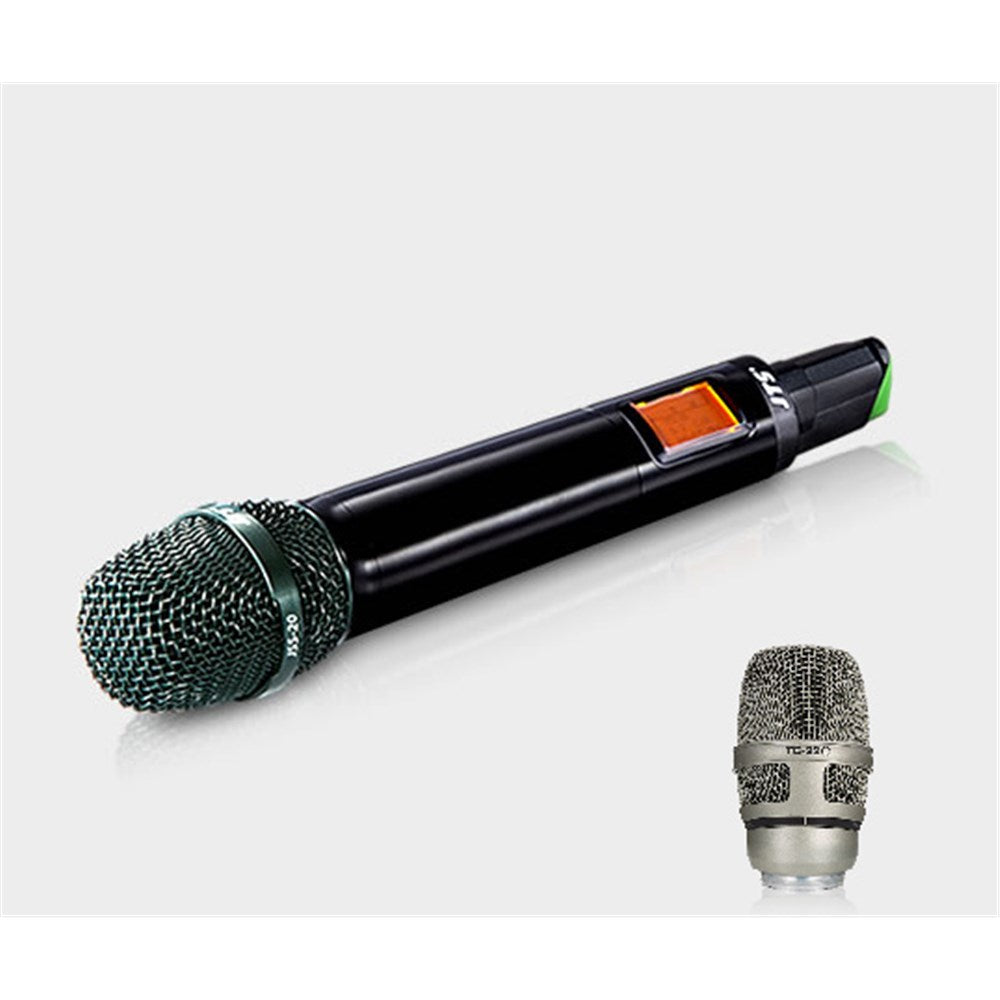

JSS-20

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Adjustable transmission power between Low and High

NEWEST FEATURE :

• Low cut function.
• JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
• Interchangeable capsule design for various choices including some classic capsule modules.
• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• UHF 624-694MHz

Bandwidth

• 60~75MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ±48KHz (Peak)

LCD Display

• Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust

Controls

• Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Spurious Emissions

• <-50 dBC

Audio Frequency Response

• 50Hz ~ 18k Hz

Capsule Module

• Interchangeable

Battery

• AA NiMH x2

Dimensions

• 50mm (W) x253mm (H) x35.5mm (D)

Weight

• 350g

Notes

• Actual product specifications may vary depending on model and region.

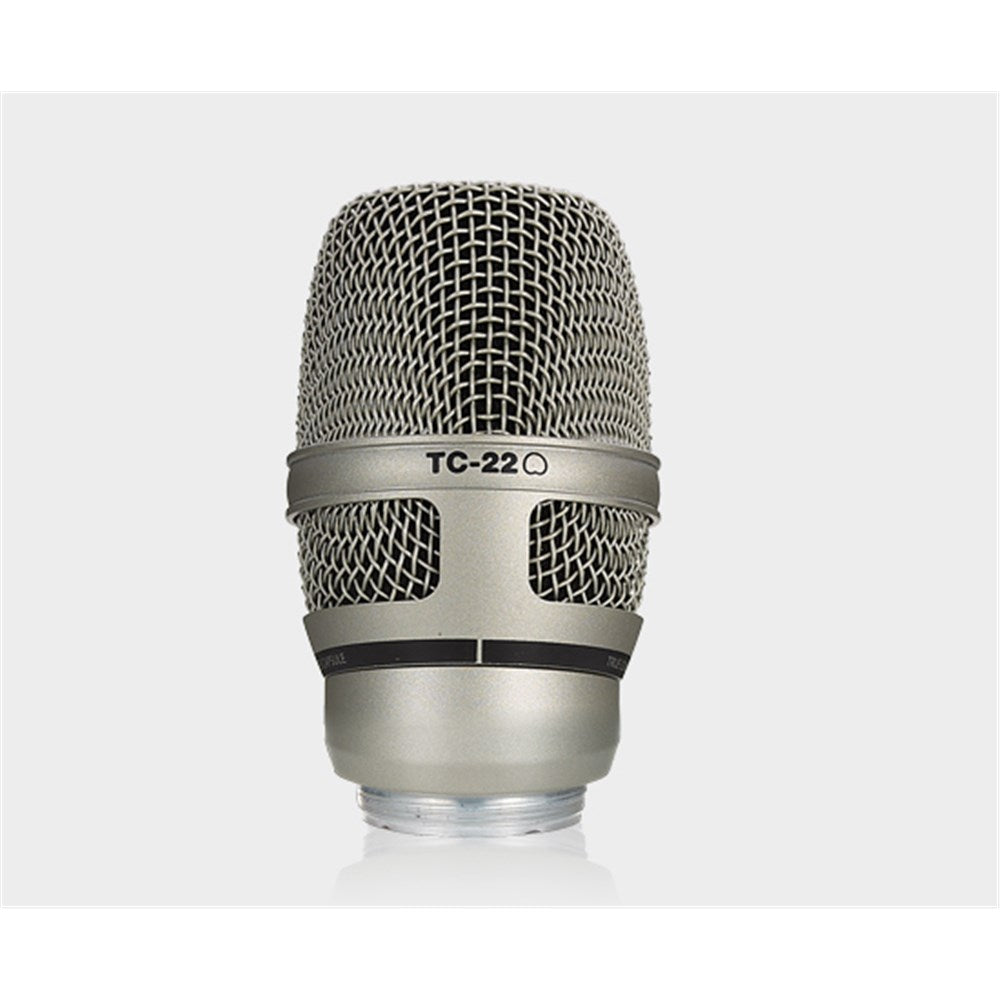

TC-22

The TC-22 is designed for wireless transmitter. It brings studio performance onto the stage. It specially fit JTS JSS-20, JSS-4 and Shure* wireless transmitters. It is a reasonably priced product for top musicians.
Note: Shure is a brand owned by Shure Incorporated.

SPECIFICATIONS

Type

• Condenser

Polar Pattern

• Cardioid

Frequency Response

• 50~18,000 Hz

Sensitivity (1,000 Hz)

• -68±3 dB* (0.4mV) *0dB=1V /μbar

Impedance

• Rated impedance is 2kΩ

Max. SPL for 1?THD

• 150dB

Power Supply

• 4~6VDC

Polar Pattern

• Cardioid

Current consumption

• ?1mA

Connector Interface

• Gold-plated PC board contact

Net Weight

• 143grams
