JP-JSS4BB1

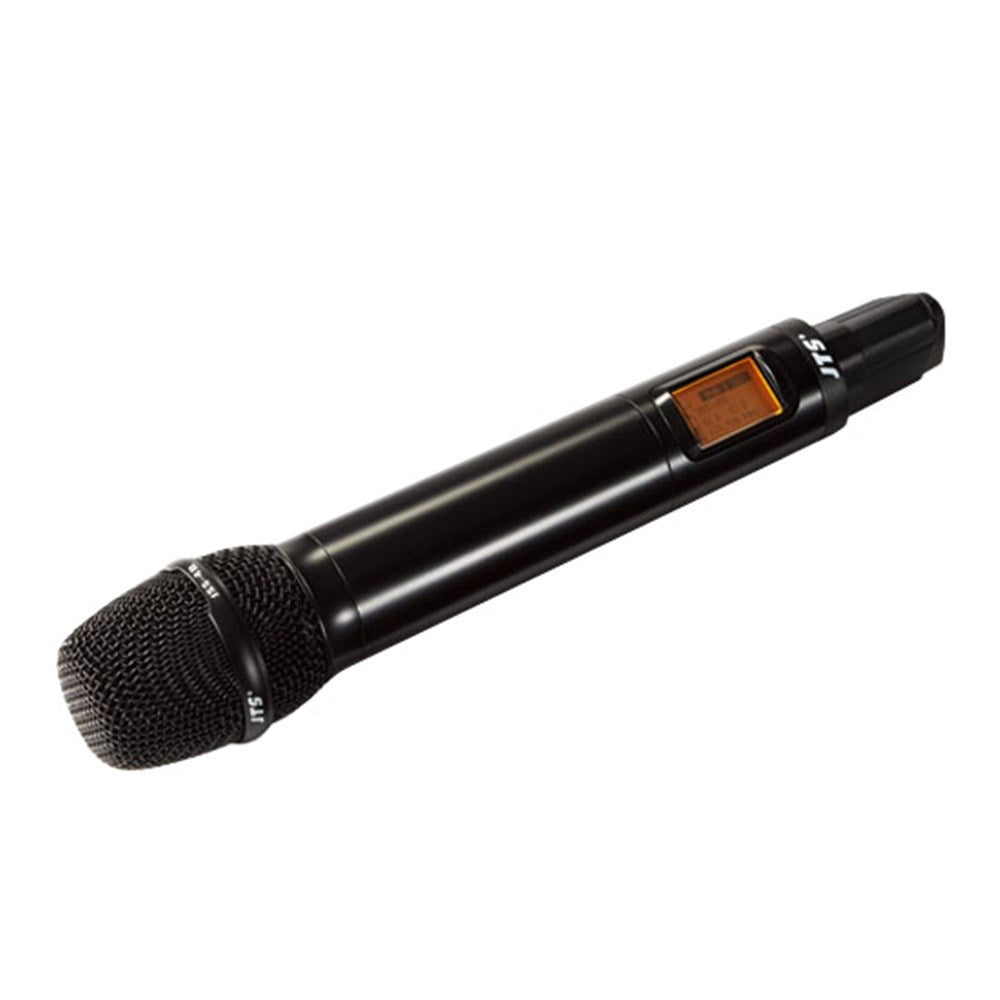

JSS-4B hand-held transmitter, with premium SAM-8 dynamic capsule

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Extended dynamic range and smooth frequency response.
• Adjustable transmission power between Low and High
• The panel Lock-On function prevents tampering and RF interruption
• Together with JTS various capsules preferred miking is assured.
• With TC-22 true condenser capsule (option)

NEWEST FEATURE:

• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• • B1: UHF 520~556 MHz
  • B4: UHF 638~674 MHz

Bandwidth

• 108MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ± 48KHz (Peak)

Chassis

• Aluminium alloy

LCD Display

• Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Controls

• Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector

• 4P Mini XLR

Spurious Emissions

• <-50 dBC

Audio Frequency Response

• 50Hz ~ 18k Hz

Battery

• UM3, AA x2

Dimensions

• 50mm (W) x253mm (H) x35.5mm (D)

Weight

• 93g

Notes

• Actual product specifications may vary depending on model and region.
