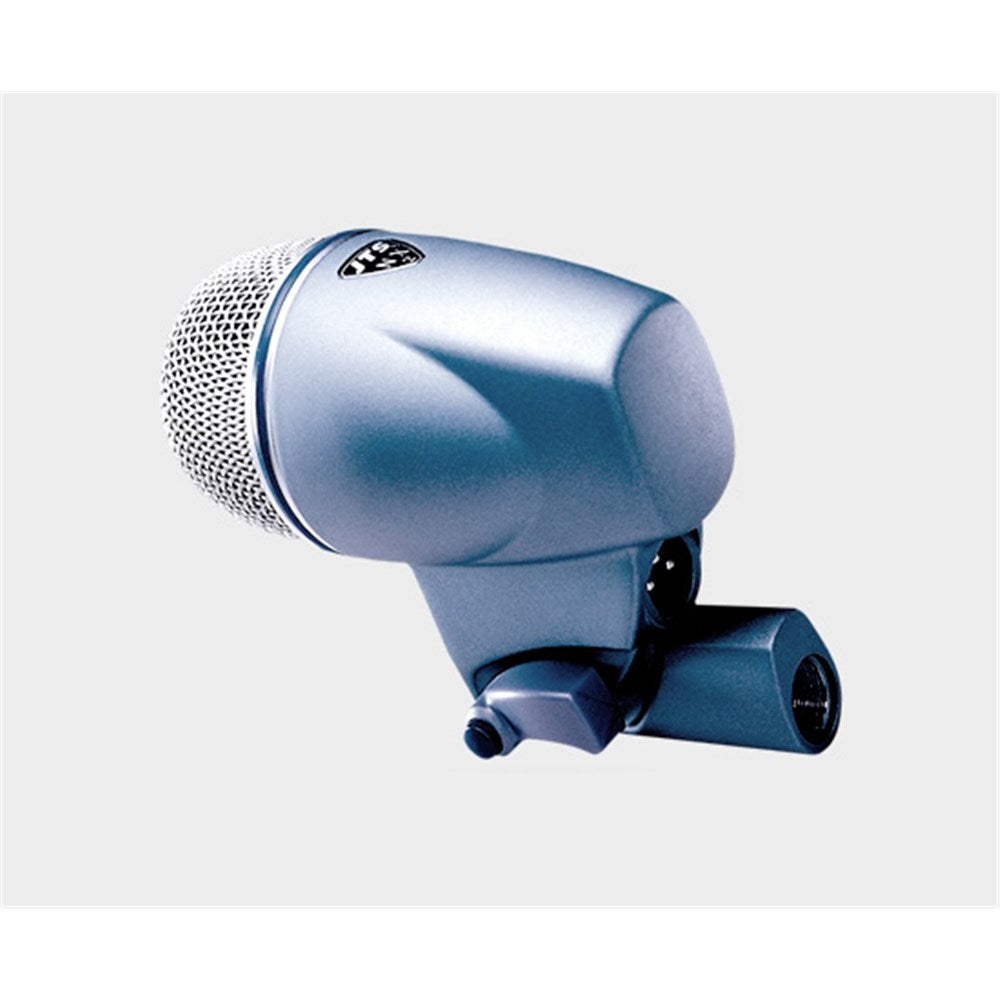

NX-2

The NX-2 is born for solving the problem in low frequency sound faced by most microphones. The specially designed frequency response provides excellent output of low end punch on a kick drum. Accurate pick-up pattern ensures the best gain-before-feedback and isolation from other sound sources on or off stage. The NX-2 is optimal for kick drum and other bass instruments.

SPECIFICATIONS

Type

• Moving Coil Dynamic

Frequency Response

• 20~12,000 Hz

Polar Pattern

• Supercardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz)

• -85dB*(0.056mV)*0dB=1V/μbar

Impedance

• 600Ω

Phasing

• Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

• Three-pin professional audio connector (male XLR type)

Case

• Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through

Adjustable Locking Mount

• 180°

Net Weight

• 815 grams (28.75 oz)
