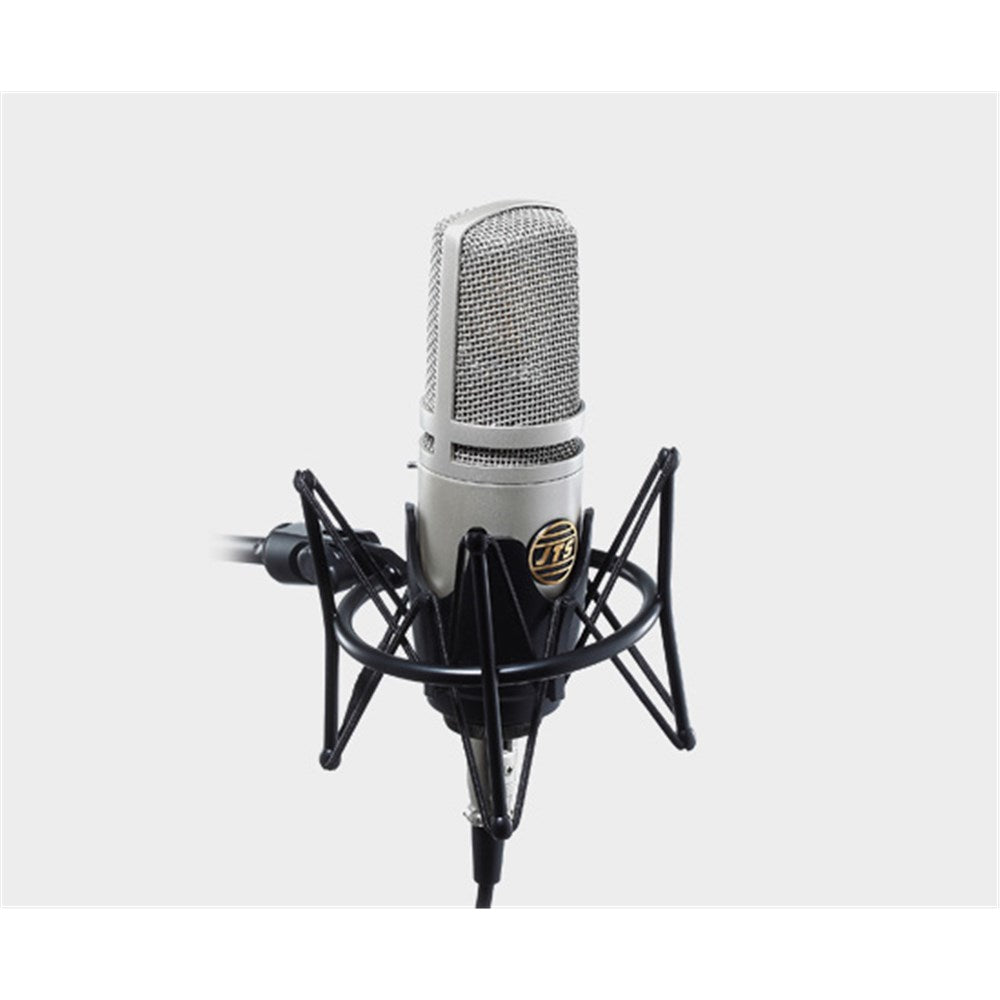

JS-1

The JTS JS-1 is a studio microphone designed for use in the most demanding applications. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all-purpose microphone. Included with the JS-1 a versatile shock-mount with standard 5/8”-27 threads.

SPECIFICATIONS

Type

• Large Diaphragm Condenser Mic

Frequency Response

• 20~20,000 Hz

Sensitivity(at 1000Hz)

• -38 dB* (12.6mV) 0dB=1V /Pa

Directional Pattern

• Cardioid

Attenuation Switch

• 10dB

Low Frequency Roll-off

• 80Hz

Impedance

• 200 Ω

Max. SPL For 1% T.H.D.

• 132 dB

Signal To Noise Ratio

• 78dB

Power Supply

• 36-52 VDC phantom power

Current Consumption

• ≤1mA

Output

• 3Pin XLR (M) (power module)

Net Weight

• 480 grams(16.9oz)

Dimensions(mm)

• Ø56mm(W)* 184mm(H)
