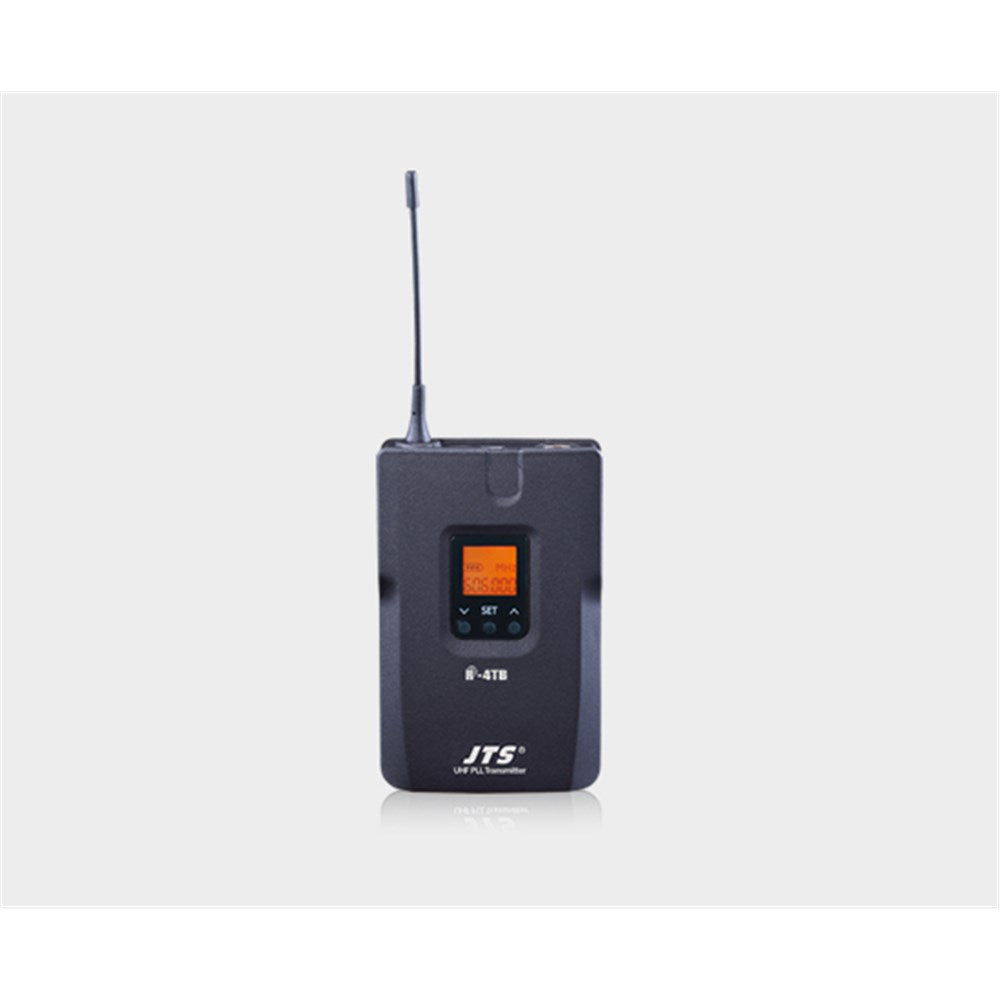

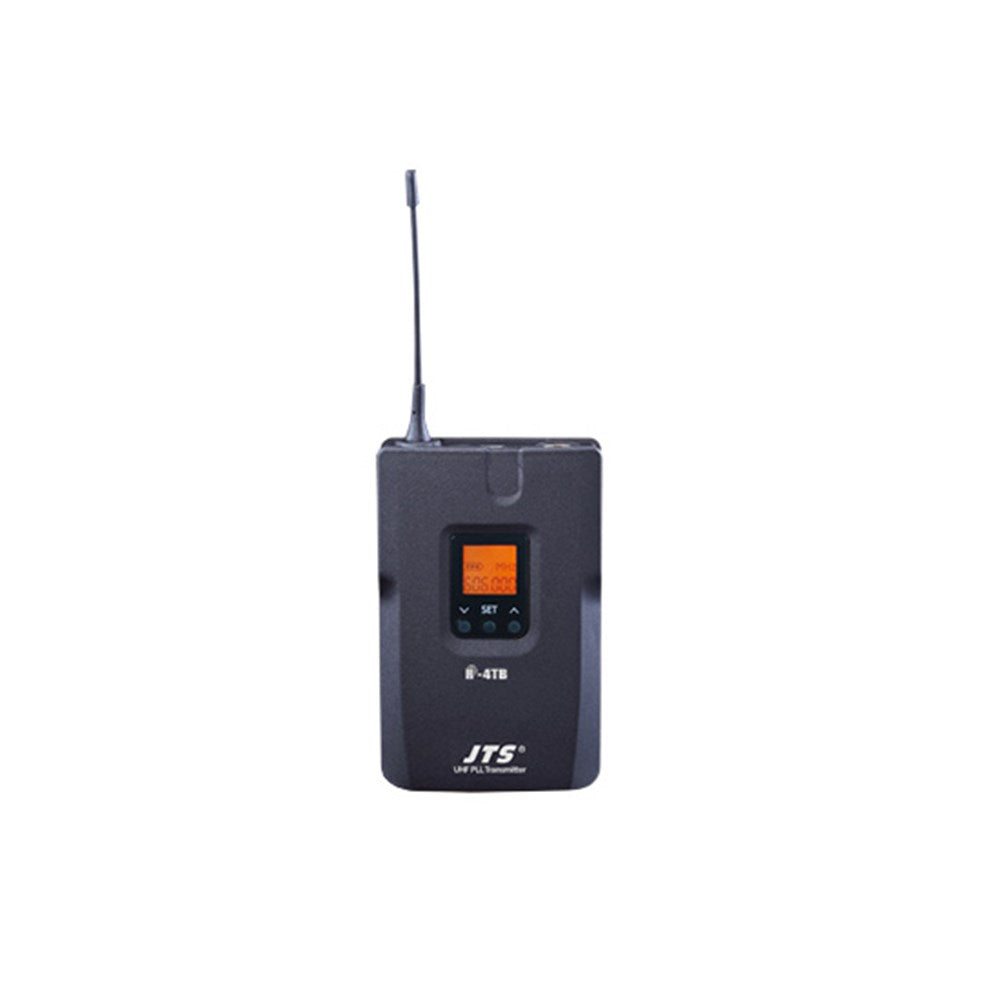

R-4TB

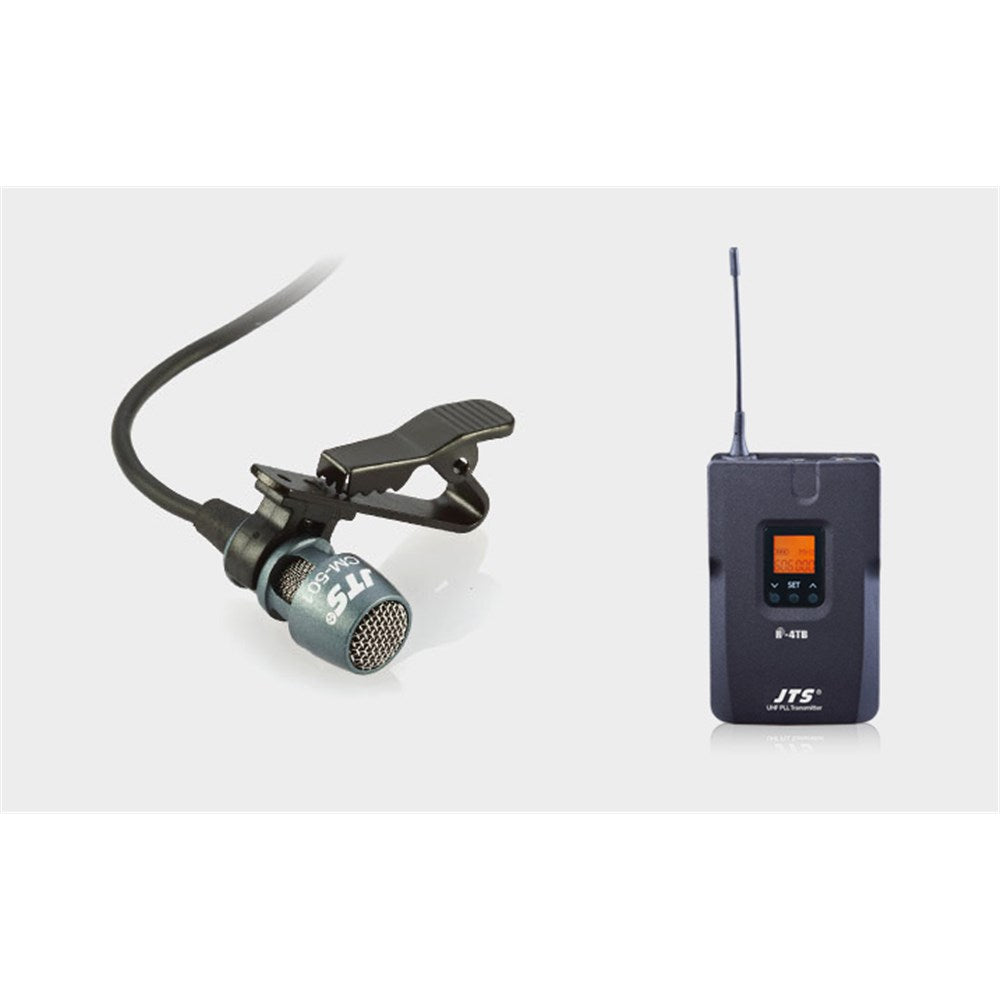

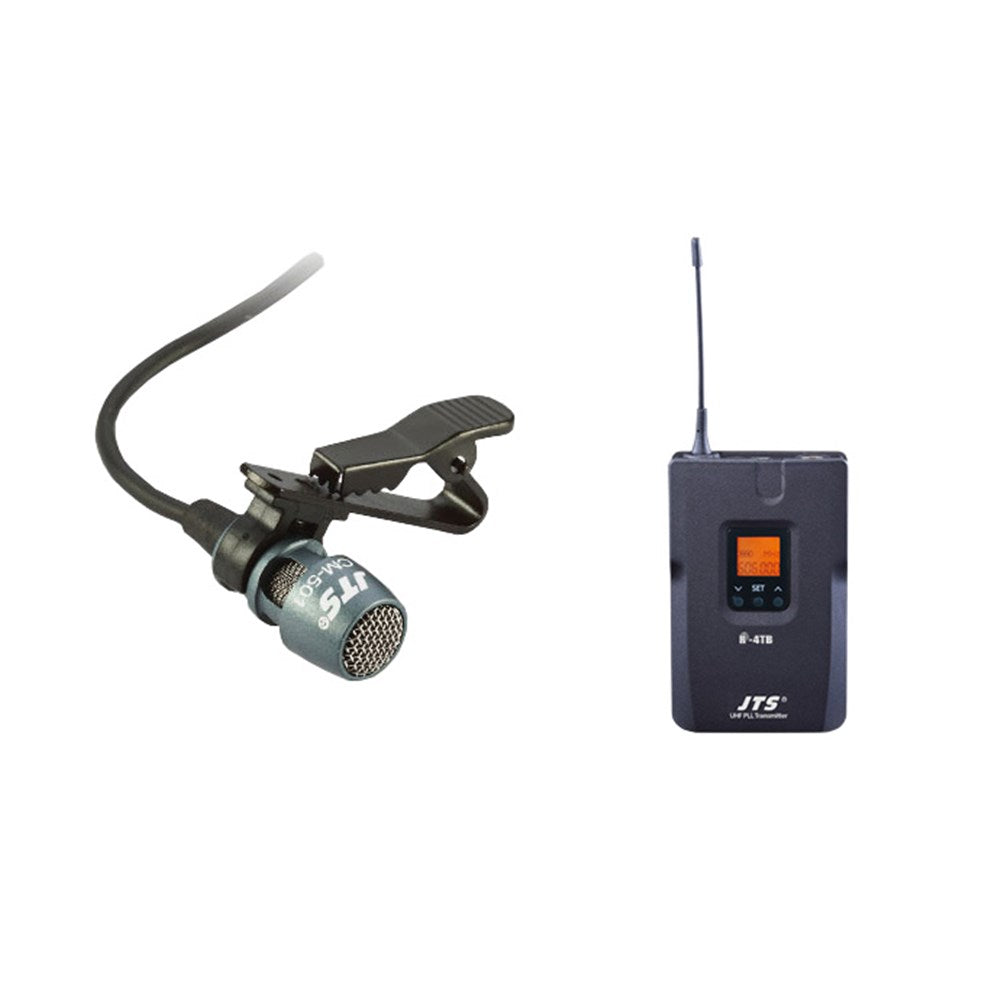

 R4-TB transmitter belt-pack inc CM-501 lapel mic for R-4 system

R-4TB

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Extended dynamic range and smooth frequency response.
• Adjustable transmission power between Low and High
• The panel Lock-On function prevents tampering and RF interruption
• Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

NEWEST FEATURE:

• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• • B1: UHF 520~556 MHz
  • B4: UHF 638~674 MHz

Bandwidth

• 108MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ± 48KHz (Peak)

Chassis

• Plastic

LCD Display

• Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Controls

• Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector

• 4P Mini XLR

Spurious Emissions

• <-50 dBC

Audio Frequency Response

• 50Hz ~ 18k Hz

Battery

• UM3, AA x2

Dimensions

• 62.3mm (W) x97.5mm (H) x20mm (D)

Weight

• 75g

Notes

• Actual product specifications may vary depending on model and region.

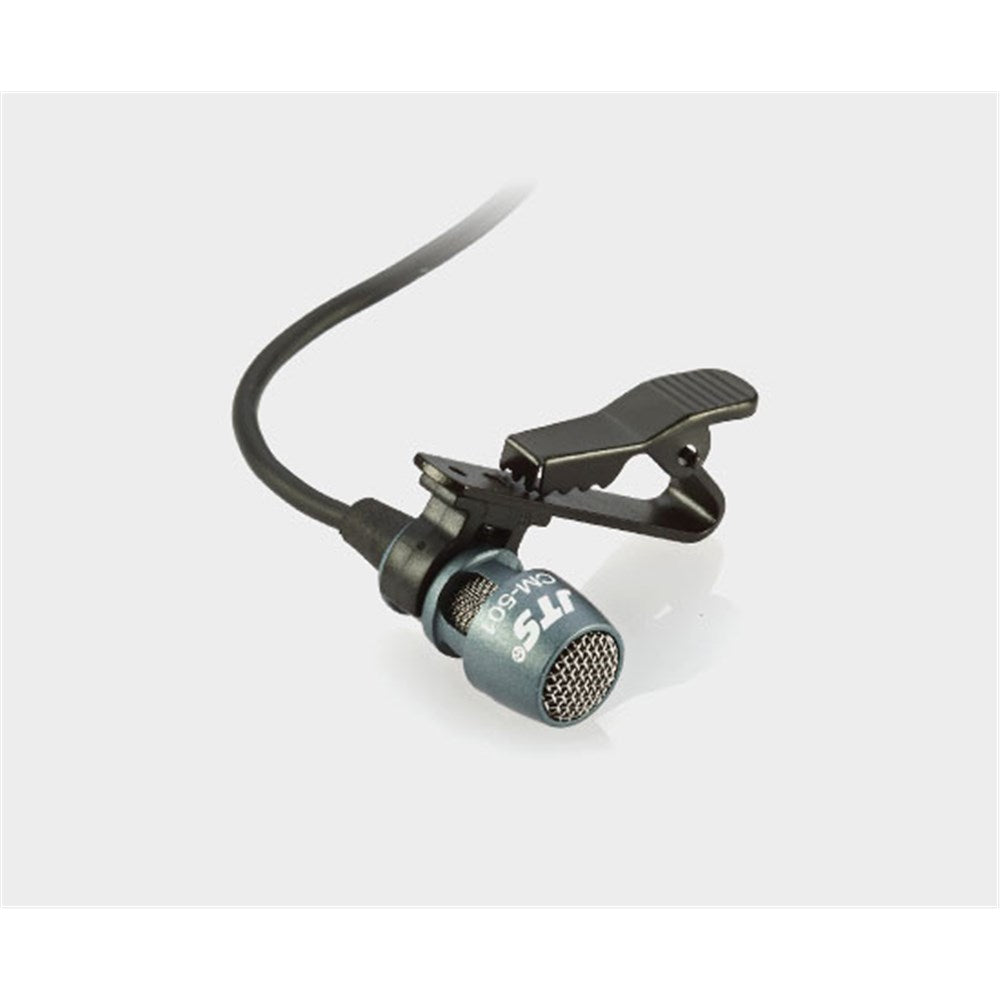

CM-501
Uni-direction for high-quality voice pick-up.
Wide dynamic range and frequency response for excellent sound reinforcement.
Small size for minimum visibility.
Together with clip for easy attaching to a tie, lapel, dress etc.
SPECIFICATIONS

Connector

4P Mini XLR

Frequency Response

100~15,000 Hz

Polar Pattern

Cardioid

Sensitivity (at 1KHz)

-60±3 dB* (1mV)*0dB=1V/μbar

Impedance

2.2kΩ

Max. SPL for 1% THD

130dB

Dimension(mm)

Ø10.1mm(W)* 26.4mm(H)

Net Weight

21.5g
