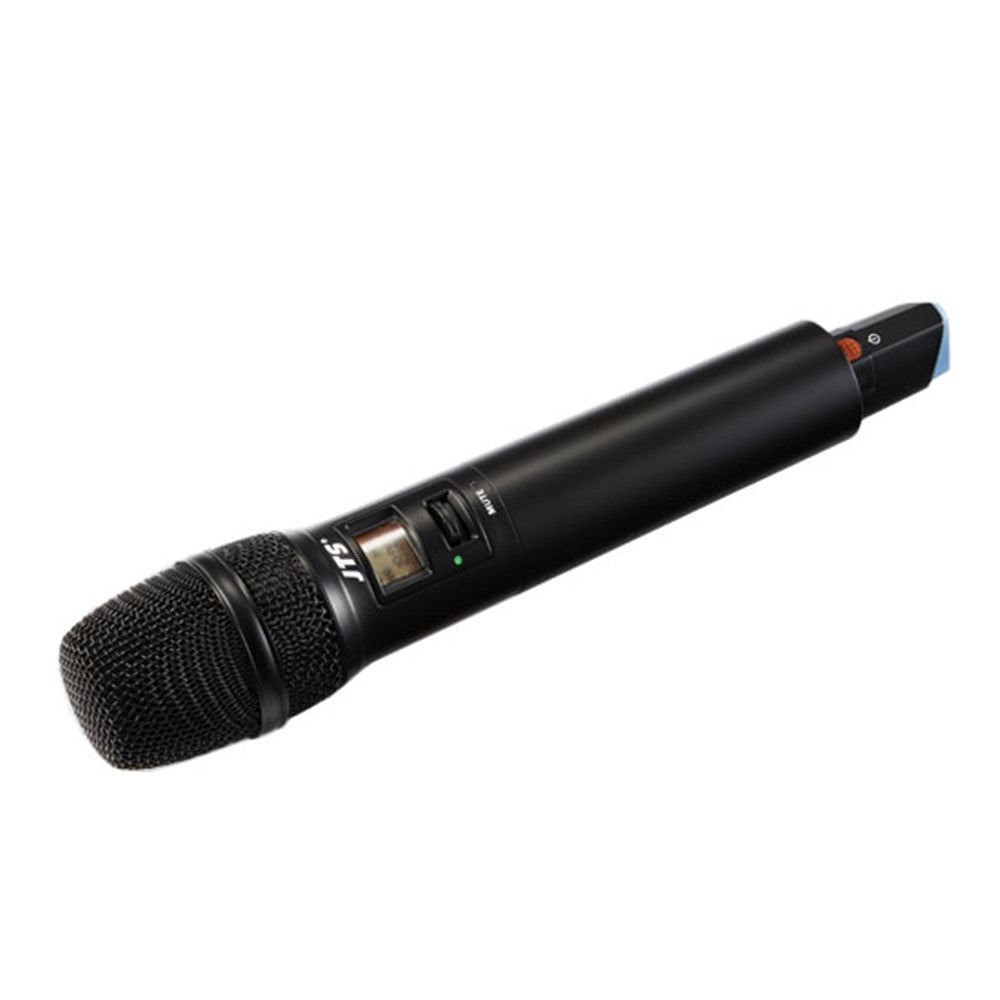

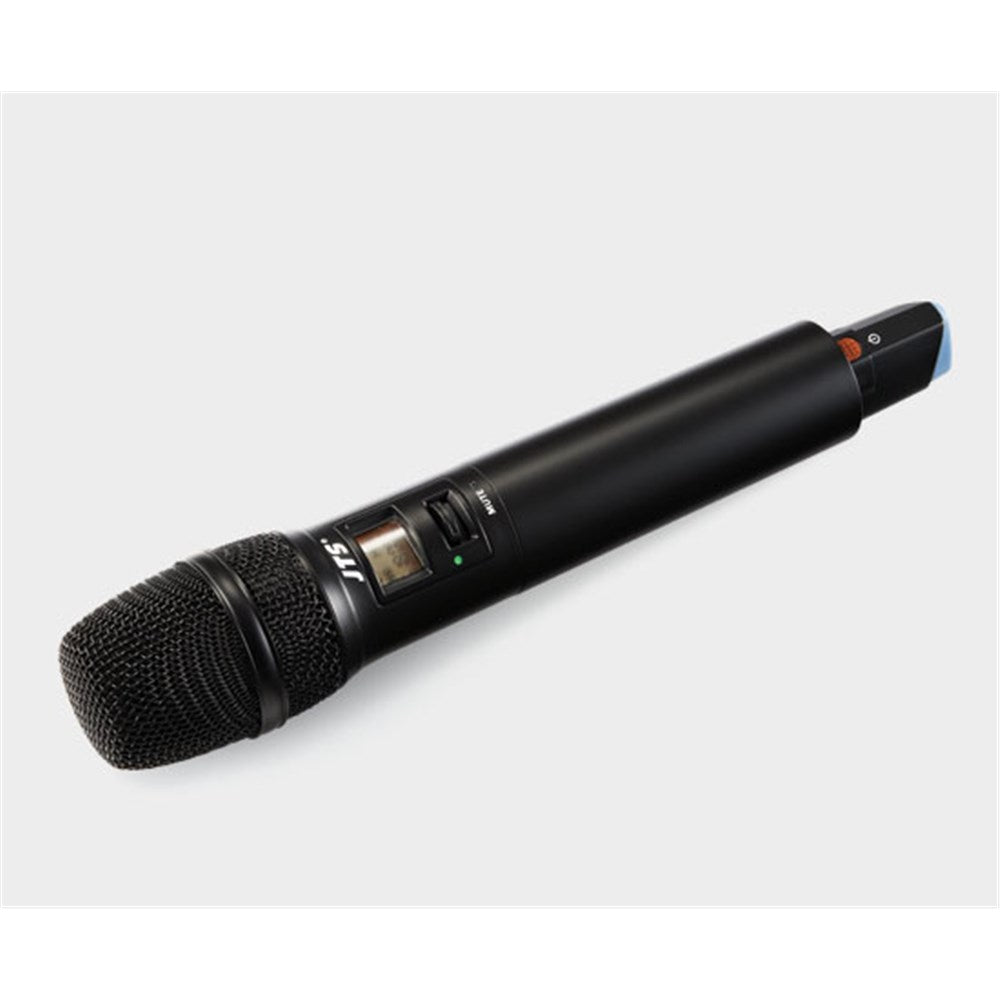

R4-THA hand-held transmitter, dynamic capsule

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Adjustable transmission power between Low and High

NEWEST FEATURE:

• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• • B1:UHF 520~566 MHz
  • B4:UHF 638~674 MHz

Bandwidth

• 108MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ±48KHz (Peak)

LCD Display

• Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust

Controls

• Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Spurious Emissions

• <-50 dBC

Audio Frequency Response

• 50Hz ~ 18kHz

Battery

• UM3, AA x2

Capsules Module

• Interchangeable

Dimensions

• 50(W) x 253(H) x 35.5(D)

Weight

• 350g

Notes

• Actual product specifications may vary depending on model and region.
