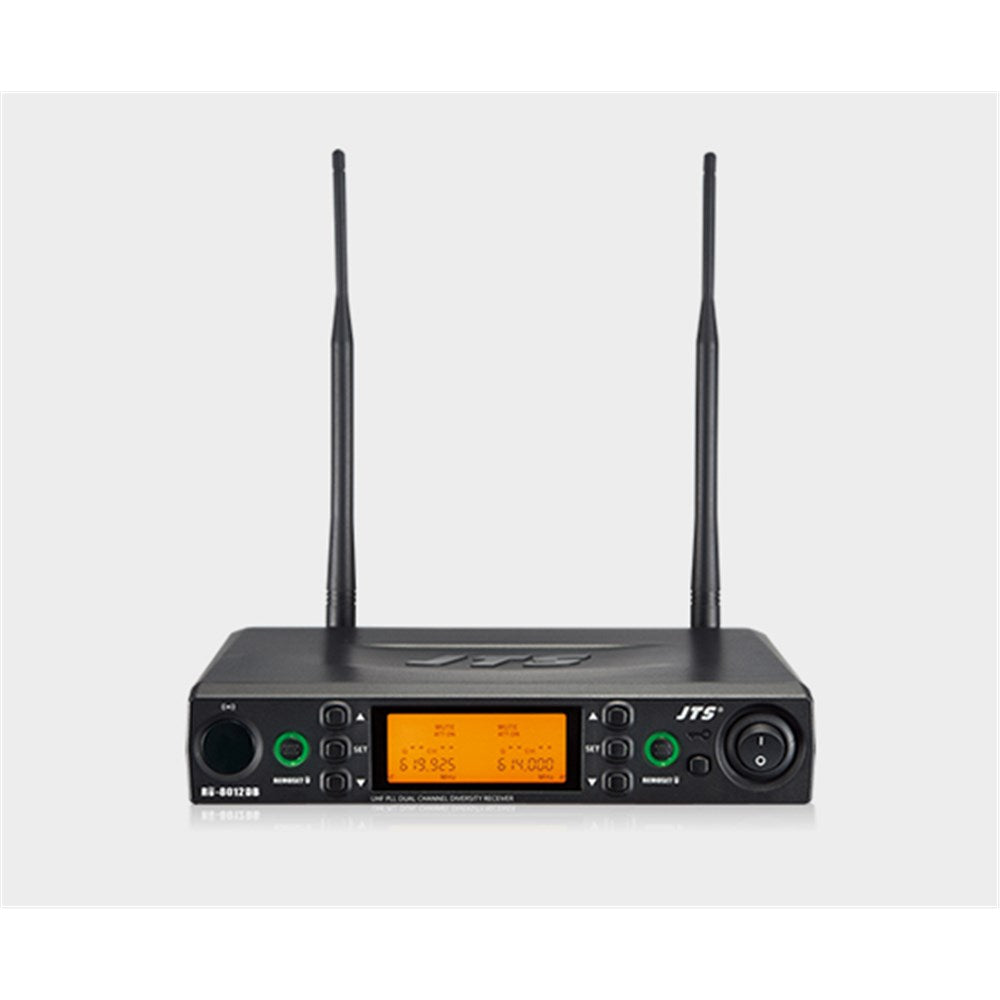

JP-RU8012DBB4

8012DB 2-channel receiver, 638-674MHz, 1 RU half width

Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand
general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 638-674MHz

Frequency Setting

• Ultrasonic / REMOSET (Transmit)

Receiving Mode

• Antenna Diversity

Bandwidth

• 36MHz

S/N Ratio

• > 105dB

T.H.D

• <0.6%@1KHz

Sensitivity

• -95dBm,S/N>80dB

Rejection Ratio

• >80 dB

Frequency Response

• 50Hz~16KHz±2dB

Antenna Type

• BNC Socket

Antenna Booster Power

• DC12~15V/100mA

Display Contents

• Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status

Display

• LCD

Controls

• Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad

Audio Output Level

• Ref/ ±22.5KHz Dev@1KHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line) . -24dBV(MIC)

AF Output Impedance

• 600Ω

Squelch

• Pilot Tone, Noise and Mute

Output Connector

• 2 independent balanced XLR and 2 Ø6.3mm unbalanced.

Power Supply

• DC12~15V/500mA

Dimension(m/m)

• 212.3mm(W)* 38.3mm(H)* 144mm(D)
