JP-8012DBKITHBB4

8012DB system 638-674MHz

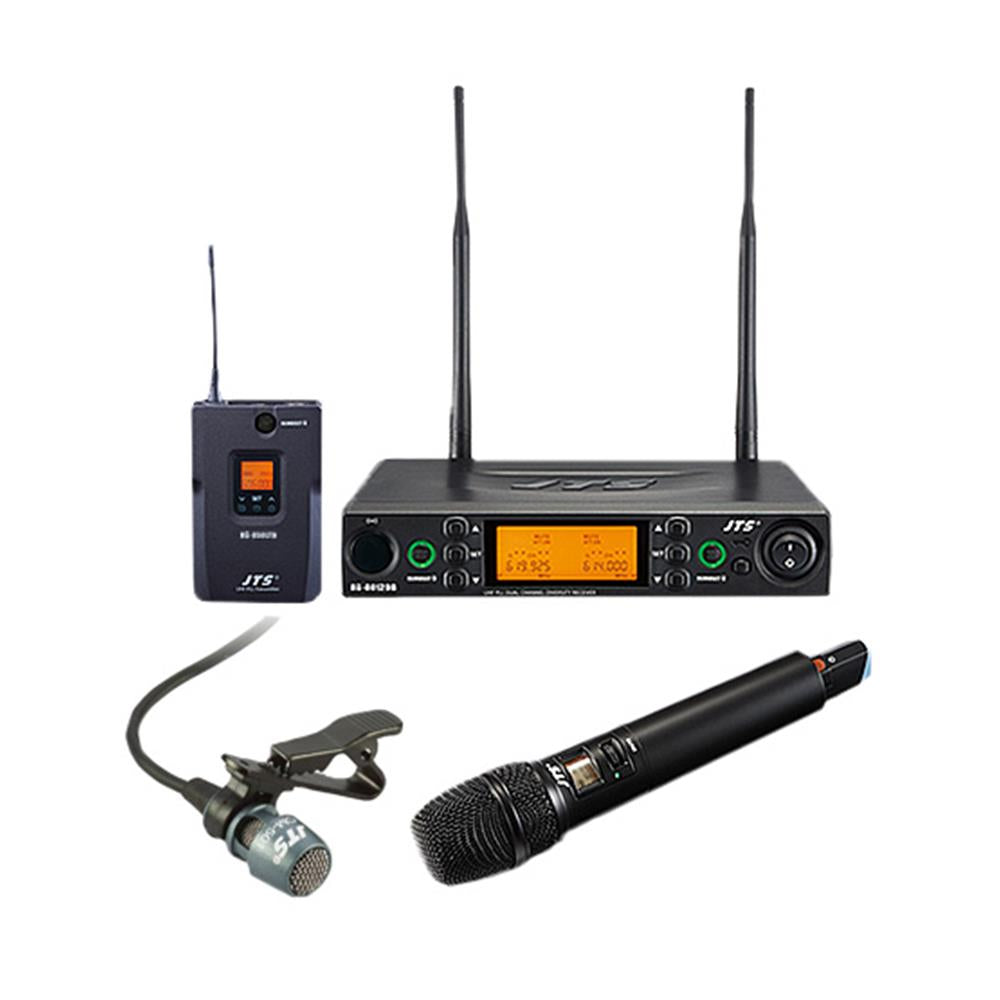

System Includes

• RU8012DB Reciever
• RU850LTH Handheld Transmitter
• RU850LTB Belt-Pack Transmitter
• CM-501 lapel mic

8012DB System

Base on the successful experience of US-8002DB, the RU-8012DB is designed with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

SPECIFICATIONS

RU-8012DB

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	638-674MHz
Frequency Setting	Ultrasonic / REMOSET (Transmit)
Receiving Mode	Antenna Diversity
Bandwidth	36MHz
S/N Ratio	>105dB(A)
T.H.D	<0.6%@1KHz
Sensitivity	-95dBm,S/N>80dB
Rejection Ratio	>80 dB
Frequency Response	50Hz~16KHz±2dB
Antenna Type	BNC Socket
Antenna Booster Power	DC12~15V/100mA
Display	LCD
Display Contents	Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls	Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Level	Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ? -24dBV(MIC)
Audio Output Impedance	600Ω
Squelch	Pilot Tone & Noise Mute
Output Connector	2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply	DC12~15V/500mA
Dimension (mm)	212.3mm(W)* 38.3mm(H)* 144mm(D)
Notes	Acutal product specifications may vary depending on model and region

RU-850LTH

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	638-674MHz
Frequency Setting	REMOSET U(Receive)
RF Outpus	Low / High
Stability	<±10KHz@Fc
Frequency Deviation	±48KHz
Spurious Emissions	<-50dBc
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display	LCD+LED
Controls	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery	UM3, AA x2

RU-850LTB

Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	638-674MHz
Frequency Setting	REMOSET U(Receive)
RF Outpus	Low / High
Stability	<±10KHz@Fc
Frequency Deviation	±48KHz
Spurious Emissions	<-50dBc
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display	LCD+LED
Input Connector	4P Mini XR
Controls	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery	UM3, AA x2

CM-501
Connector	4P Mini XLR
Frequency Response	100~15,000 Hz
Polar Pattern	Cardioid
Sensitivity (at 1KHz)	-60±3 dB* (1mV)*0dB=1V/μbar
Impedance	2.2kΩ
Max. SPL for 1% THD	130dB
Dimension(mm)	Ø10.1mm(W)*  26.4mm(H)
Net Weight	21.5g
