JP-RU850TBB1

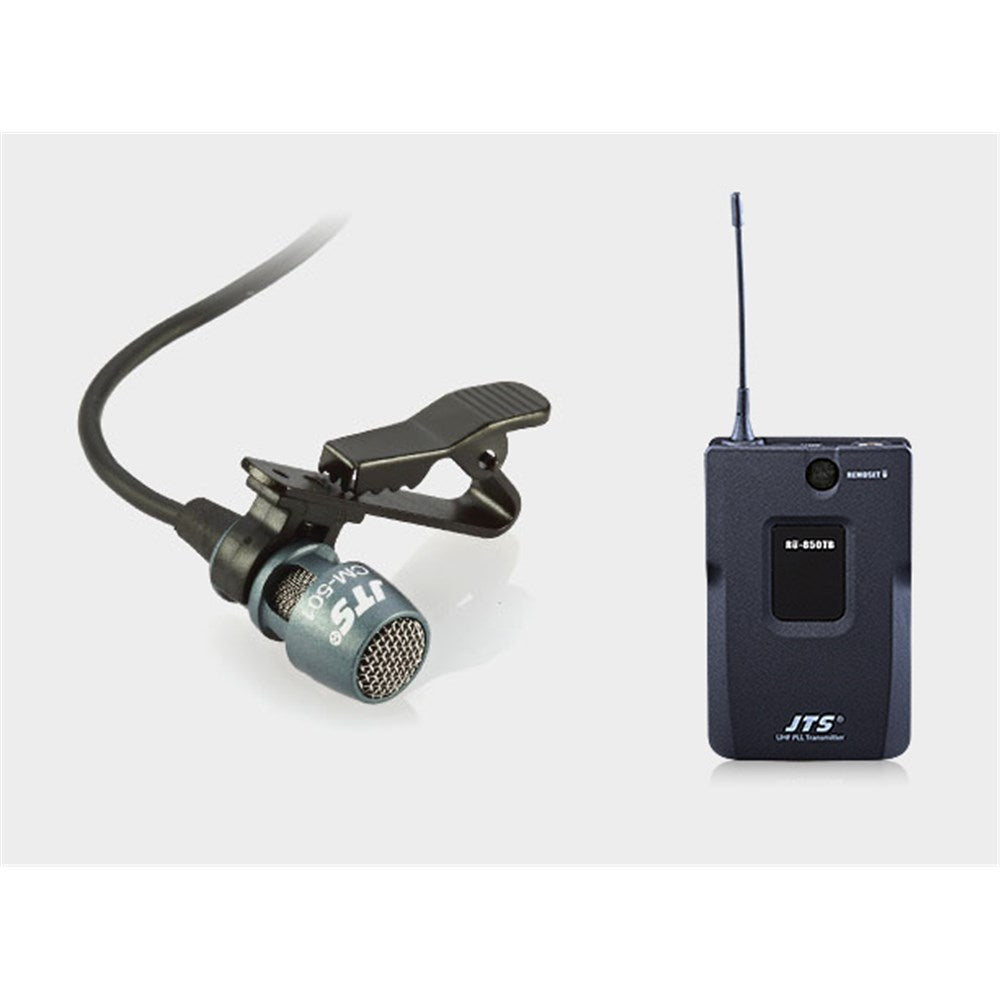

RU850TB transmitter 520-556MHz belt-pack inc CM-501 lapel mic for 8011D system

RU-850TB

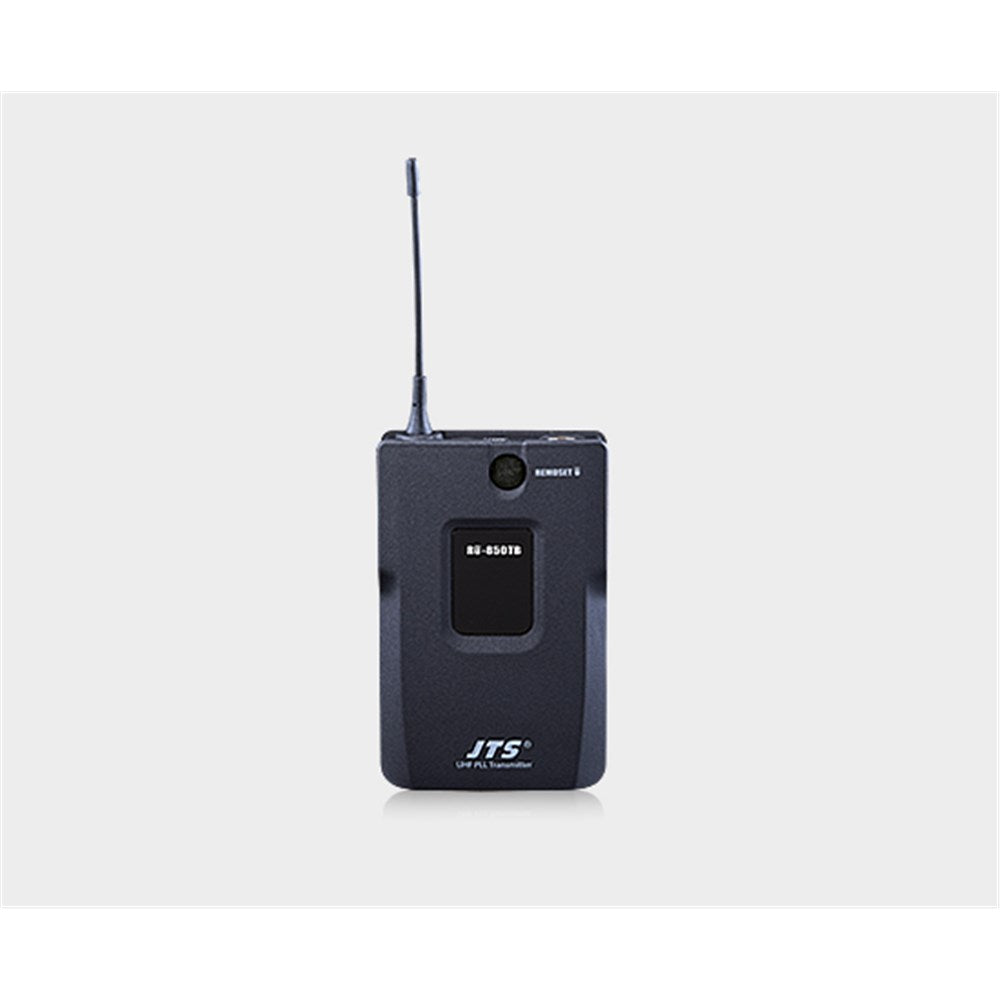

This innovative bodypack transmitter is designed with Power/Mute button only. All adjustments and settings are carried out at receiver side and the transmitter will be set by patent pending REMOSET U. The settings include Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel.

Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. To cope with music instruments a pad of -20 dB is designed in this bodypack transmitter.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 520-556MHz

Frequency Setting

• REMOSET U(Receive)

RF Outpus

• Low / High

Stability

• <±10KHz@Fc

Frequency Deviation

• ±48KHz

Spurious Emissions

• <-50dBc

Function

• Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display

• LED

Input Connector

• 4P Mini XR

Controls

• Power, Mute

Battery

• UM3, AA x2

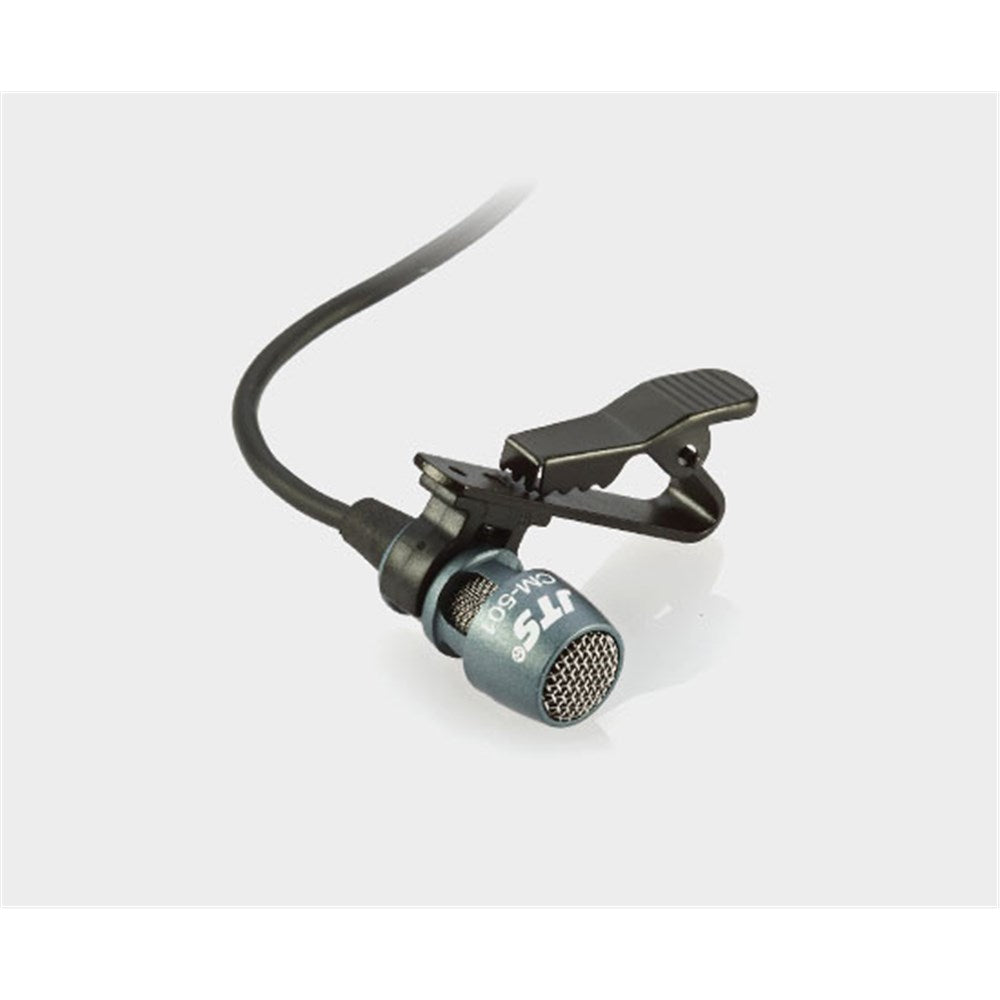

CM-501

• Uni-direction for high-quality voice pick-up.
• Wide dynamic range and frequency response for excellent sound reinforcement.
• Small size for minimum visibility.
• Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS

Connector

• 4P Mini XLR

Frequency Response

• 100~15,000 Hz

Polar Pattern

• Cardioid

Sensitivity (at 1KHz)

• -60±3 dB* (1mV)*0dB=1V/μbar

Impedance

• 2.2kΩ

Max. SPL for 1% THD

• 130dB

Dimension(mm)

• Ø10.1mm(W)* 26.4mm(H)

Net Weight

• 21.5g
