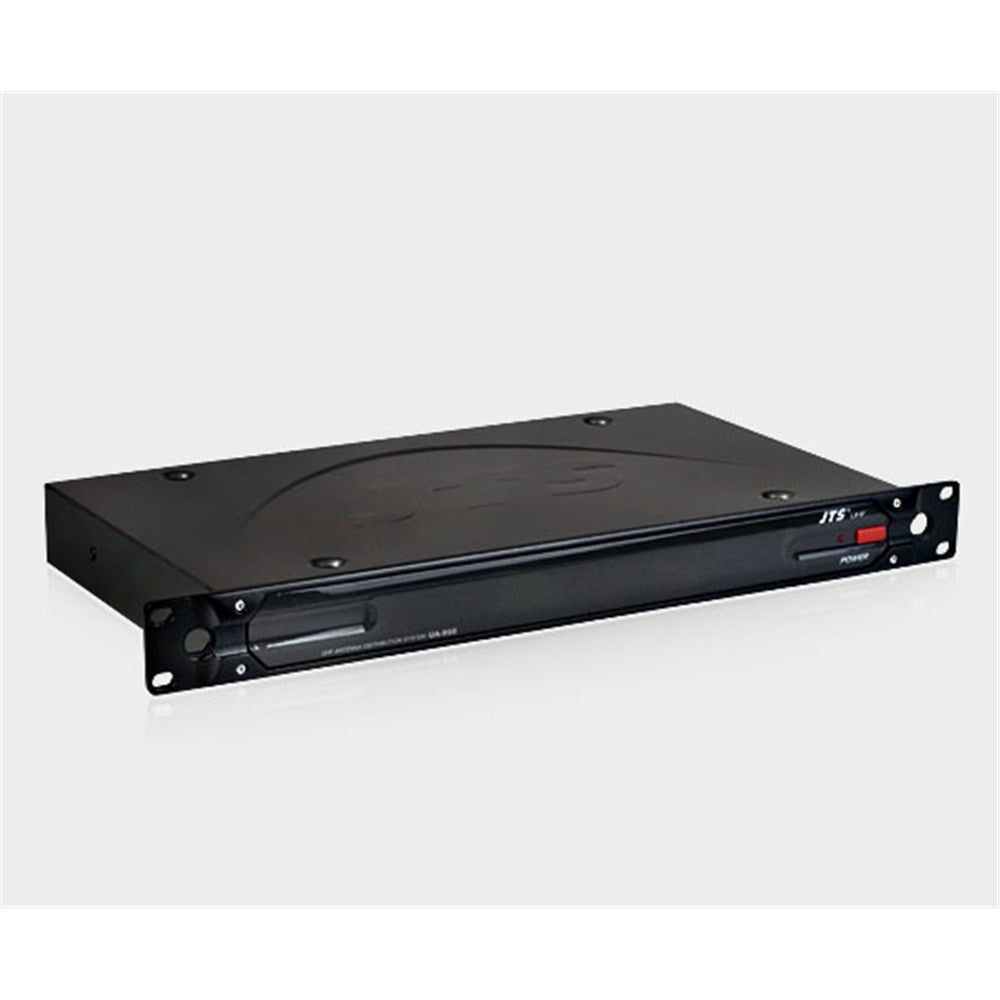

UA-960

The JTS UA-960 is a full range UHF antenna splitter that routes antenna signals from a pair of antenna to several receivers in a multi-channel system.

The UA-960 also amplifies the RF signals to compensate the loss incurred from splitting signal power. Bulit-in DC distribution provides four DC 12V power supply for receivers. A single UA-960 can support up to four wireless receiver. Multiple UA-960 can be cascaded for more wireless receivers. * 1 extra BNC socket that can be easily cascaded with another antenna distributor.

SPECIFICATIONS

Frequency Range

• 470-960 MHz

RF Output Level(Gain)

• 3 dB ± 2

Cascade output level

• 0dB ~ +2dB

Output Connection Isolation

• ≥ 25 dB

Third Order Intercept Point

• 24 dBm

Impedance

• 50 Ohm

Power Consumption

• 60W

Input AC Voltage

• 100 ~ 240 V switching power

Output DC Voltage

• +12V ---1A x 4

Antenna Booster DC Voltage

• 12V

Dimension

• 480(W)*45(H)*250(D) mm(standard 19" and 1 U case)

Net Weight

• 2.15 Kgs
