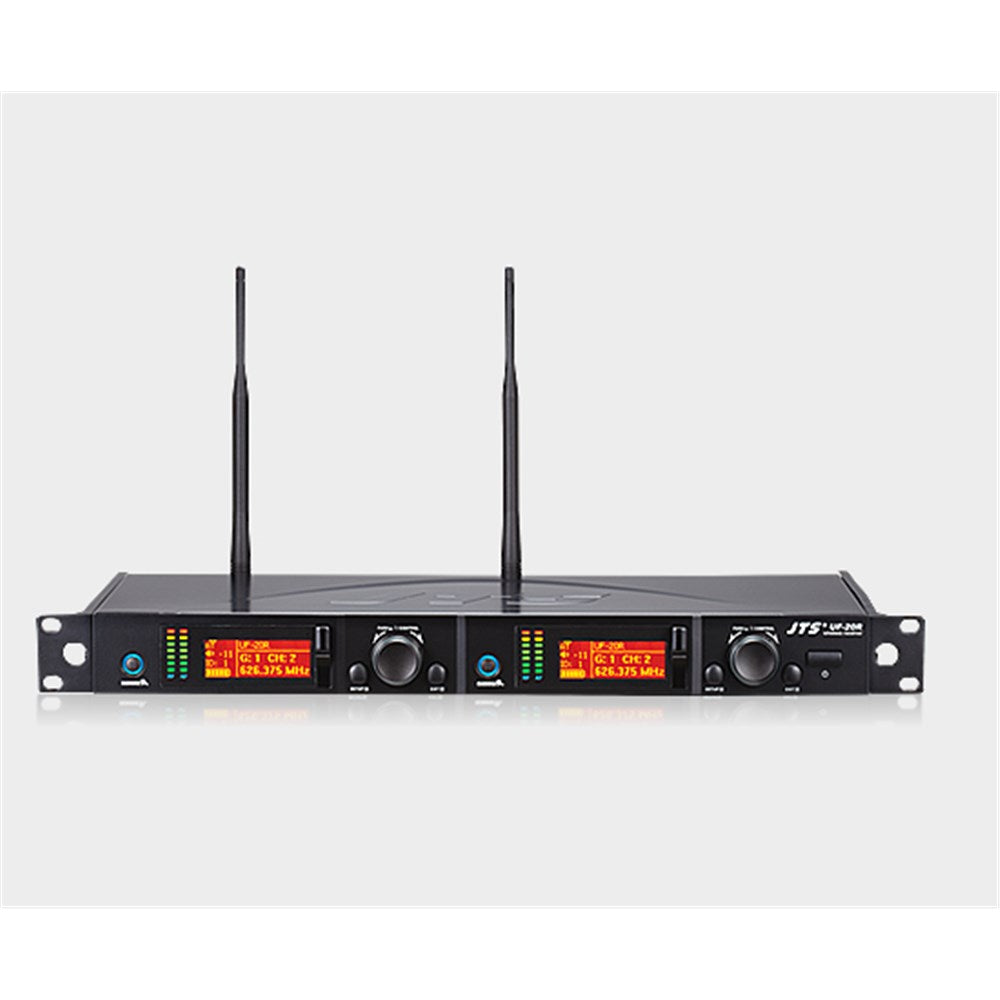

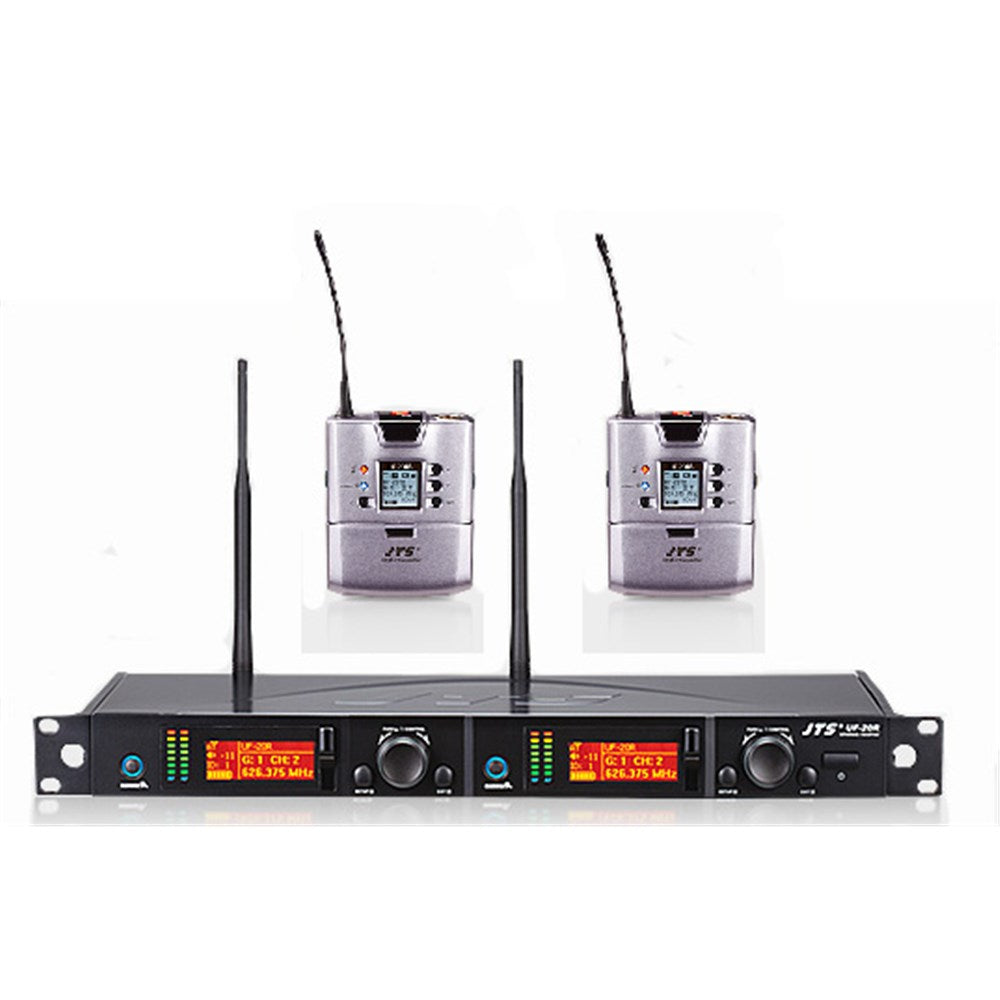

UF-20R

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
* JTS LCX circuit design technology minimizes Companding noise

NEWEST FEATURE:
* The is now not only sends the
frequency data but also transmitter’s RF power,
sensitivity, low cut, key lock and user's name.
* RF “NO SIGNAL” alert function.
* AF “MUTE” alert function.
* Transmitter “LOW BATTERY” alert function.
* Built in equalizer
* Power / Antenna cascading output provided.

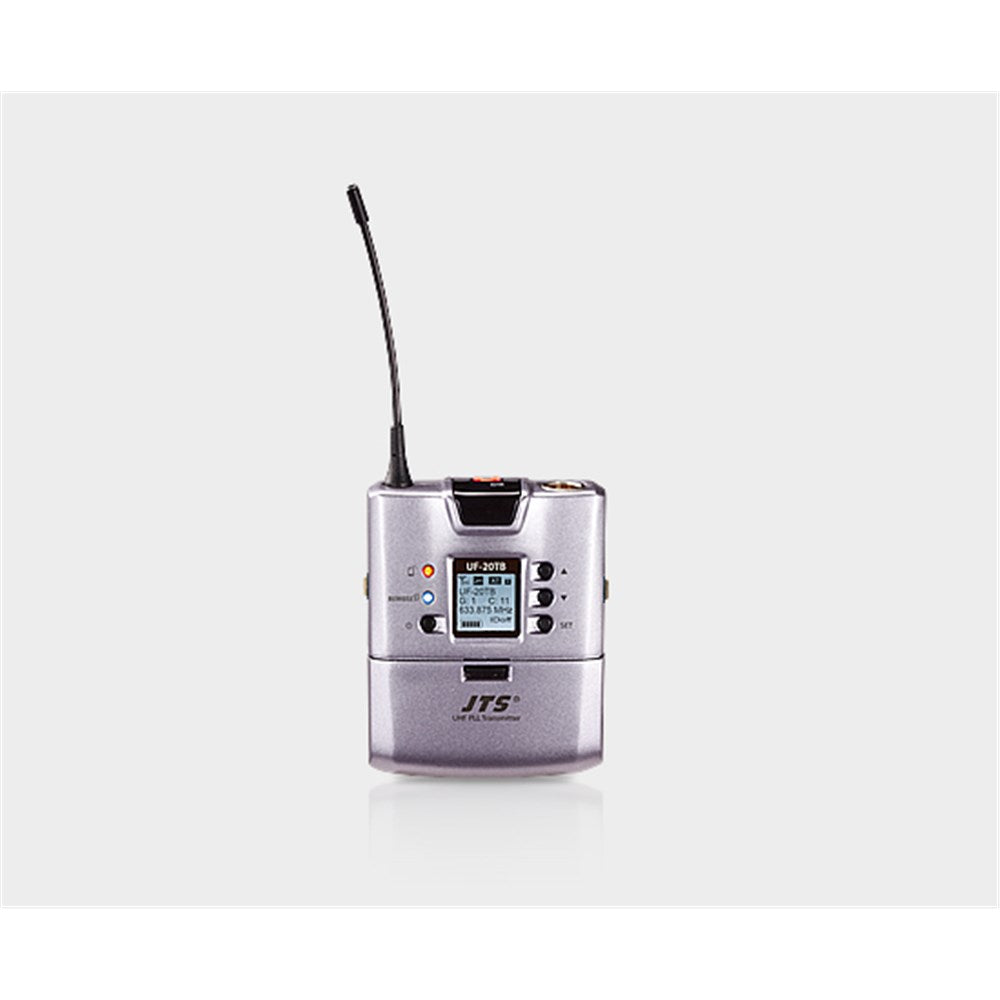

UF-20TB

* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

NEWEST FEATURE:
* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

Specifications

Frequency Preparation

• PLL Synthesized Control

Frequency Setting

• JTS patented obstacles-free RF REMOSET

Carrier Frequency Range

• UHF 470~960 MHz

Channel

• Dual

Bandwidth

• 60~75MHz Wideband

S / N Ratio

• > 108dB (A)

T.H.D

• <0.5% @ 1KHz

Chassis

• 1U standard metal chassis

Preset Channels / Group

• * From group 1 ~ 15 up to 63 interference-free compatible channels.
• * 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
• * User programmable from U1 ~ U6 each of 64 channels reserved.

Display

• LCD

Display Contents

• Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch

Sensitivity

• 6dBμV, at S / N> 80dB

Receiving Mode

• True diversity

Audio Output Level

• Maximum 6dBu

Receiving Mode

• True diversity

Audio Output Level

• Maximum 6dBu

AF Output Impedance

• 600Ω

Frequency Response

• 50Hz ~ 18kHz, with high-pass filter

Squelch

• Pilot Tone & Noise Mute

Power Supply

• 100 ~ 240V or 12V DC

Output Connector

• 2 XLR Balanced Socket
• 2 Ø6.3mm Unbalanced phone jack

Dimension (m / m)

• 480mm (W) 45Mmm (H) 260mm (D)

Notes

• Actual product specifications may vary depending on model and region.

Specifications

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency

• Range UHF 470~960 MHz

Bandwidth

• 60~75MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ± 48KHz (Peak)

Chassis

• Aluminium alloy

LCD Display

• Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Controls

• Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector

• 4P Mini XLR

Spurious

• Emissions <-50 DBC

Audio Frequency Response

• 50Hz ~ 18k Hz

Battery

• AA NiMH x2

Dimensions

• 62mm (W) x80.3mm (H) x22.6mm (D)

Weight

• 93g

Notes

• Actual product specifications may vary depending on model and region.
