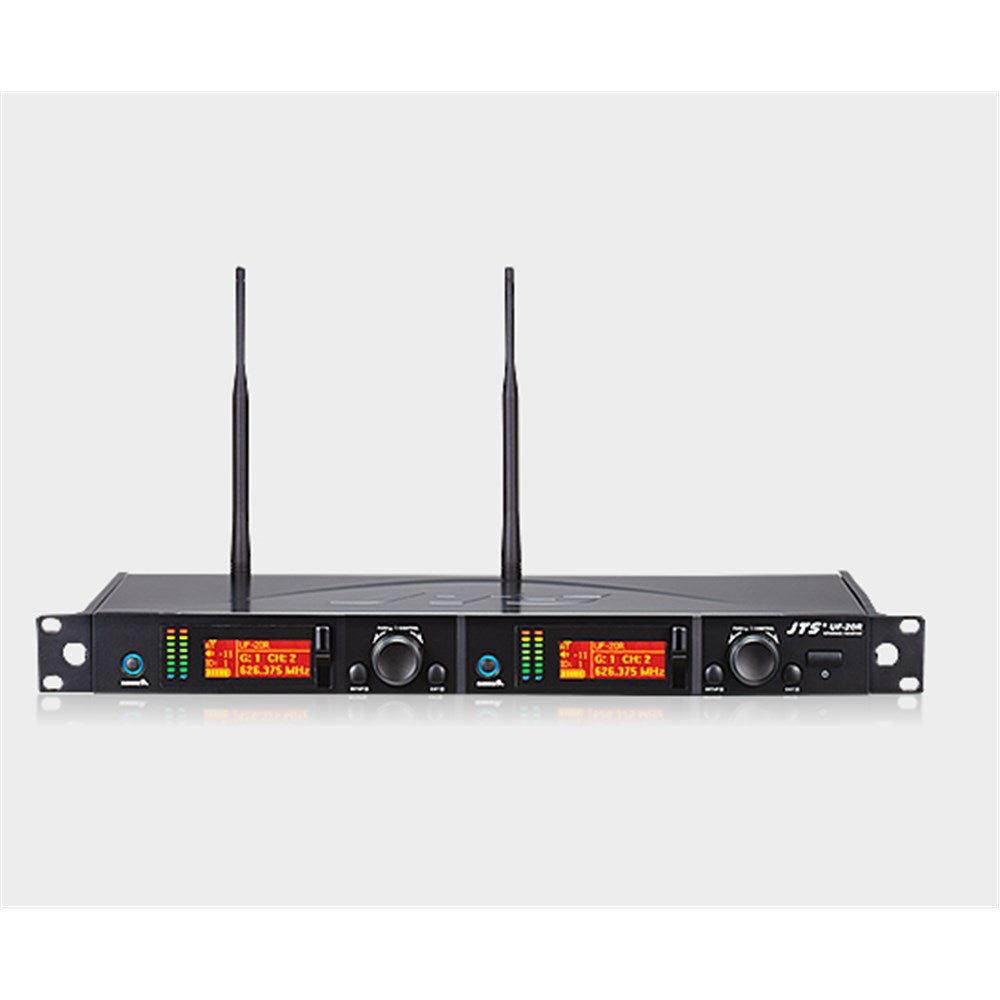

JTS UF20R Receiver 2 Ch true diversity, 1RU, cascade, outputs and power, 624-694 MHz (UF20RB9)

JTS UF20R Receiver 2 Ch true diversity, 1RU, cascade, outputs and power, 624-694 MHz (UF20RB9)

JTS
$1,939.00 AUD

Product Code: JP-UF20RB9

UF-20R

  • UHF True diversity technology renders 200-480 meters of operation distance
  • Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
  • Preset 15 groups each of up to 63 compatible channels
  • User programmable 6 groups each of 64 channels
  • Free space scan function
  • JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
  • JTS LCX circuit design technology minimizes Companding noise

NEWEST FEATURE:

  • The is now not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
  • RF “NO SIGNAL” alert function.
  • AF “MUTE” alert function.
  • Transmitter “LOW BATTERY” alert function.
  • Built in equalizer
  • Power / Antenna cascading output provided.



2nd Generation REMOSET

  • Frequency Data
  • RF Power
  • Sensitivity
  • Low Cut
  • Key Lock
  • User’s Name

Power / Antenna Cascading Output Provided Both power and antenna output can be cascaded for easier installation.
(at least 10 unit can cascaded )



SPECIFICATIONS


Frequency Preparation

  • PLL Synthesized Control

Frequency Setting

  • JTS patented obstacles-free RF REMOSET

Carrier Frequency Range

  • UHF 624-694MHz

Channel

  • Dual

Bandwidth

  • 60~75MHz Wideband

S / N Ratio

  • > 108dB (A)

T.H.D

  • <0.5% @ 1KHz

Chassis

  • 1U standard metal chassis

Preset Channels / Group

  • From group 1 ~ 15 up to 63 interference-free compatible channels.
  • 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
  • User programmable from U1 ~ U6 each of 64 channels reserved.

Display

  • LCD

Display Contents

  • Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch

Sensitivity

  • 6dBμV, at S / N> 80dB

Receiving Mode

  • True diversity

Audio Output Level

  • Maximum 6dBu

Receiving Mode

  • True diversity

Audio Output Level

  • Maximum 6dBu

AF Output Impedance

  • 600Ω

Frequency Response

  • 50Hz ~ 18kHz, with high-pass filter

Squelch

  • Pilot Tone & Noise Mute

Power Supply

  • 100 ~ 240V or 12V DC

Output Connector

  • 2 XLR Balanced Socket
  • 2 Ø6.3mm Unbalanced phone jack

Dimension (m / m)

  • 480mm (W) 45Mmm (H) 260mm (D)

Notes

  • Actual product specifications may vary depending on model and region.
Brands JTS Professional Microphones

Sold as: Each.
