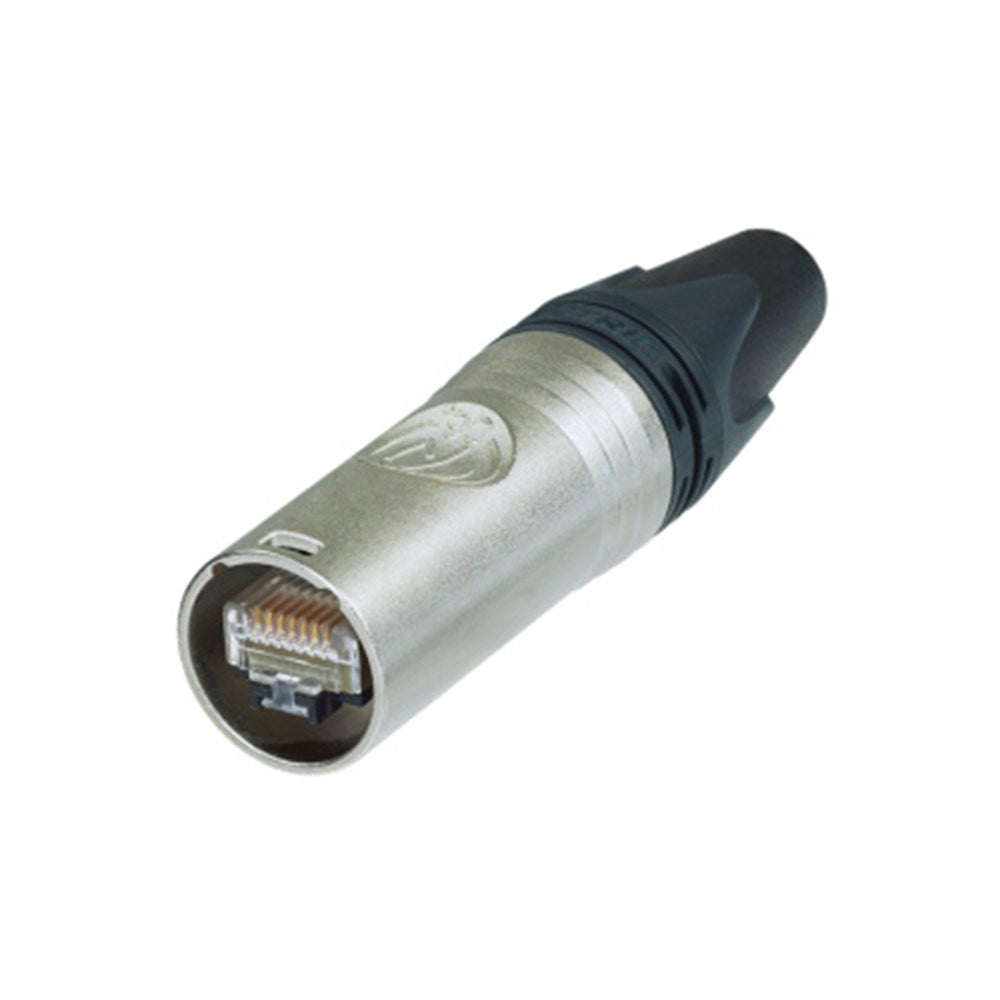

Neutrik CAT6A cable connector, nickel, suits solid AWG26-24, stranded AWG27/4-24/7 (NE8MX6-T)
Couldn't load pickup availability
Product Code: NU-NE8MX6-T
NE8MX6-T
etherCON CAT6A cable connector self-termination, for insulation diameter ≤ 1.1 mm, nickel plating
The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG24/1 (solid) or AWG27/7 - AWG24/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
If the insulation diameter is > 1.1 mm please refer to NE8MX6.
Features & Benefits
• Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
• PoE++ compliant according to 802.3bt Type4
• IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
• Rugged latch lock system million fold proven
• Intermateable with the existing etherCON CAT5 range
• Unique Neutrik chuck-type strain relief
| Brands | Neutrik |
| Connector Type | Ethernet |
Sold as: Each.
Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
