Neutrik CAT6A feedthrough coupler for cable extensions (NE8FFX6-W)
$99.00 AUD
Ask for an ETA
Interested in this item? Send us an enquiry and we'll check availability and the expected arrival with our supplier.
Neutrik CAT6A feedthrough coupler for cable extensions (NE8FFX6-W)
NU-NE8FFX6-W
Couldn't load pickup availability
Product Code: NU-NE8FFX6-W

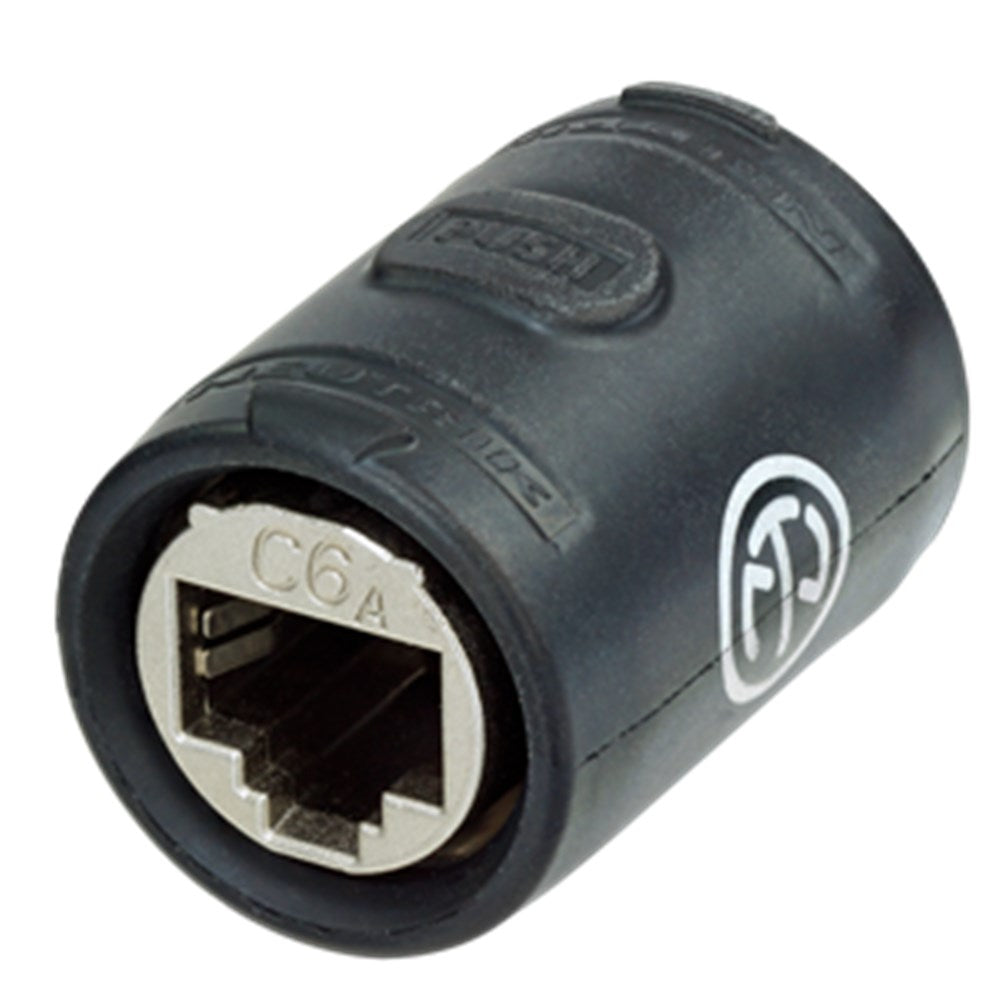

etherCON CAT6A feedthrough coupler for cable extensions.
Features & Benefits
- Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- IP65 protected when mated with NE8MX6*
- Accommodates standard RJ45 plug
- Revolutionary small form factor
- The adapter offers the million-fold proven robust latch lock system
- The adapters are problem solvers for various intermating problems for professional and semi-professional applications
Product
Title
NE8FFX6-W
Connection Type
Adapter
Gender
female
Electrical
Contact resistance
< 200 mΩ
Dielectric strength
> 1.5 kVdc
Insulation resistance
> 0.5 GΩ
Rated current per contact
1.5 A
Transmission performance
CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
Class EA, acc. IEC/ISO/EN rating
Power over Ethernet
PoE+ acc. IEEE 802.3at
Mechanical
Insertion force
≤ 50 N
Withdrawal force
≤ 50 N
Lifetime
> 1000 mating cycles
Wiring
Feedthrough
Locking device
Latch lock
Material
Contact plating
Au
Shell
Rubber (EPDM)
Strain relief
CuZn35Pb2, Tin plated
Environmental
Temperature range
- 30 °C to + 80 °C
Protection class
IP65 (in combination with NE8MX*)
| Brands | Neutrik |
| Adapter Type | Ethernet |
Sold as: Each.
