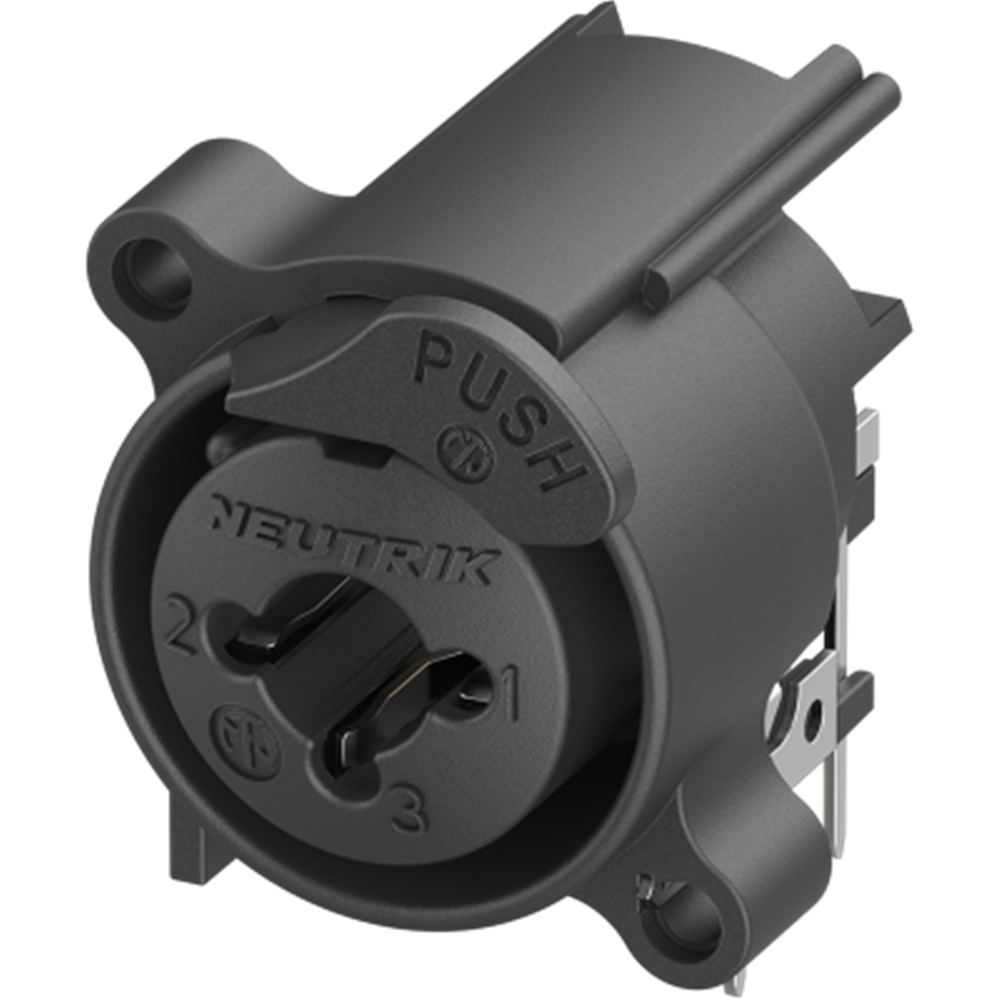

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack in the smallest available XLR housing. Improved ESD performance with asymmetric non-metallic push. The all plastic A-Series offers the most space saving and cost effective design.

• Protection against electrostatic discharge and components due to compound material of the push tab
• Dramatic space saving - 15% over the predecessor Combo
• Combined 3 pole XLR receptacle and 1/4" TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
• Very low conductor capacitance - ideal for digital audio
• Two connectors in one housing - substantial cost, material and labour saving
• Front panel cut-out compatible with Neutrik XLR A Series

• Title - NCJ6FA-H-AE
• Connection Type - Combo
• Gender - female

• Contact resistance - < 10 mΩ (XLR)
• Contact resistance - < 10 mΩ (jack)
• Dielectric strength - 1,5 kVdc
• Insulation resistance  - > 10 GΩ (initial)
• Rated current per contact - 3 A (XLR)
• Rated current per contact - 3 A (Jack)
• Rated voltage - < 50 V

• Insertion force  - ≤ 20 N
• Withdrawal force  - ≤ 20 N
• Lifetime - > 1000 mating cycles
• Panel thickness - max. 3 mm (0.12'')

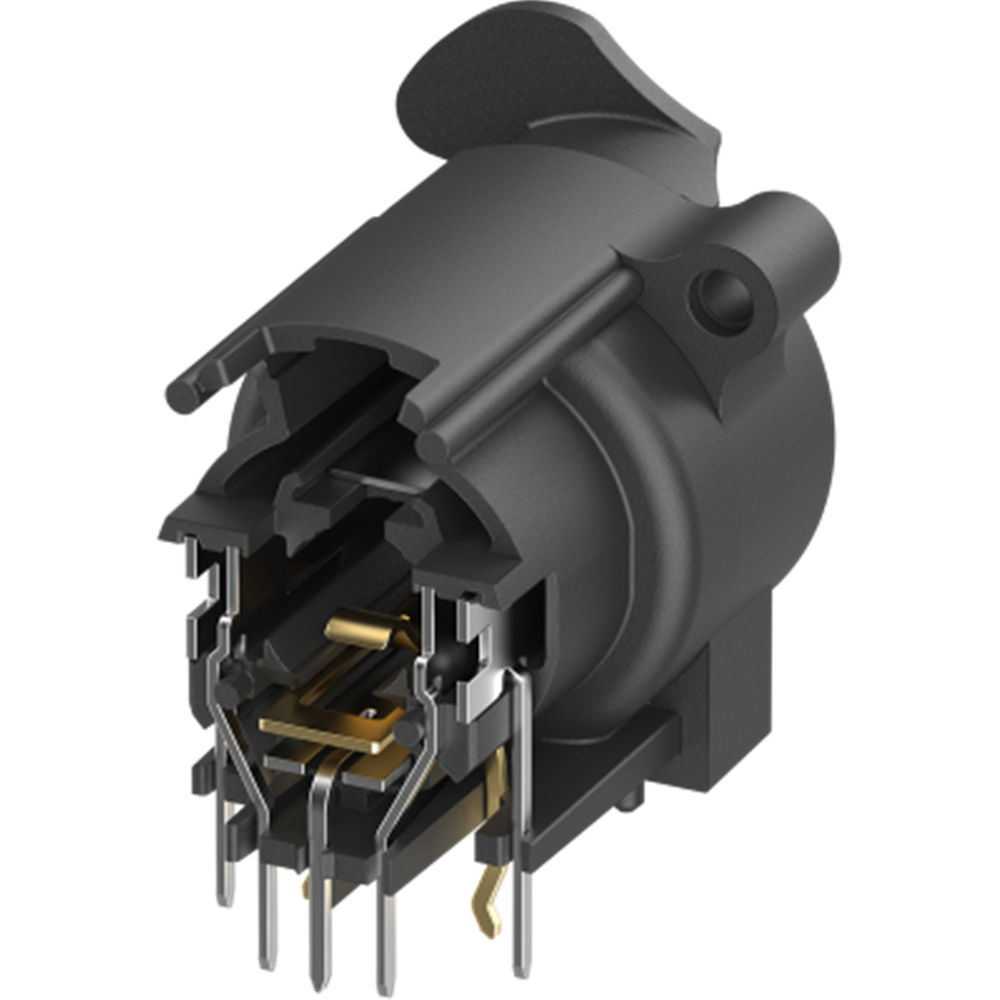

• Wiring - Horizontal PCB mount
• Locking device - Latch lock
• Mounting direction - Rear mounting
• Mounting screw - A-screw

• Contact plating - gal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP
• Contacts - Bronze (CuSn6)
• Insert  - Polyamide (PA66)
• Locking element - Reinforced Polyamide
• Flammability - UL 94 V-0
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
