Neutrik
$1,811.00 AUD

Product Code: NU-SR8A

SR8A

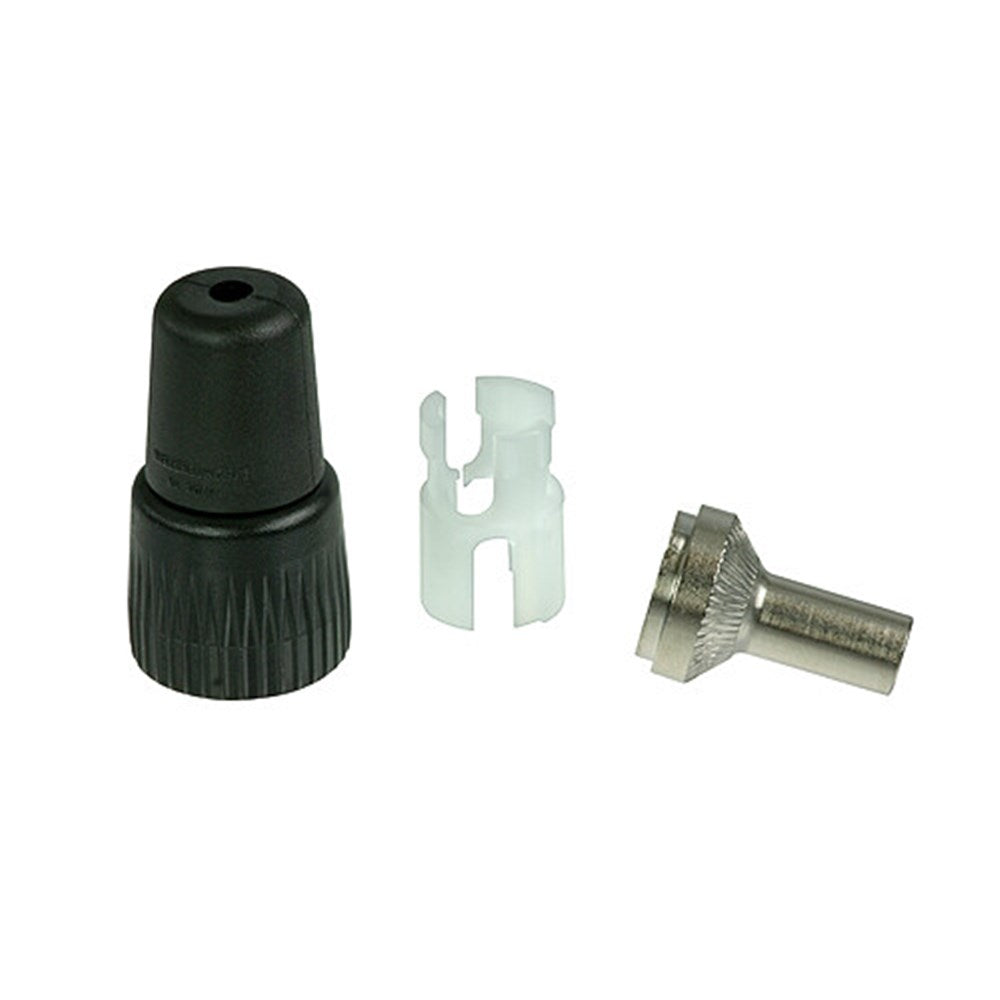

Crimp type strain relief for cable O.D. 3 - 3.8 mm

Special crimp type strain relief establishes an ideal circumferential connection of the cable shield to the connector shell as required by best EMC working practice.

Crimp standard: 5.41 mm / IEC 803

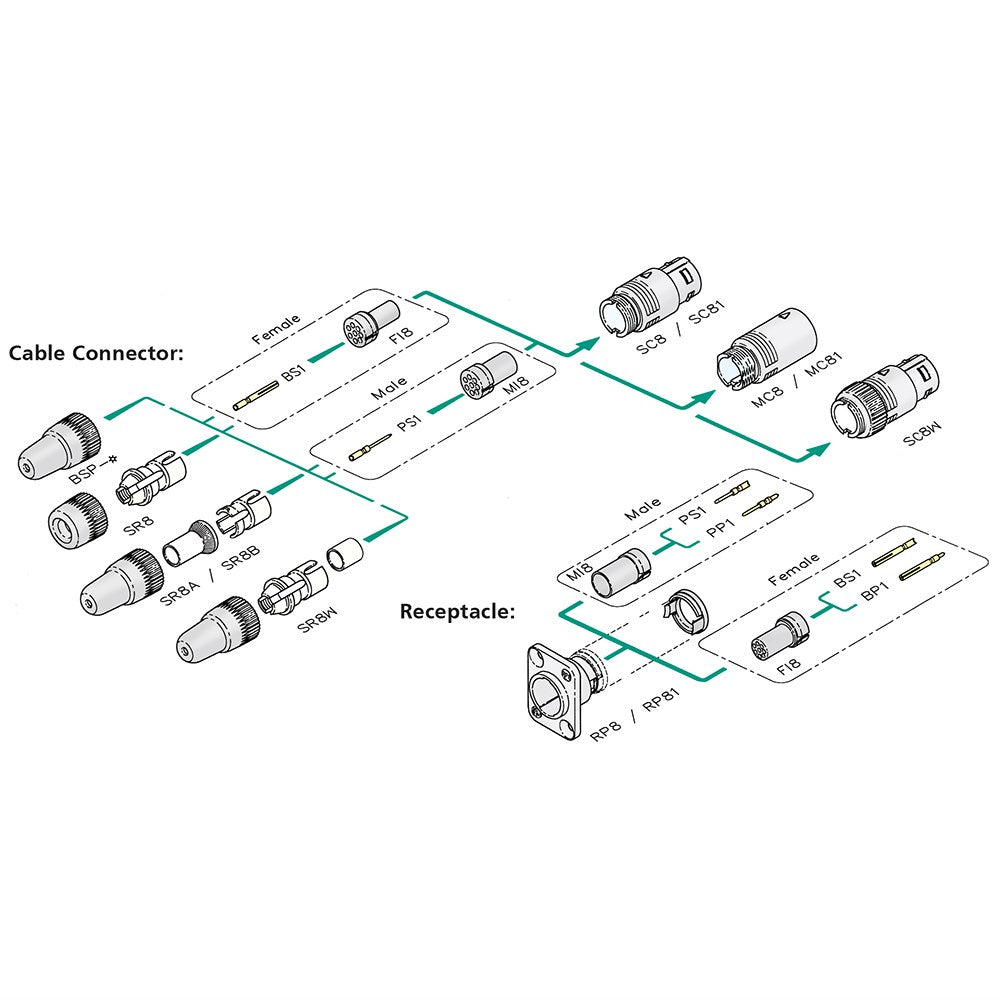

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

Features & Benefits

  • Contact configuration can be selected from 1 to 8 contacts
  • Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
  • Precise and robust all metal housing
  • Push-pull self-locking system

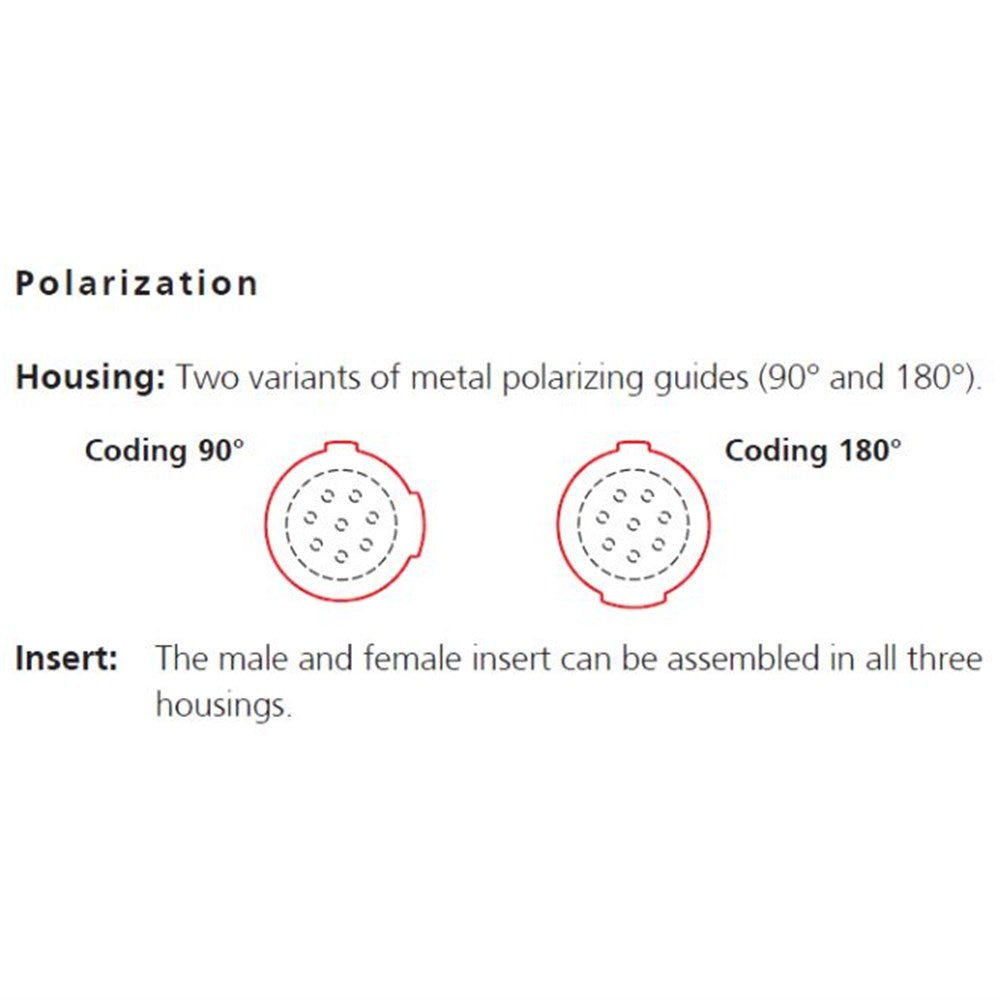

  • Coding system possible (polarization)


  • Product
    • Title    SR8A
    • Connection Type    neutriCON
  • Mechanical
    • Crimp size    5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
Brands Neutrik

Sold as: Box of 500.

Supplier warehouse item. Please allow 3 business days handling time before dispatch, subject to supplier availability.
